Würth 9501006290 - Demounting the Tire

-
7
-
10.3.3. Workplace Requirement
Fig 9 shows the minimum distance (cm) from walls after assembly this auxiliary device. Please choose the
right place to install it.
10.3.4.Assembly
1) Disconnect the tire changer from power supply and air source.
2) Install the column 3 with screw 1 and 2; install the support 5 of the auxiliary arm with screw 4; (Fig 10)
3) Install the help arm 6 with nut 7 and screw 9，then tighen 4、7、8、9（Fig 10 、Fig 11）;
4) Install the Rotating arm (A)、Hexegona
l horizontal arm (B) and Tire lifting roller support (C) separately on the
tire changer;(Fig 12)
5) Install the tire lifting roller (D)、 the switch (E)、tire pressing head (F) and tire pressing roller(G) separately on
the tire changer;(Fig 12)
6) Connect the air hose to the corresponding joint through the rear hole of the body.
10.4. Functional Parts
Fig 12 shows functional parts to the 036 device:
A. Rotating arm connector B. Hexagonal horizontal arm
C. Tire lifting roller s
upport D. Tire lifting roller
E. Raise-fall control assembly
G. Tire pressing roller
10.5. Trial operation
The 036 device must connect with the air compressor, and the air pressure from 8 bars to
10 bars is desirable.
10.6. Operations
Mounting and demounting big flat tire is difficult work. By the help of 036 help arm to
mount/demount the tire from the tire bead will make the operation easier. It is a good
helper for tire changer.
10.6.1. Fixing The Tire
Loosen the bead according to the manual. Clamp the tire from outside, tread the corresponding
Fig 14
Fig 11
7
8
9
6
Fig 10
1
2
3
4
5
Fig 12
A
B
G
E
F
C D
Fig 13
-
8
-
pedal to open the jaws；
Put the tire on the turntable; Tread the corresponding pedal to close the jaws until they near the rim.
10.6.2. Demounting The Tire
-1. Generally speaking, tire is very tight. Loosen the beads with the tire pressing head first (or using
the bead breaker if it too tight to loosen).
Pull out the Hexegonal horizontal arm; let the tire pressing roller above the tire without collision.
Lower the tire pressing roller lower with the switch handle to press the tire. Tread the pedal to rotate
the turntable. Loosen the bead during this procedure. (Fig 13)
Caution：Lubricate the tire pressing head (upper) and the bead before the operation.
-2. Demounting the upper bead
a- Move the mounting head near the edge of the rim, rotate the tire pressing arm to move the tire
pressing block above the tire, press the switch handle to depress the tire, and insert the lifting lever
in the clearance between the tire and the rim, then hang the bead on the mounting head. (Fig 14)
b- Raise the auxiliary arm, rotate the tire pressing head to the opposite. Press the tire with the switch
handle to create enough space.
c- Tread the power supply pedal to rotate the turntable. With the help of the tire pressing head, the
upper tire bead is detached. If you thread the power supply pedal again, you can quickly demount
the tire upper lip.
d- Raise the help arm to move the tire pressing block to its non-working position.

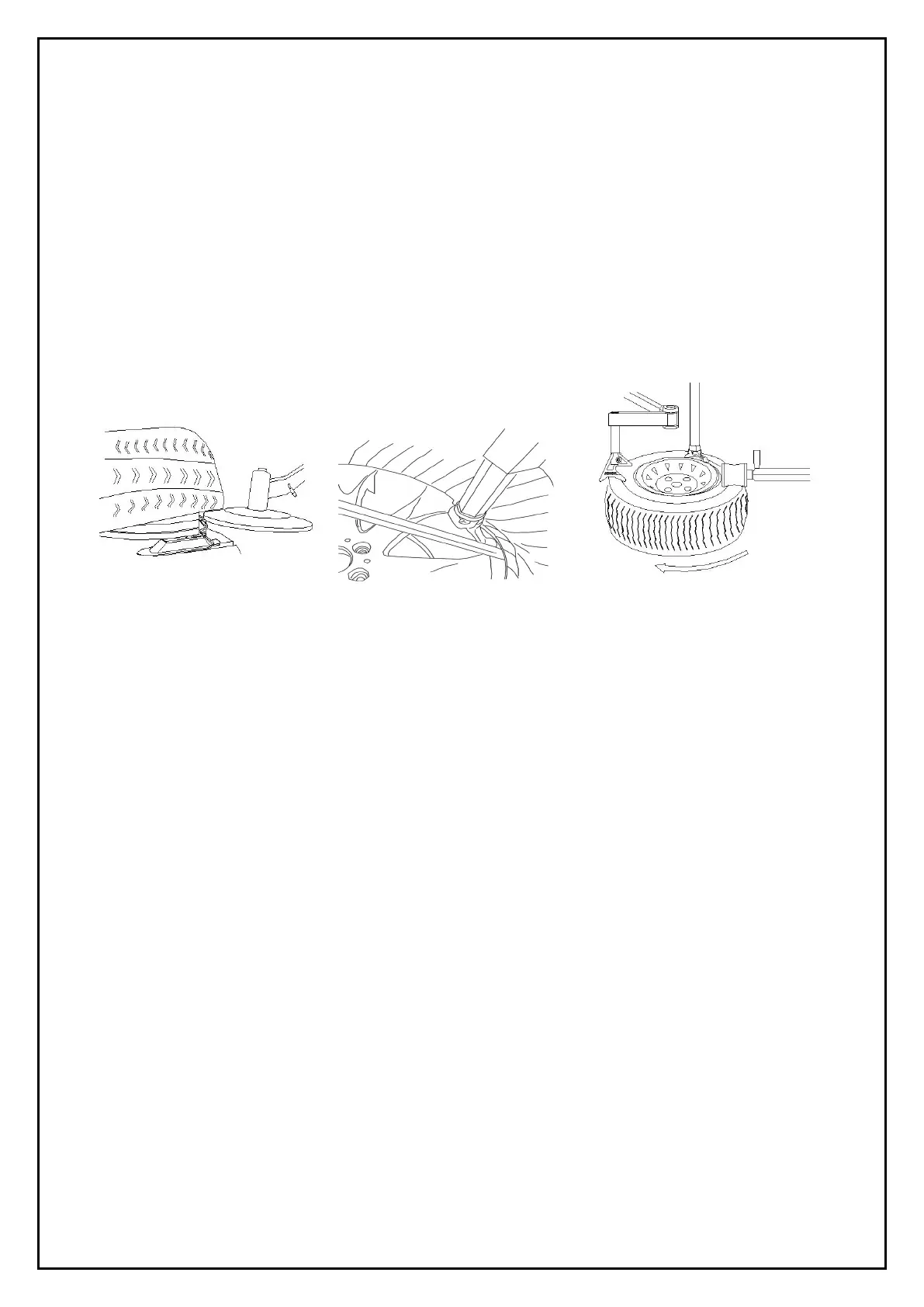

-3. Demounting the bottom bead
Turn the roller support and move it under the tire, but don’t touch it with the rim.；(Fig 15) Tread
the power supply pedal to rotate the turntable, meanwhile, lift help arm gradually to loosen tire and
completely demount the bottom bead. If you thread the power supply pedal again, you can quickly
demount the tire.
Caution: The roller support can’t be used for all tires, some tires need following operation: Move
the mounting head above the rim; Insert the lifting lever in t
he clearance between the bottom tire bead
and the rim, have the tire hung on the mounting head(Fig 12)；Tread the power supply pedal to rotate
Fig 15
Fig 16
Fig 17
