Würth TIG 200 pulse User Manual

19
* Power supply configuration of one welder:
Item TIG 200 pulse
ACB (A) ≥ 40
Fuse (A) 40
Knife switch (A) ≥ 60
Power line (mm
2
)
≥ 4
Note: the breaking current of fuse is twice of its rated working current.
Connected with Argon (see the input wiring drawing)
Connect the one end of the gas hose with the pressure regulator and tighten with the clip and connect
the other end with the gas valve connector on the back panel of the welder.
Connected with work piece (see the input wiring drawing)
Insert the quick plug of the cable into the 【Power output “+” Electrode quick Socket】in the front
panel of the welder and tighten clockwise; The earthing clamp in the another end of the cable
connected with the work piece.

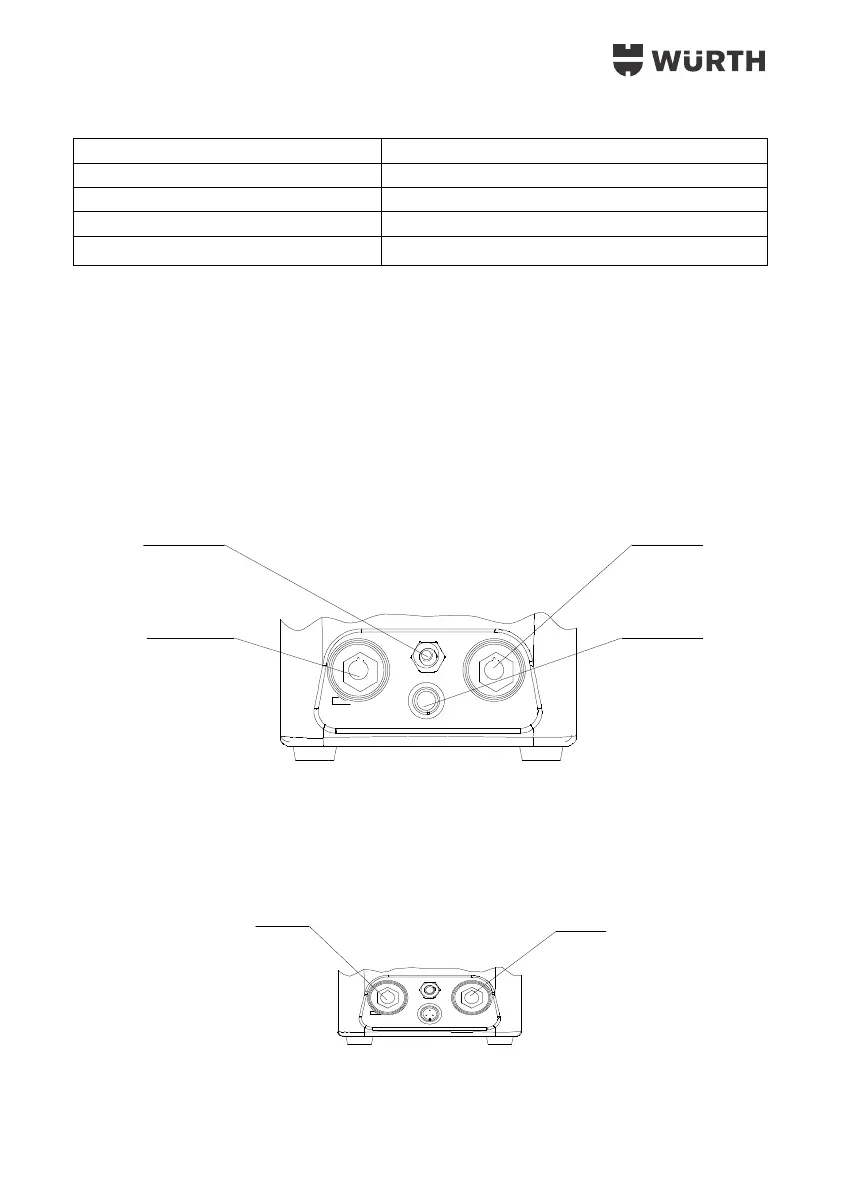

Output wiring drawing
Out put connecting under MMA model
Connecting the cable the “-“ in font panel and tighten up, the other end connecting to the work piece.
“－” connecting work piece
“＋” connecting electrode
Gas connector in Torch
Negative quick connector
Positive quick connector
Control cable in Torch
