18
Welder Installation
Welder Placement
* Welder should be placed in the dry, dustless place, without chemical caustic, flammable, explosive
gas or goods around.
* Avoiding direct sunshine or rainfall, ambient temperature in the range of -10
~
40℃ (water cooling
model, 5
~
40℃).
* Smoke extractors should be installed when working indoor.
Connected with power source (see the input wiring drawing)
Connect the 【Power input wire】in the behind plate of the welder into the 220～240V power source
(electricity network), with circuit breakers and earthing wires; Forbid to input 380V power source into
the welder (380V power source will damage the welder badly); Forbid to input the earthing wire into
the electricity network, otherwise you would bear the results yourself.
Notice: Connect the electricity network with earth, instead of Zero.

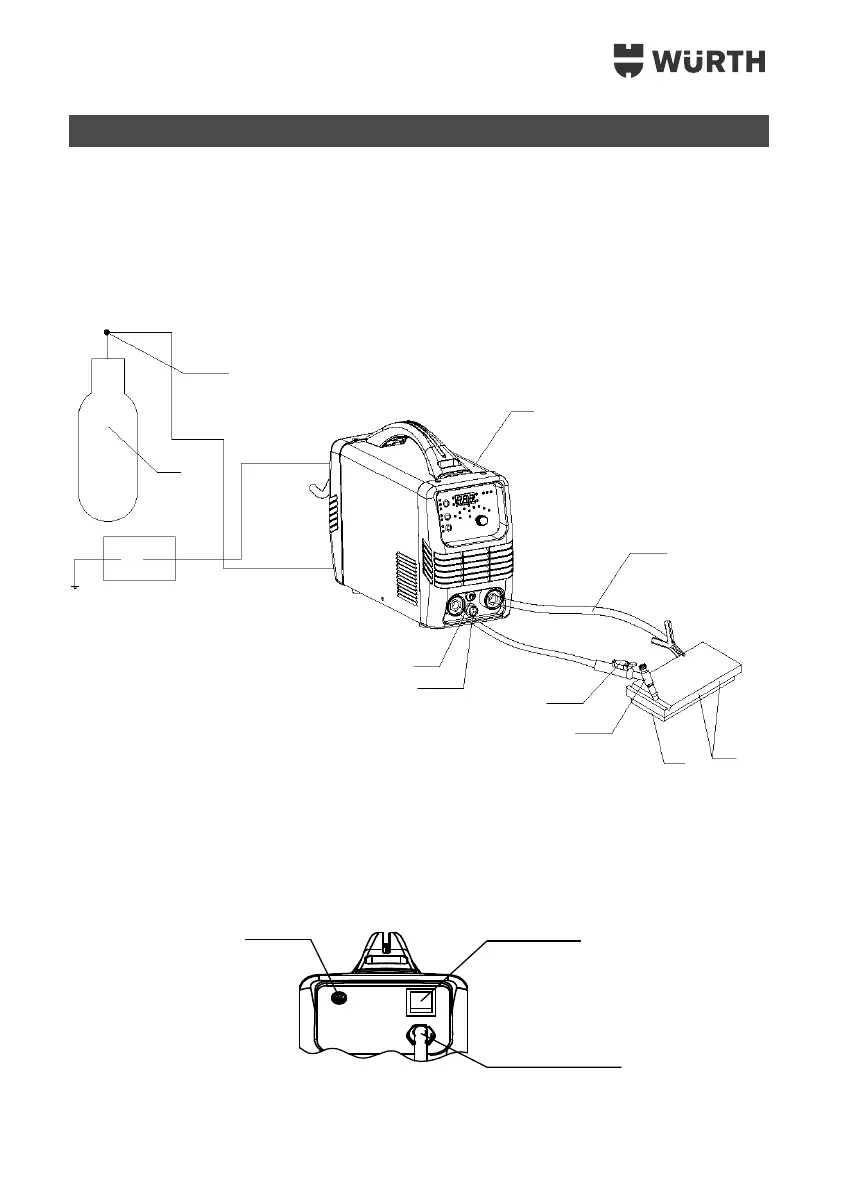

Input wiring drawing
Gas Input
ON/OFF
220V-240V
1 phase
power line
Gas pipe
Argon
220-240V
Gas Regulator
Machine
Connecting gas
Torch control cable
Earth cable
Optional
switch
Torch
Holder
ork
piece
