SPECIFICATIONS
15
Overall System Specifications
Transmission Format:
A/D -D/A Conversion:

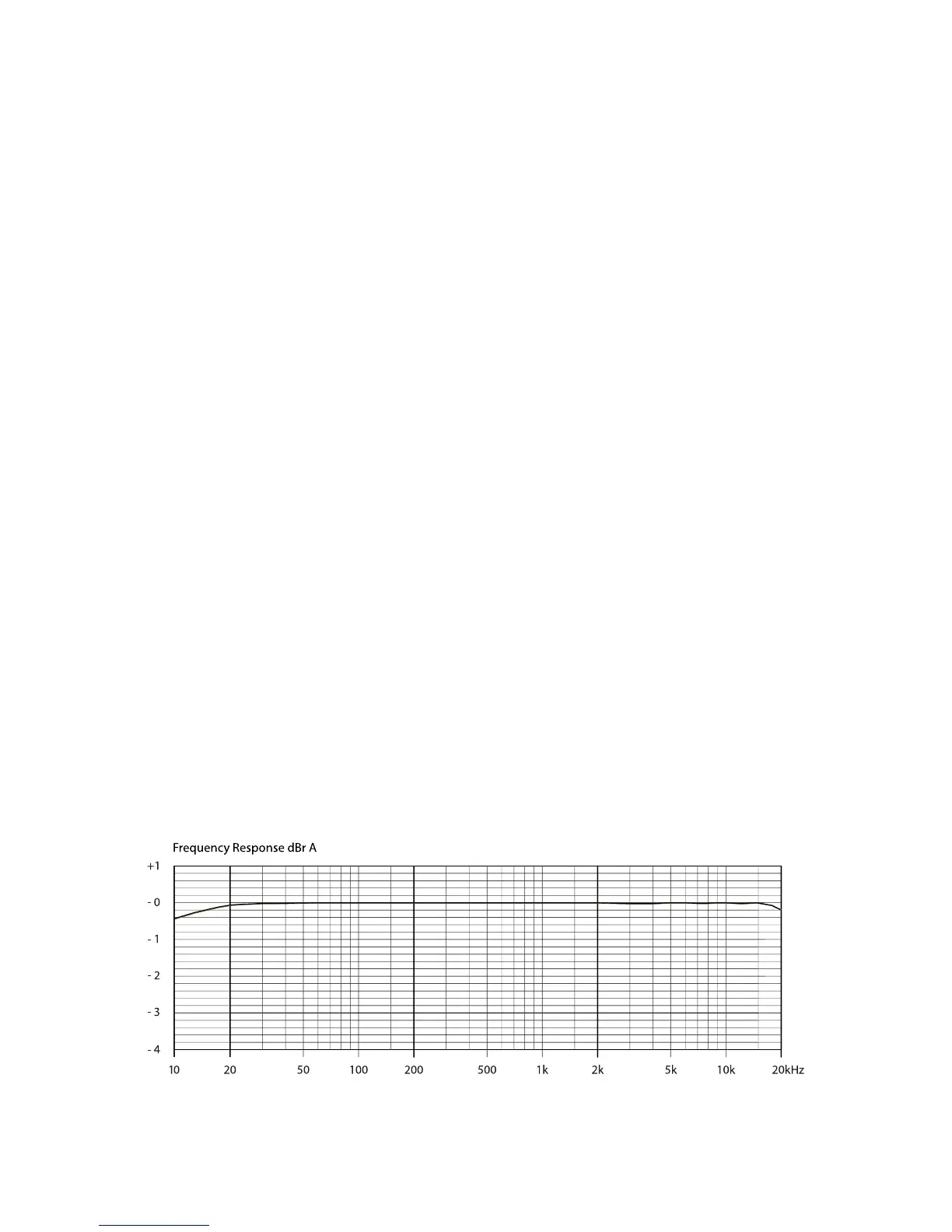

Frequency Response:
Audio Dynamic Range:
Distortion:
RF Carrier Frequency:
Selectable Frequencies:
RF Output Power:
Audio Output Level:
Polarity:
Transmission Range:
FCC Approval:
Operating Temp. Range:
XDR4 Receiver Specifications
Output:
Connectors:
LED Display:
Controls:
Dimensions:
Power Requirements:
Weight:
Housing:
XDT4 Transmitter Specifications
Input Impedance:
Connectors:
Controls:
LED Display:
Dimensions:
Battery Life:
Weight:
Housing:
X2 proprietary digital audio transmission
24-bit Delta Sigma, 128 times over sampling
10 Hz - 20 kHz
>118 dB
0.03% THD
902 MHz to 928 MHz, FSK, dual frequency transmission
Five
15mw
Unity gain with transmitter input
Positive voltage at input yields positive voltage at output
~300 feet line-of-sight (may vary due to local conditions)
Part 15 approved, no user-license required
–18° to +57° C (0° to +135° F)
2.12V RMS (Unbalanced: 1.8kΩ)
1/4" Unbalanced TRS output 1.8kΩ impedance, tip= instrument voicing,
ring= full bandwidth, sleeve= ground XLR Balanced 600Ω
Power On, RF, Channel, Diversity, Battery Life, Audio Level Meter
Power On/Off, Channel UP and Down
1.75” W x 16.2” D x 7.5” H
9V DC 500mA via included AC/DC adapter
2.5 lbs (with rack hardware and antenna installed)
Polycarbonate, impact tested to 300 lbs.
1.3 MΩ (ring) for Instrument, 10 KΩ (tip) for Mic
1/8" TRS locking connector, ring (+, instrument), sleeve (ground), tip (+, mic)
Power On/Off, Channel Select
Five segment - Power On, Channel, Battery Life, Audio Level Meter
2.4" W x .66" D x 4" H
Switching power supply, ~5.5 Hours (9V alkaline)
.3 lbs (with 9V battery installed)
Polycarbonate, impact tested to 300 lbs.
