Viewing Information During Grid Mode
975-0787-01-01 49
Viewing Information During Grid
Mode

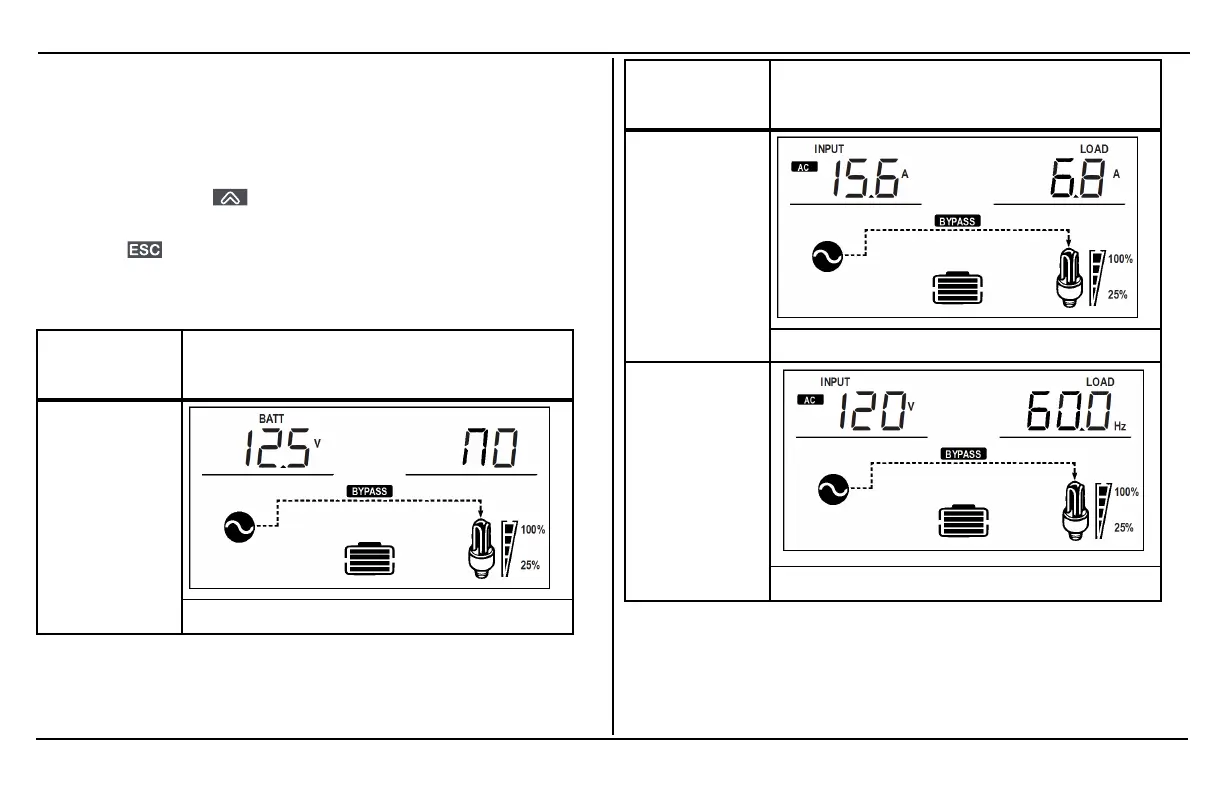

1. The LCD screen displays information related to AC bypass
operation.
2.
Press the Scroll button to move from screen to screen.
Press and hold for three seconds to go back one step.
3.
Press to return to the home screen.
NOTE: After one minute of inactivity in the other screens, the
LCD will go back to the home screen.
Info and
Setting
LCD Screen
Screen 1 of 4 -
Battery Voltage
This is the
home screen.
battery voltage = 12.5V
Info and
Setting
LCD Screen
Screen 2 of 4 -
AC input
current/AC load
current
input current = 15.6A, load current = 6.8A
Screen 3 of 4 -
AC input
voltage/AC
input frequency
input voltage = 120V, input frequency = 60Hz
