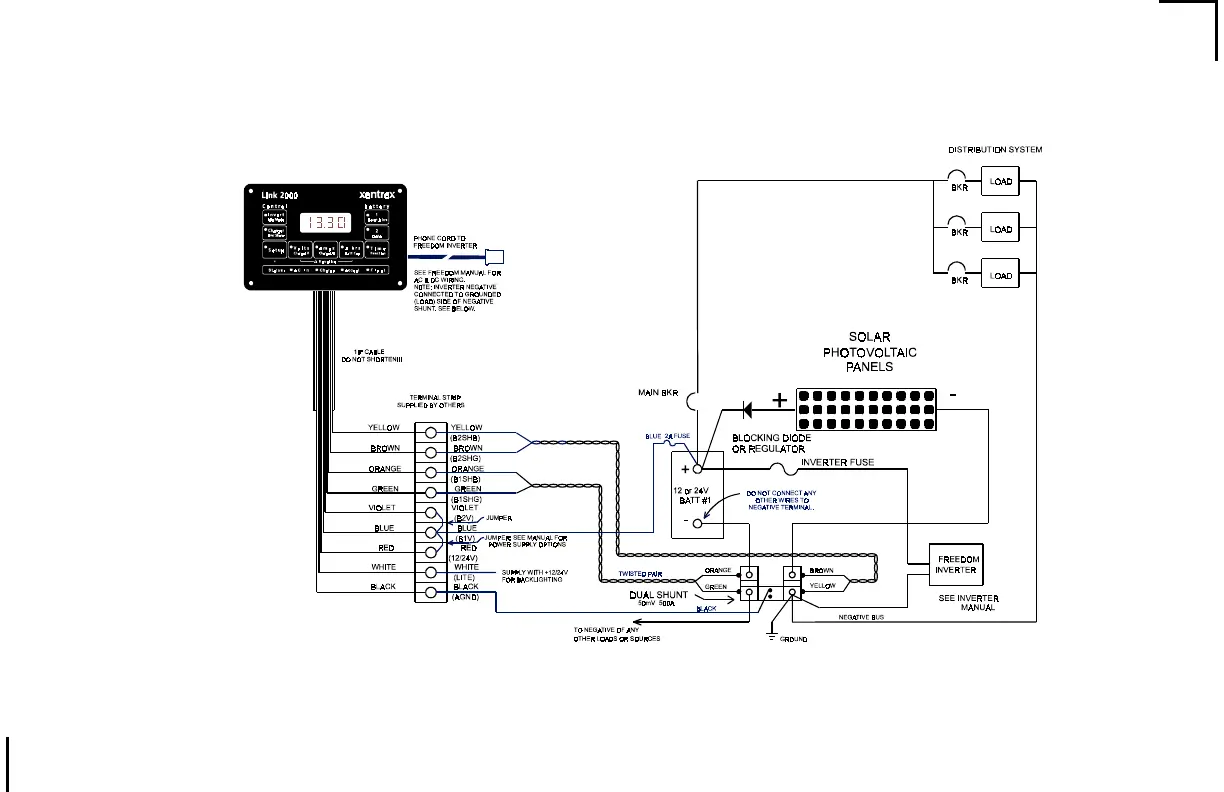

LINK 2000 USED AS A BATTERY/SOURCE MONITOR
WITH A PHOTOVOLTAIC CHARGING SYSTEM
Notes:
1) Shunt rated at 500 Amps max.
2) Link 2000 meter #18 AWG minimum.
Shunt leads are twisted pair.
3) This drawing is not to scale.
4) Color code shown for four pair cable available from Xantrex.
5) Other sources (such as wind generation) may be added
to the system by connecting their negatives to the same point
as the photovoltaic panel negative.
