41

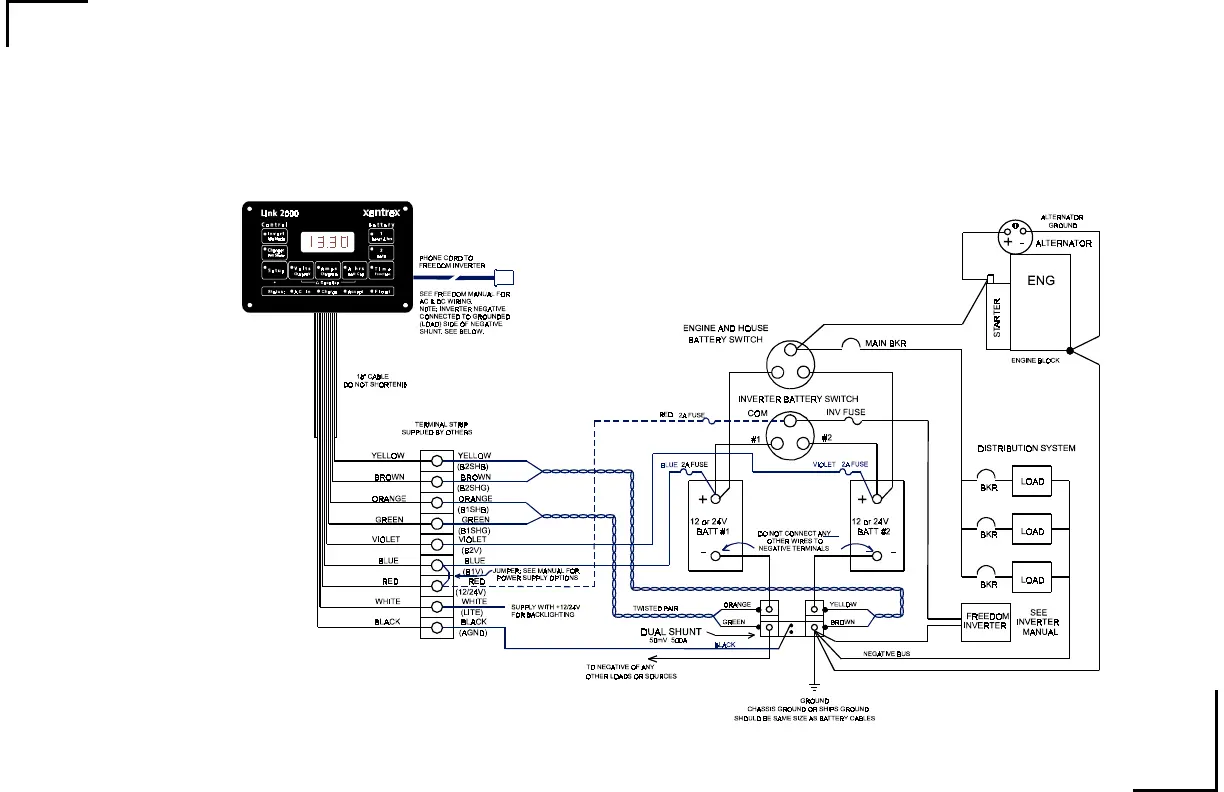

LINK 2000 FOR TWO BA
TTERIES
WITH ENGINE AL
TERNA
TOR CHARGING SYSTEM
Notes:
1) Shunt rated at 500 Amps max.
2) Link 2000 meter #18 AWG minimum.
Shunt leads are twisted pair.
3) This drawing is not to scale.
4) Color code shown for four pair cable available from Xantrex.
5) This drawing shows typical primary wiring. Actual wiring
may vary, wire sizing by others.
41
43
Table of Contents
Table of Contents
2
Introduction and Special Notes
3
Monitor Functions
4
Inverter and Charger Functions
5
Setup
7
Inverter Setup
8
Monitor Setup
9
Functions Setup
10
Data Mode
15
How to Use the Link 2000 Control Panel
16
Ideal Charge Curve
18
Rules for Changing the Charged Parameters
23
Reset / Info Functions
24
High Discharge Rates and Peukert's Equation
25
Typical Peukert's Exponents
27
Error Codes and Troubleshooting
29
Microprocessor Reset Procedure (Resetting to Factor Defaults)
31
Setup and Historical Data Summary
33
Warranty
34
Return Material Authorization Policy
35
Return Procedure
36
General Notes
37
Specifications
