975-0526-01-02 23
Installing the Truecharge 2 Battery Charger

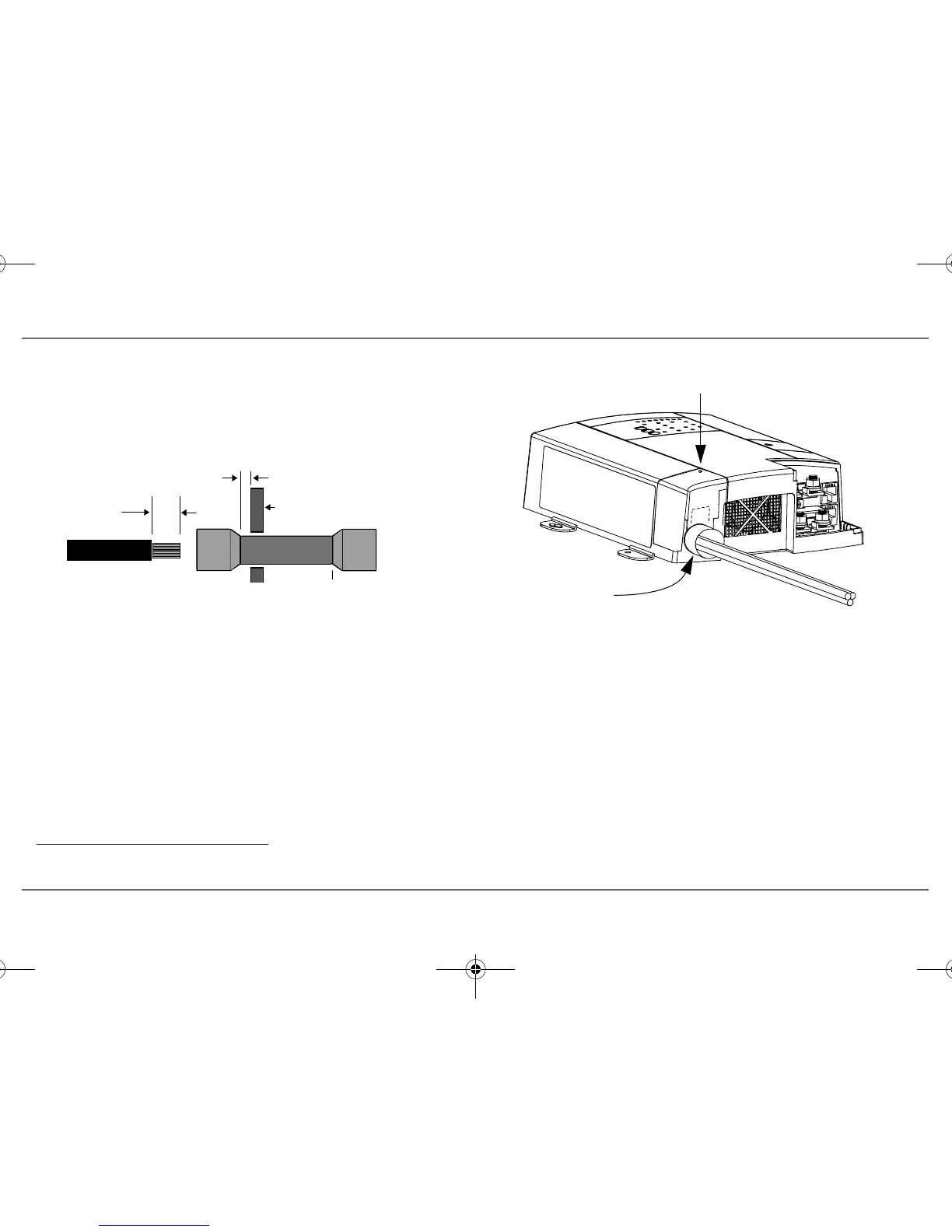

c) Insert one wire into one end of the butt-splice, until the insulation
hits the internal metal crimp section, insert the butt-splice into the
crimper
1
, and crimp firmly. The proper location for the crimp is
approximately 1.6 mm (1/16 in.) past where the butt-splice insu-
lation tapers down as shown.
d) Repeat Step c for the other end of the butt-splice.
10. When all connections are completed, push the wiring and connectors
inside the AC wiring compartment.
11. Place the strain relief on the AC wiring access hole.
12. Install the wiring compartment cover to fasten the strain relief and
tighten the screw on top to secure the cover. Do not over-tighten.
13. If applicable, install the optional remote panel.
14. Connect the AC supply wiring from the charger to the AC panel
feeding the charger.
15. Connect the line conductor to the breaker, the neutral to the neutral
bus, and the ground to the ground bus.
16. Secure cables in place using tie-wraps or cable straps according to
electrical codes.
1.Use crimper (product number CT-160) from www.panduit.com.
1/16 “
CRIMP TOOL
STRIP 5/16”
screw to secure the
wiring compartment
cover
AC wiring access hole
with strain relief
TC2 204060 Series BattChg Owners Guide.book Page 23 Friday, July 8, 2011 11:44 AM
