Inverter/Charger Installation
2–32 975-0239-01-01
This manual for use by qualified personnel only

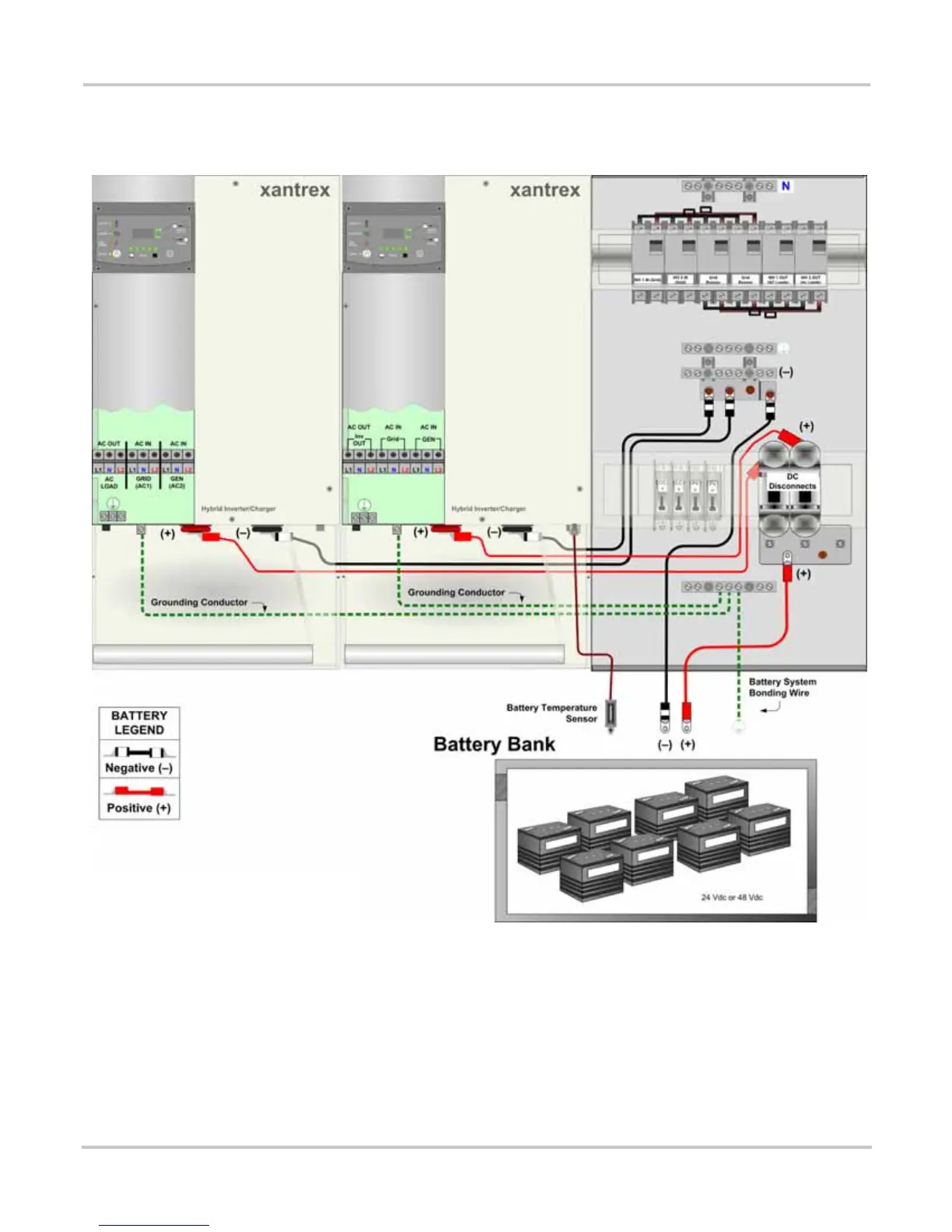

Figure 2-27
DC Connections to Dual Inverters
Torque connections to the
inverter DC terminals to
10-15 ft/lbs.
Actual cable requirements may vary.
AC Breakers shown in this illustration
represent the breaker arrangement for a
single AC source.
Torque connections to the battery
terminals according to the battery
manufacturer’s recommendations.
To Next Page
