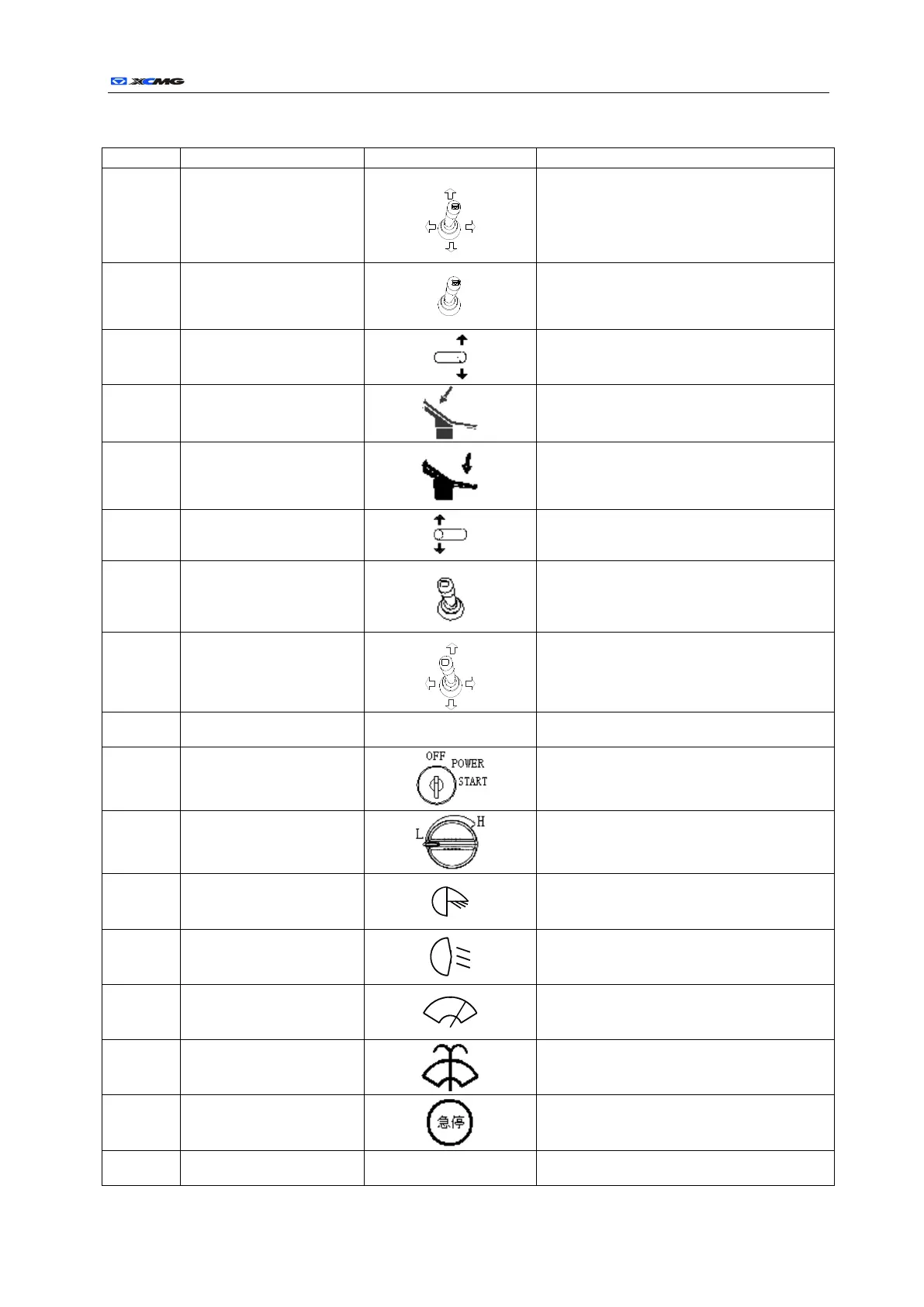

List 1-4 Illustrated signal
Serial No.
Name
Signal
Function
1
Left operational lever
Control the arm stretching and retracting and the
rotation of the up carriage
2
Horn switch (on top of left
operational lever)
Enable the horn to sound after being pressed
3
Left treading control lever
Control the advancement and reversing of leftside
crawler
4
Left treading pedal
Control the advancement and reversing of leftside
crawler
5
Right treading pedal
Control the advancement and reversing of
rightside crawler
6
Right treading control lever
Control the advancement and reversing of
rightside crawler
7
Boosting switch (on top of
right operational lever)
After being pressed, the max.excavation force can
be obtained in short time
8
Right control lever
Control the rising and descending of moving arm
as well as excavation and unload of bucket
9
Monitor
Operation, indication and warning(for details, see
the latter introduction)
10
Key switch of engine
Start, run and stop the engine
11
Engine speed knob
Adjust the engine speed
12
Switch for arm lamp
Control the working lamp of moving arm
13
Switch for working lamp
Control the right working lamp
14
Switch for wiper
Control the wiper of front window of cab
15
Switch for washer
Control the washer of front window of cab
16
Button for emergency cutoff
Emergency cutoff of engine
17
Cigarette lighter
Control the lighting
