XE210/XE230/XE260C Hydraulic Excavator Operating and Maintenance Manual 49
Cab

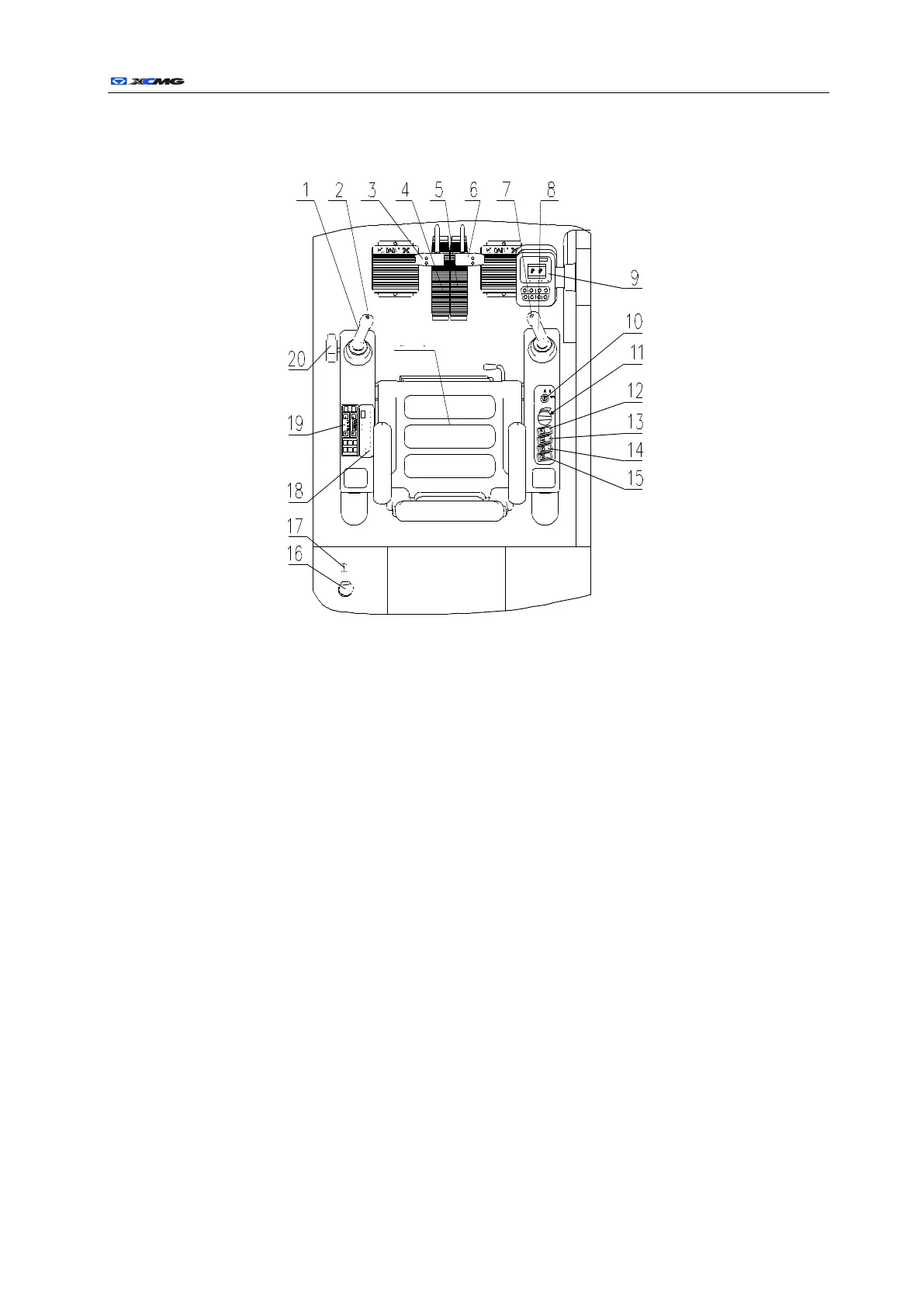

1 left operational lever 2 horn switch(above left operational lever) 3 left treading control lever
4 left treading pedal 5 right treading pedal 6 right treading control lever
7 boosting switch (above right operational lever) 8 right control lever 9 monitor
10 key switch of engine 11 engine speed knob 12 switch for arm lamp
13 switch for working lamp 14 switch for wiper 15 switch for washer
16 button for emergency cutoff (optional attachment) 17 cigarette lighter 18 switch for radio
19 control button for air conditioner 20 safe locking lever
Fig.1-27 layout of operational and indicating parts in cab
