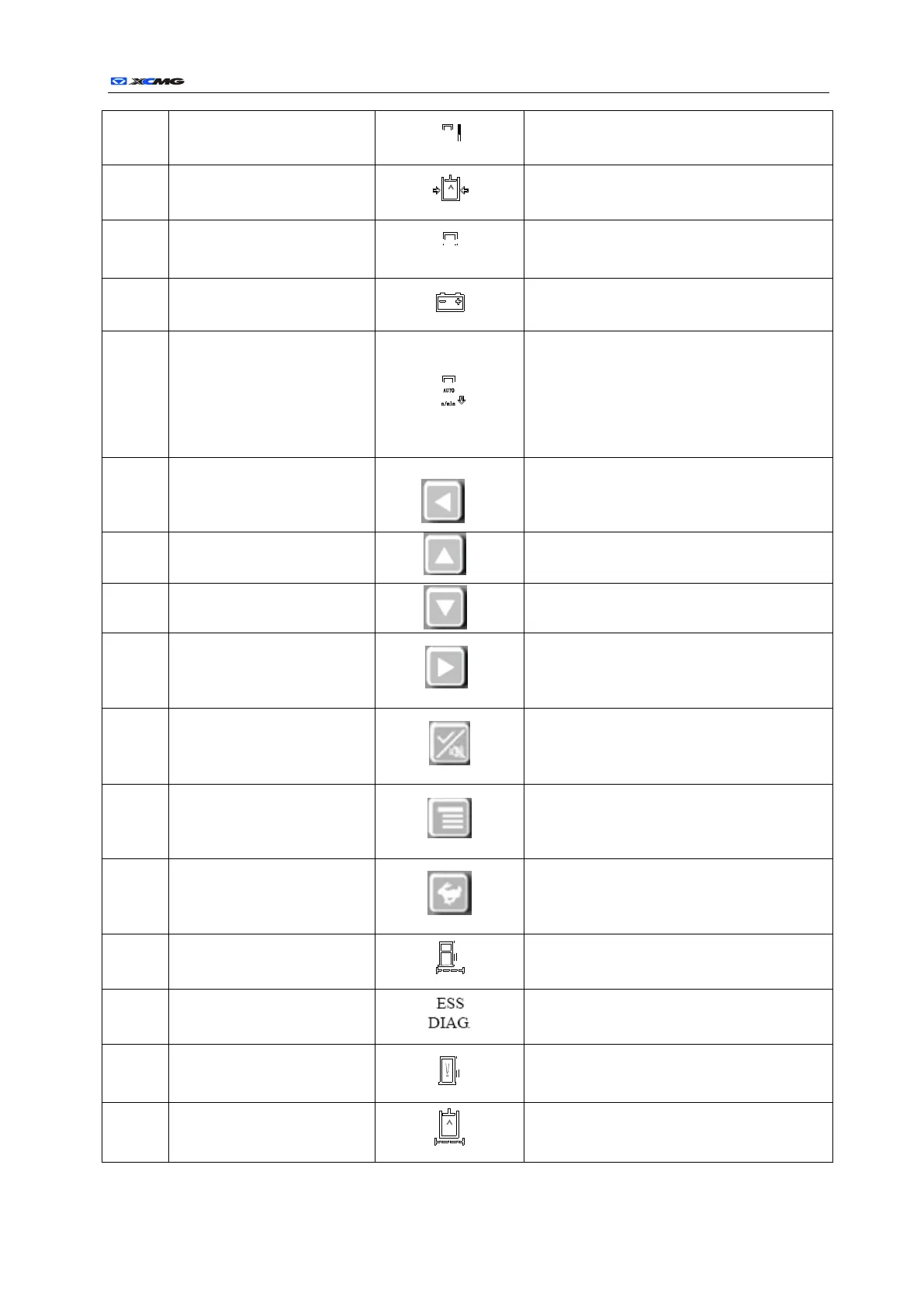

XE210C Hydraulic Excavator Operating and Maintenance Manual 53
4
Engine coolant high temperature
alarm
On for high temperature of engine coolant
5
Oil pressure alarm
On for low pressure of engine oil
6
Engine preheat indicator
On for the process of engine preheat
7
Charge alarm
On for abnormal engine battery charge
8
Idle button
When the machine is started, automatic idle
speed is set by default. Being pressed once, the
automatic idle speed is canceled. Being pressed
again, the automatic idle speed is restored.
9
Button for choosing work mode
When the machine is started, mode S works. Being
pressed once, circular options is made in order of
S→H→B→L→S
10
Up/ button of increase
Being pressed, cursor move upward once after
entering the main menu catalogue
11
Down/ button of decrease
Being pressed, cursor move downward once after
entering the main menu catalogue
12
Button for choosing work mode
When the machine is started, mode S works. Being
pressed once, circular options is made in order of
S→L→B→H→S
13
Muffling/identificating button
Being pressed, warning sound stops;
Confirm the cursor column after entering the main
menu
14
Button for menu/changing screen
Being pressed once, it shows the optional indication
interface in order of “main menu→chart→main
menu” in cycle
15
Fast/slow treading button
Being pressed once, it shows treading mode will be
chosen circularly in order of “fast→slow→fast”
16
Fuel filter blockage alarm
On for a blockage in the fuel filter
17
Malfunction indicator
ESS malfunction indicator
18
Fuel oil level alarm
19
Leading hydraulic filter blockage
alarm
On for leading hydraulic filter blockage
