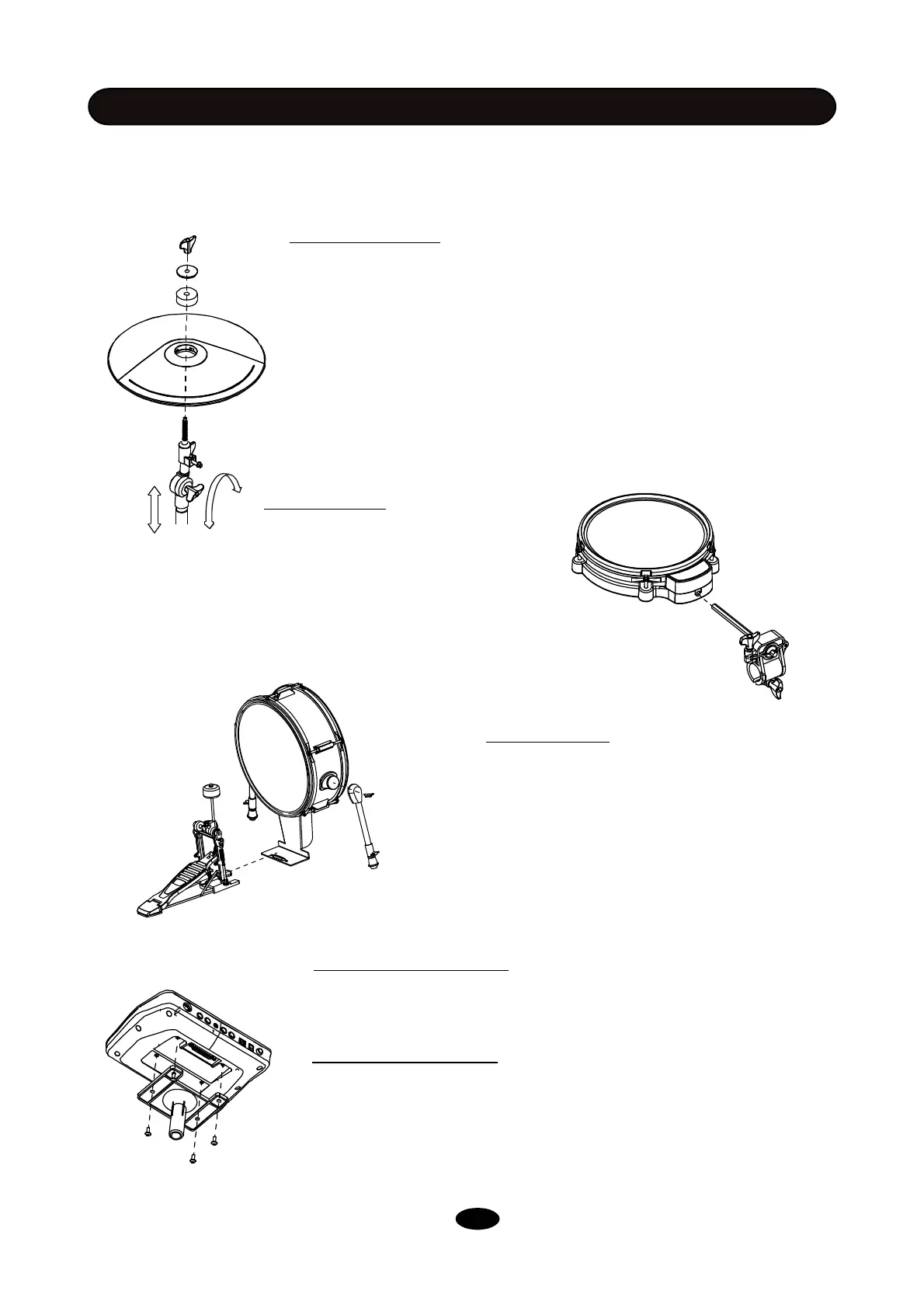

Cymbal Installation
1.
Remove the Wing Nut, Washer and Felt ① from the top
of the rod.
2.
Put Cymbal Pad② into the Rod③, then place back
parts removed in the step 1. Fasten the wing nut but not
too tightly. It allows the pad a little bit wobbling like real
acoustic cymbal.
6
Tom Installation
1.
Loosen Pad Connector①, insert
Hex Rod②, and tighten Pad
Connector①.
2. Loosen the wing nut under Drum
Pad③, and insert it to Hex Rod②.
3. Adjust to suitable position and
fasten wing nut under Drum Pad
1.
Install Kick Legs① on both sides
and then fasten the wing nut.
2.
Insert Kick Pedal② to Kick Drum,
adjust the pedal to suitable position and
then fasten wing nuts on the pedal.
Kick Installation
①
②
③
①
②
1.
Align holes in the sound module and the model mount then insert
screws and fasten it.
2. Insert rod of the model mount into the clamp, then tighten the wing nut.
Sound module Installation
Finalizing the Installation
After install all components, fine adjust the arm, clamps and rods to the
best position you desire.
Electronic Connection
Connect the trigger connector cable plug to the bottom of the sound
module, and then connect all cable heads according to their name tags.
INSTALLATION
DRUM INSTALLATION - 2
①
②
③
