CARE
30 XES SYNERGIX 8850 PRINTER OPERATOR MANUAL

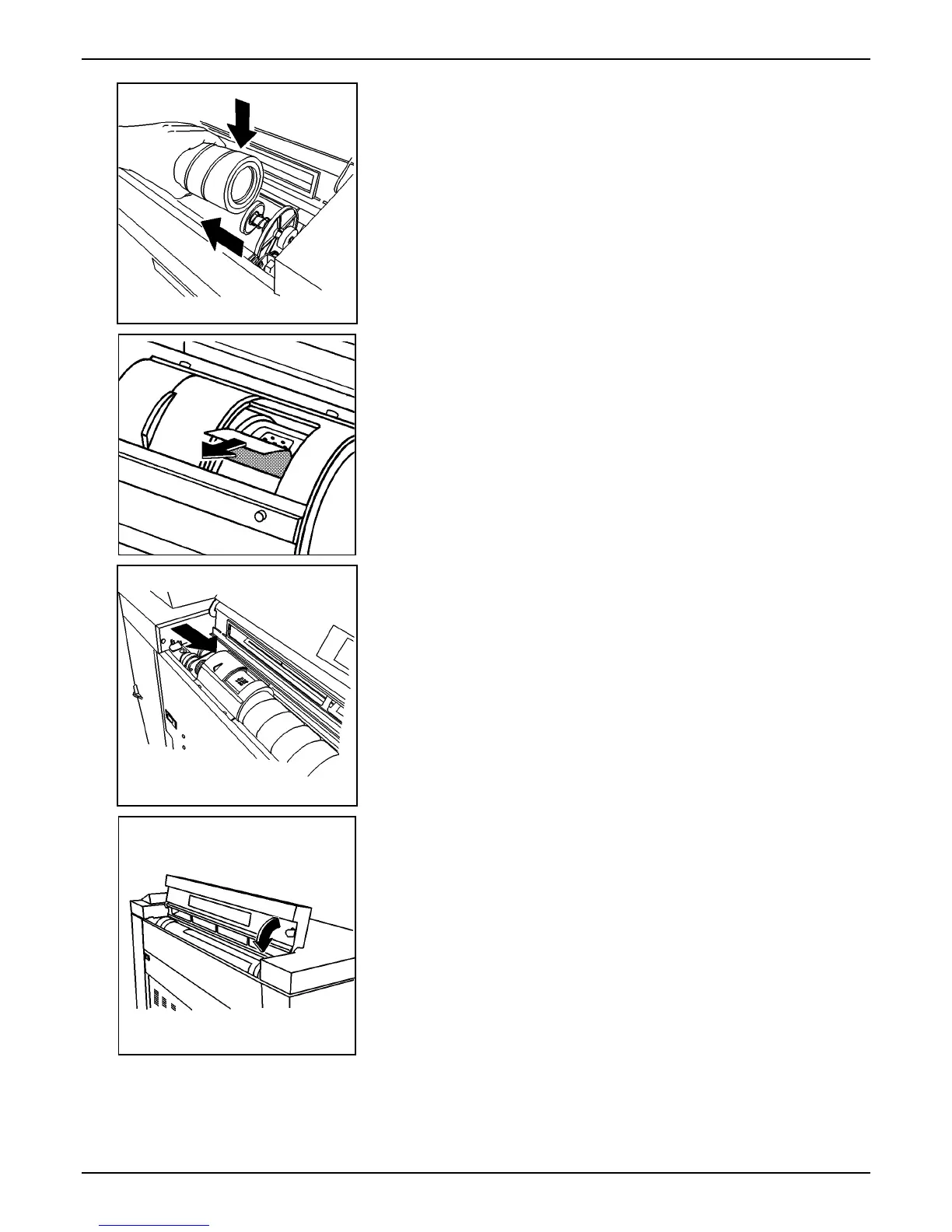

12. Lower the toner cartridge into position while pushing the
plunger to the left.
13. Release the plunger.
14. Rotate the toner cartridge back and forth until the cartridge
locks into position.
CAUTION: Remove the cover tape carefully. Do not remove the
clear, perforated seal.
15. Remove the cover tape from the toner cartridge.
• Do not remove the seal under the tape.
16. Slide the gold cartridge dispenser patch cover to the right to
conceal the cartridge patch.
• Ensure that the cartridge patch is completely covered.
17. Close the toner supply access cover.
