PROBLEM SOLVING
40 XES SYNERGIX 8850 PRINTER OPERATOR MANUAL

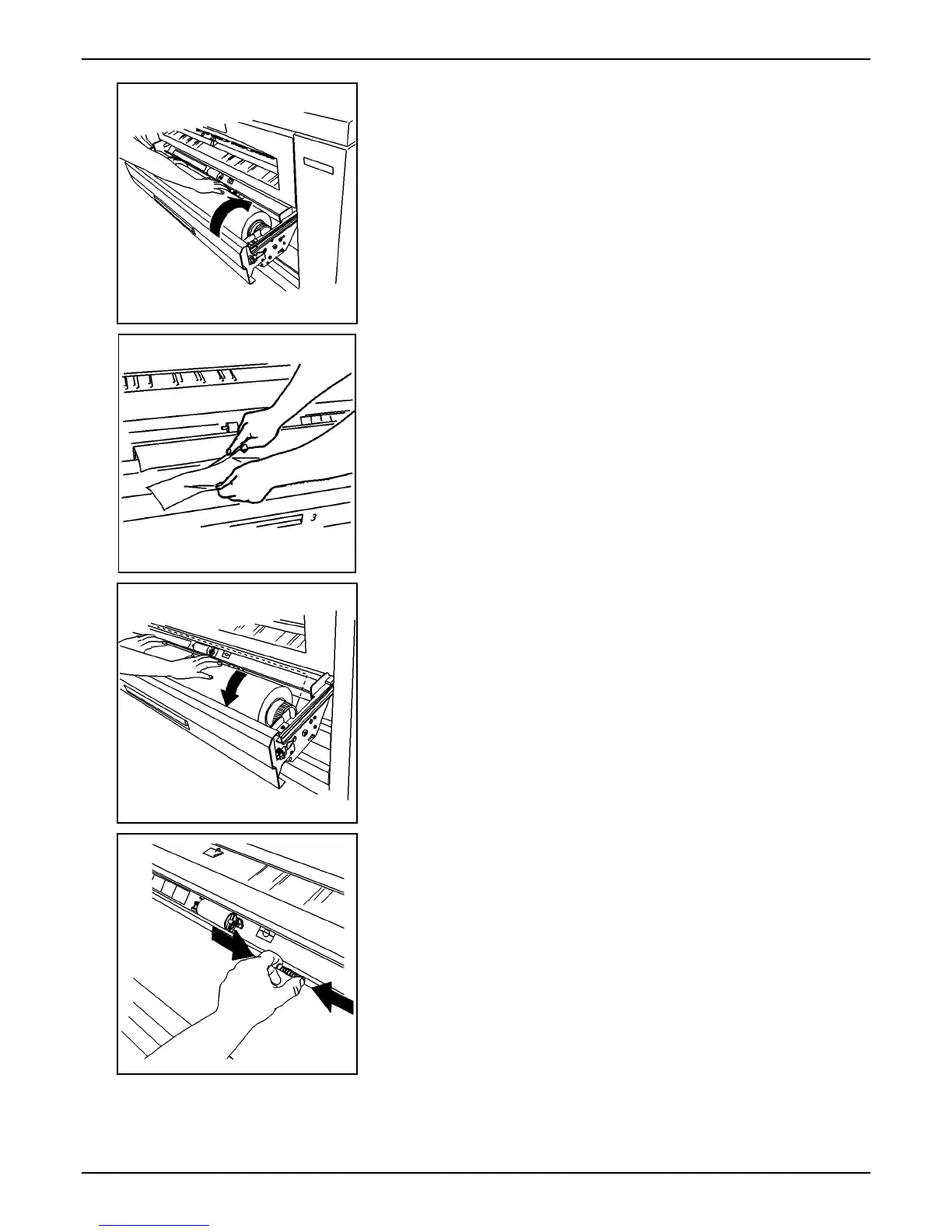

5. Rotate the media roll to wind the end of the media onto the
roll.
6. Examine the lead edge of the media for tears.
• If the lead edge of the media is torn, folded, creased or
uneven, trim the lead edge.
7. Rotate the media roll to feed the media under the baffle and
beyond the registration window.
8. Squeeze the baffle release and lower the baffle until it locks in
place on both sides.
To Next Page
