Xerox® Security Guide for Office Class Products: AltaLink®  VersaLink®
November 2018 Page 33
AltaLink® C8030 / C8035 / C8045 / C8055 / C8070

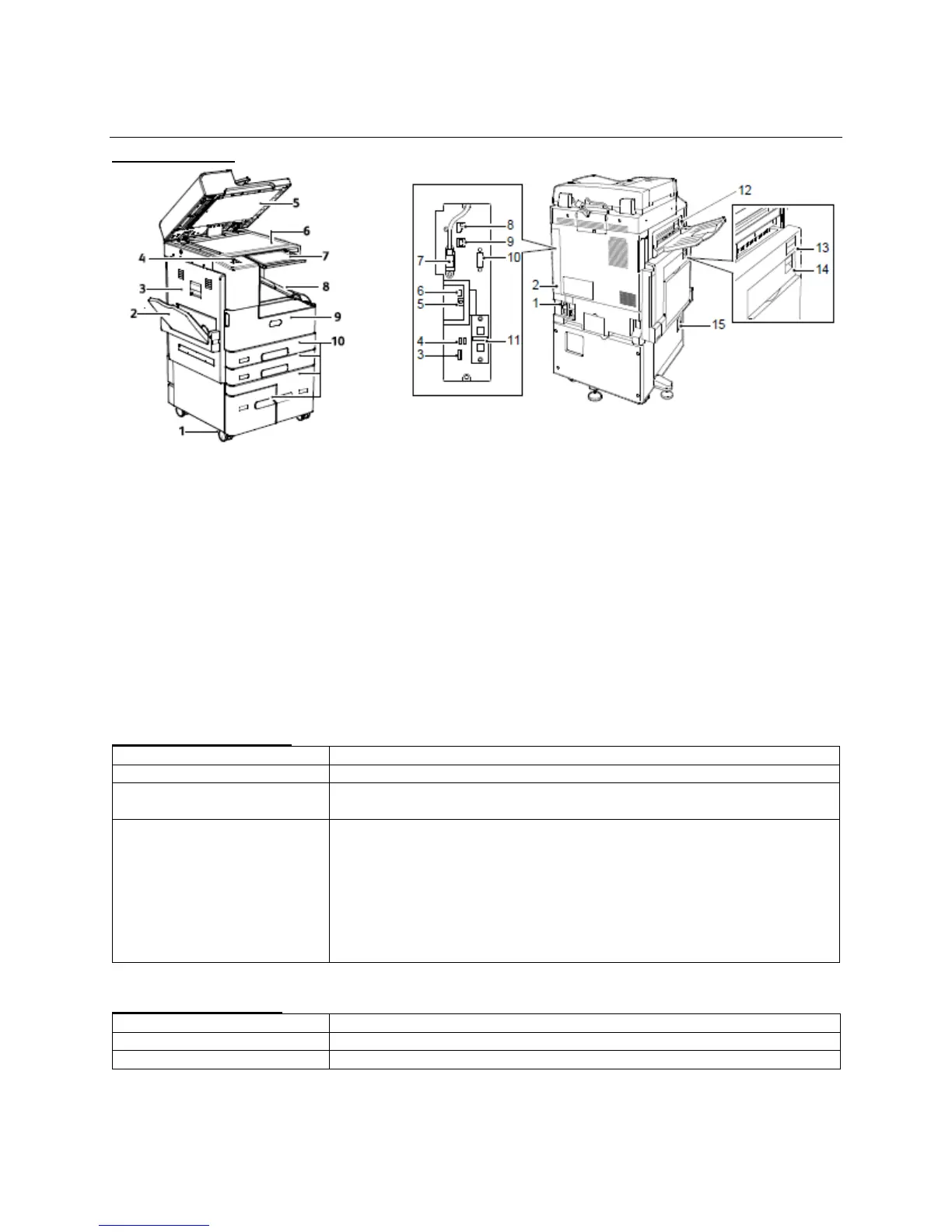

Physical Overview
1. Leveler Foot
2. Tray 5
3. Left Tray
4. USB Port
5. Document Cover
6. Document Glass
7. Power/Wake Button
8. Control Panel
9. Center Output Tray
10. Center Bottom Tray
11. Main Power Switch behind
Front Door
12. Trays 1-4
13. Locking Casters
1. Circuit Breaker
2. Rear Right Cover
3. USB Memory Card Connections and SIM Slot
4. USB Port, Type A
5. USB Port, Type B
6. Status Indicator
7. Side 2 Scan Cable
8. Data Port, for service only
9. Ethernet Connection
10. Foreign Device Interface (optional)
11. Fax Connections (optional)
12. Door D Release Lever
13. Door A Release Lever
14. Door B Release Lever
15. Door C Release Lever
Security Related Interfaces
Ethernet
10/100/1000 MB Ethernet interface.
Optional Wi-Fi Dongle
Supports optional 802.11 Dongle.
Rear USB 3.0 (Type B)
USB target connector used for printing.
Note: This port can be disabled completely by a system administrator.
Front Panel Optional
USB2.0 (Type A) port(s)
Users may insert a USB thumb drive to print from or store scanned files
to. (Physical security of this information is the responsibility of the user
or operator.) Note that features that leverage USB ports (such as Scan
To USB) can be disabled independently or restricted using role based
access controls.
Firmware upgrades may be applied using this port.
Connection of optional equipment such as NFC or CAC readers.
Note: This port can be disabled completely by a system administrator.
Encryption and Overwrite
Encryption
AES-256
TPM Chip
(Not Currently Supported)
Media Sanitization
Immediate and On-Demand Image Overwrite.
