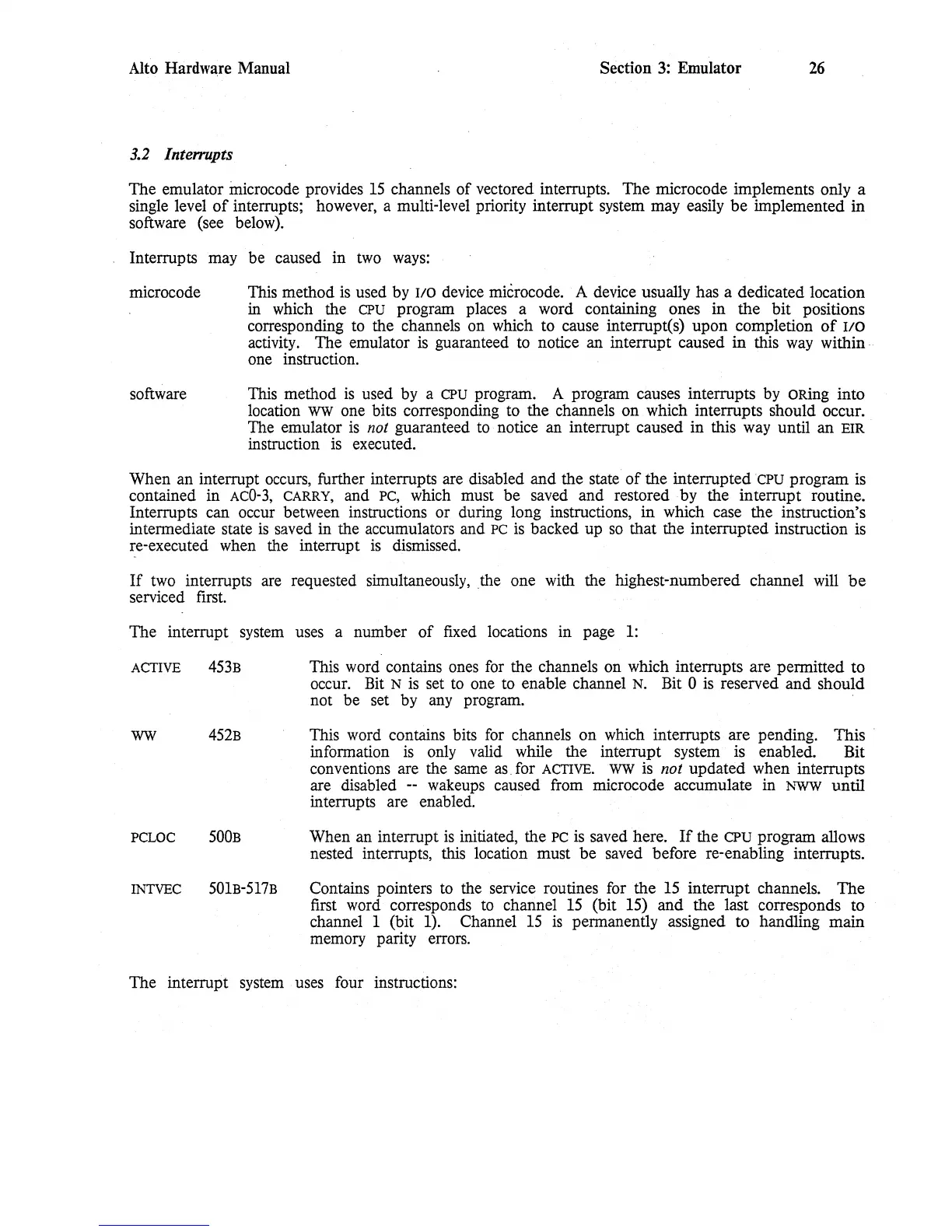

Alto Hardware Manual Section
3:
Emulator
26
3.2
Interrupts
The emulator microcode provides
15
channels of vectored interrupts. The microcode implements only a
single level
of
interrupts; however, a multi-level priority interrupt system may easily be implemented in
software (see below).
Interrupts may be caused in
two
ways:
microcode
software
This method
is
used by
I/O
device microcode. A device usually has a dedicated location
in which the
CPU
program places a word containing ones in the bit positions
corresponding
to
the channels on which to cause interrupt(s) upon completion
of
I/O
activity. The emulator
is
guaranteed
to
notice an interrupt caused in this
way
within
one instruction.
This method
is
used
by
a
CPU
program. A program causes interrupts
by
oRing into
location
ww
one bits corresponding to the channels on which interrupts should occur.
The emulator
is
not guaranteed
to
notice an interrupt caused in this
way
until an
EIR
instruction
is
executed.
When an interrupt occurs, further interrupts are disabled and the state
of
the interrupted
CPU
program is
contained in
ACO-
3,
CARRY,
and
PC,
which must be saved and restored by the interrupt routine.
Interrupts can occur between instructions or during long instructions, in which case the instruction's
intennediate state
is
saved in the accumulators and
PC
is
backed up
so
that the interrupted instruction is
re-executed when the interrupt
is
dismissed.
If
two
interrupts are requested simultaneously,
the
one with the highest-numbered channel
will
be
serviced first.
The interrupt system uses a number
of
fixed locations in page
1:
ACTIVE
453B
ww
452B
PCLOC
500B
INTVEC
501B-517B
This word contains ones
for
the channels on which interrupts are permitted to
occur.
Bit
N
is
set
to
one to enable channel
N.
Bit 0
is
reserved and should
not be set by
any
program.
This word contains bits
for
channels on which interrupts are pending.
This·
information
is
only valid while the interrupt system is enabled. Bit
conventions are the
same
as.
for
ACTIVE.
WW
is
not updated when intemlpts
are disabled
--
wakeups caused from microcode accumulate in
}..rww
until
interrupts are enabled.
When an interrupt
is
initiated, the
PC
is
saved here.
If
the
CPU
program allows
nested interrupts, this location must be saved before re-enabling interrupts.
Contains pointers
to
the service routines for the
15
interrupt channels. The
first word corresponds
to
channel
15
(bit 15) and the last corresponds to
channel
1 (bit
1).
Channel
15
is
permanently assigned to handling main
memory parity errors.
The interrupt system uses four instructions:
