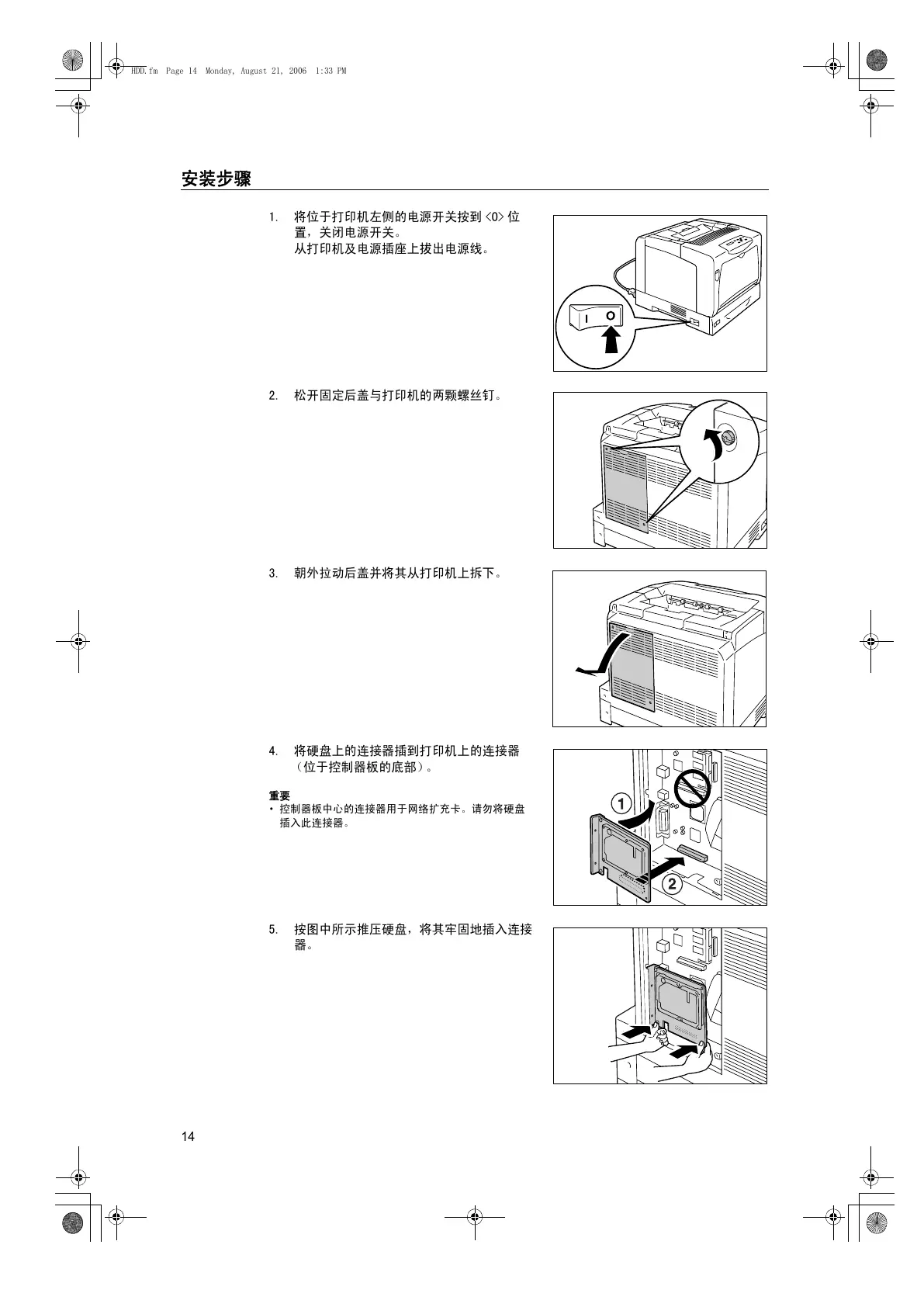

14
安装步骤
1. 将位于打印机左侧的电源开关按 <O>
置,关闭电源开关
从打印机及电源插座上拔出电源线。
2. 松开固定后盖与打印机的两颗螺丝钉
3. 朝外拉动后盖并将其从打印机上拆下
4. 将硬盘上的连接器插到打印机上的连接器
位于控制器板的底部
重要
· 控制器板中心的连接器用于网络扩充卡。请勿将硬盘
插入此连接器。
5. 按图中所示推压硬盘,将其牢固地插入连接
器。
HDD.fm Page 14 Monday, August 21, 2006 1:33 PM
