REP 9 Drive Module Removal
Parts List on PL 7
1. Perform REP 8.
2. Disconnect 4 cables to the PSU.

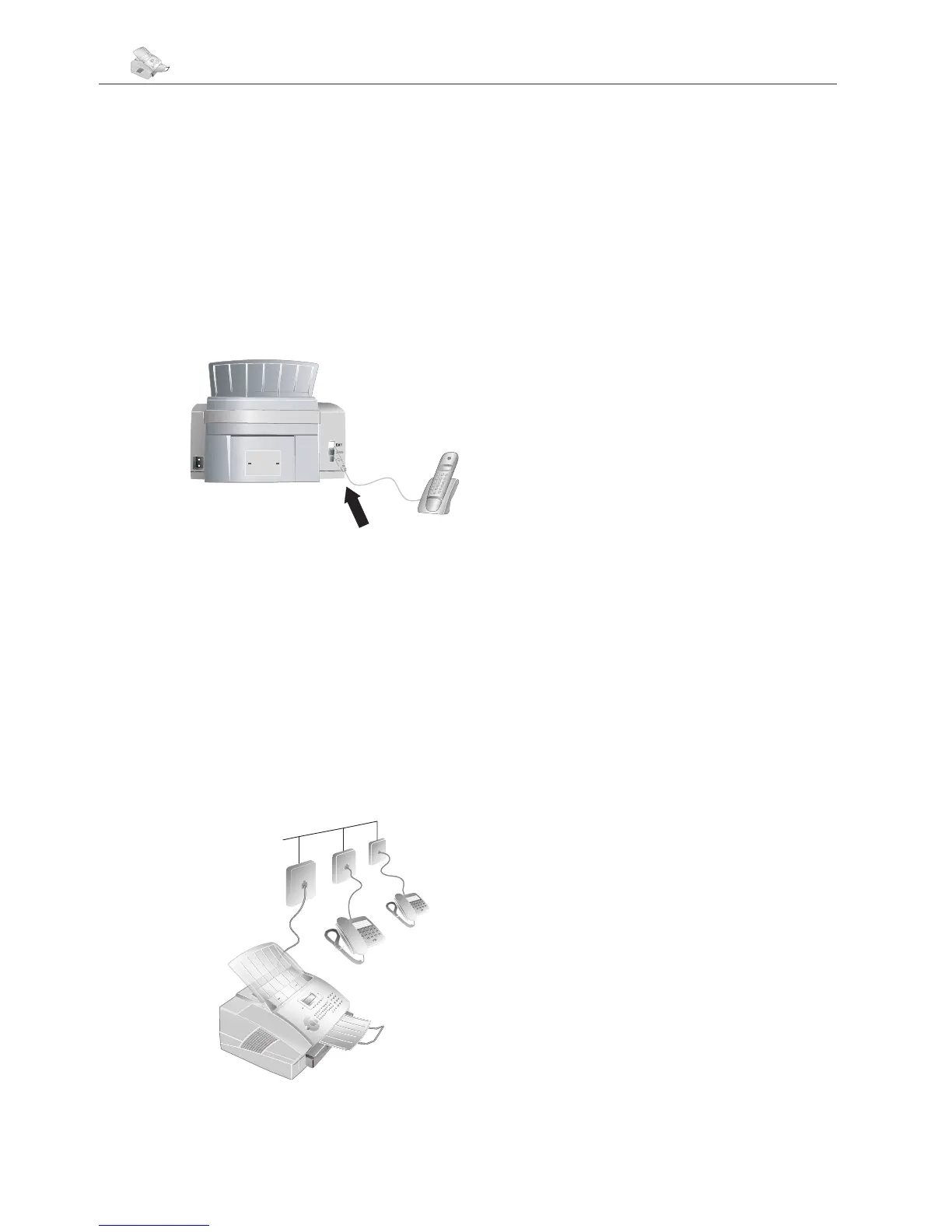

Figure 1
3. Remove 2 screws on the bottom of the Driving Module Bracket.
4. Remove the earth (ground) screw.
