Xerox XC351 User Manual

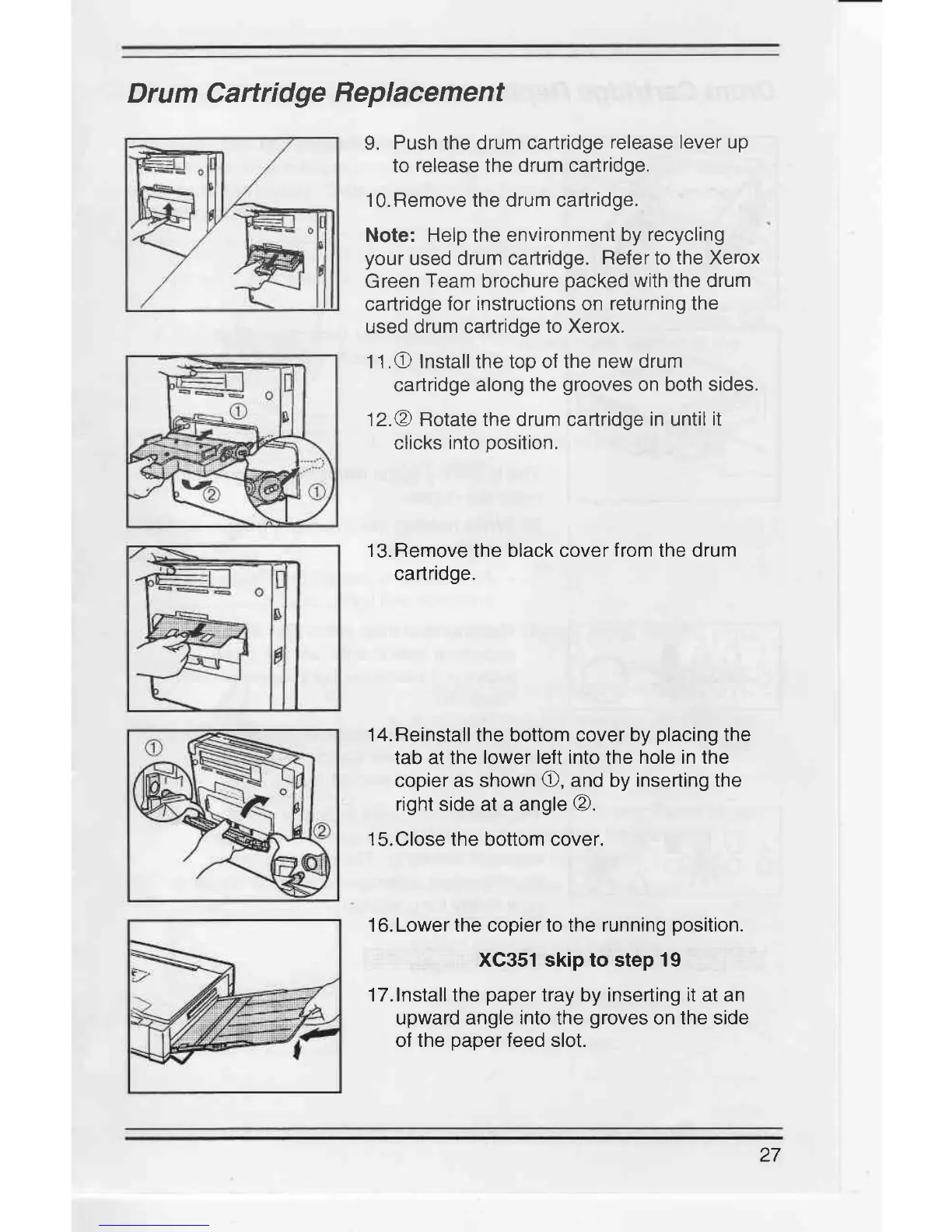

Drum Cartridge
Replacement
9.
Push
the drum
cartridge
release lever up
to
release
the
drum cadridge.
10.Remove the drum cartridge.
Note: Help the environment
by recycling
your
used drum
cartridge.
Refer
to
the Xerox
Green
Team
brochure
packed
with the drum
carlridge
for instructions on returning the
used drum cartridge
to Xerox.
11.O Install the top of the
new drum
cartridge
along the
grooves
on both
sides.
12.O Rotate the drum cartridge
in until
it
clicks
into
oosition.
13. Remove
the
black cover
f
rom the drum
caftridge.
l4.Reinstallthe bottom cover
by
placing
the
tab at the
lower left into
the
hole in the
copier as shown O, and by
inserting the
right side at a angle @.
15.Close the bottom cover.
16. Lower the copier to the running
position.
XC351 skip to step 19
17.Install the
paper
tray by inserting it at an
upward angle
into
the
groves
on the side
of
the
paper
feed slot.
27
