ML605 Hardware User Guide www.xilinx.com 11
UG534 (v1.2.1) January 21, 2010
Detailed Description
Detailed Description

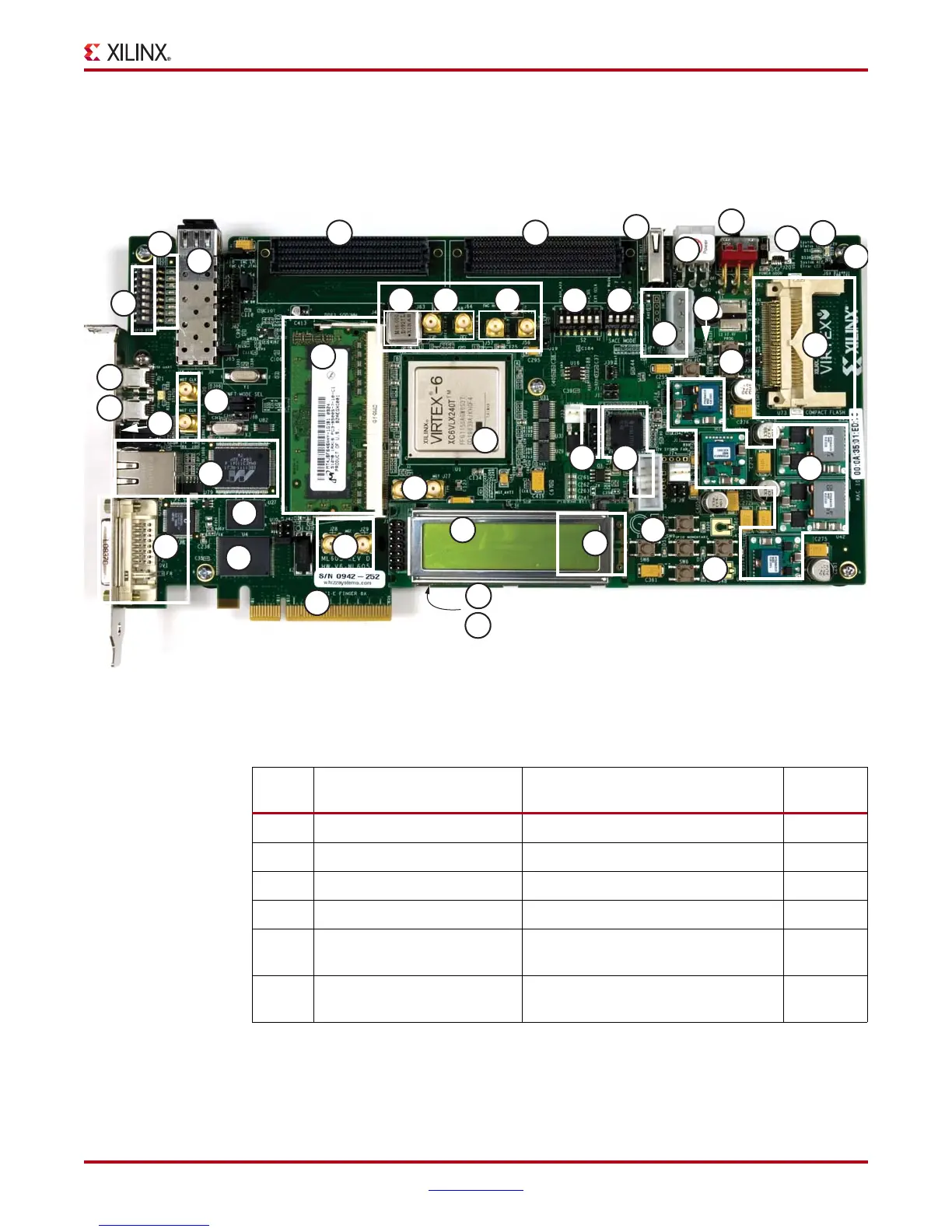

Figure 1-2 shows a board photo with numbered features corresponding to Table 1-1 and
the section headings in this document.
The numbered features in Figure 1-2 correlate to the features and notes listed in Table 1-1.
X-Ref Target - Figure 1-2
Figure 1-2: ML605 Board Photo
1
2
8
13
5
10
15
8
13
16b
16c
23
19
18a
18b
18c18
d
7c 17e
17c
17b
17f
21a
21a
21b
21c
21d
22
7a
(on backside)
7b
17a
17
d
20
12
6
16a
7d
11
14
3
4
9
UG534_02_123009
Table 1-1: ML605 Features
Number Feature Notes
Schematic
Page
1 Virtex-6 FPGA XC6VLX240T-1FFG1156 2 - 12
2 DDR3 SODIMM Micron 512 MB MT4JSF6464HY-1G1 15
3 128 Mb Platform Flash XL Xilinx XCF128X-FTG64C 25
4 Linear BPI Flash Numonyx JS28F256P30T95 26
5
System ACE CF controller, CF
connector
Xilinx XCCACE-TQ144I
(bottom of board)
13
6
JTAG cable connector (USB
Mini-B)
USB JTAG download circuit 46
