Ethernet Setup

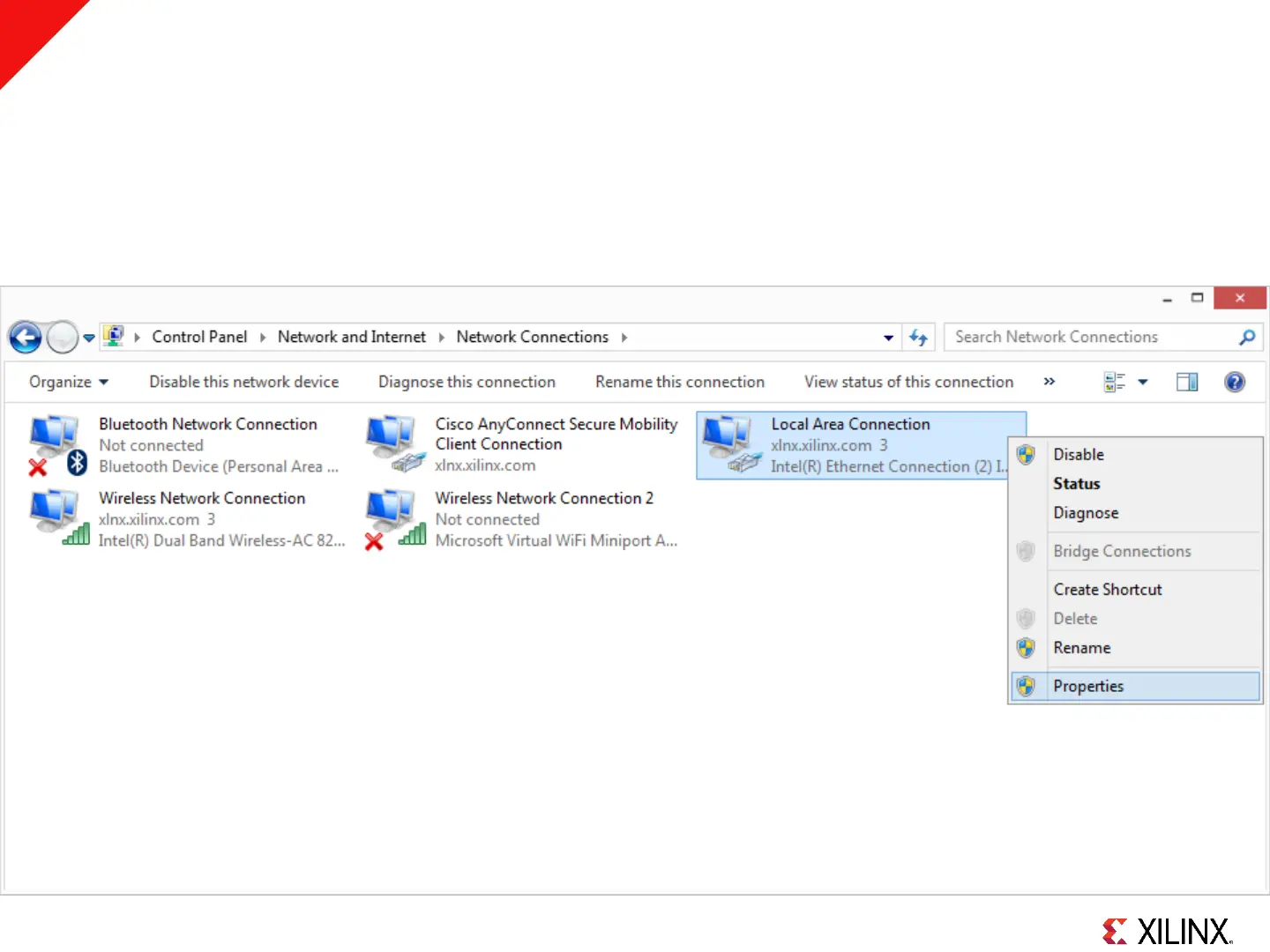

˃ Right-click on the Gigabit Ethernet Adapter that you will be using for this

test and select Properties

Note: Presentation applies to the SP701
