Restoring VC707 G18 BPI Flash

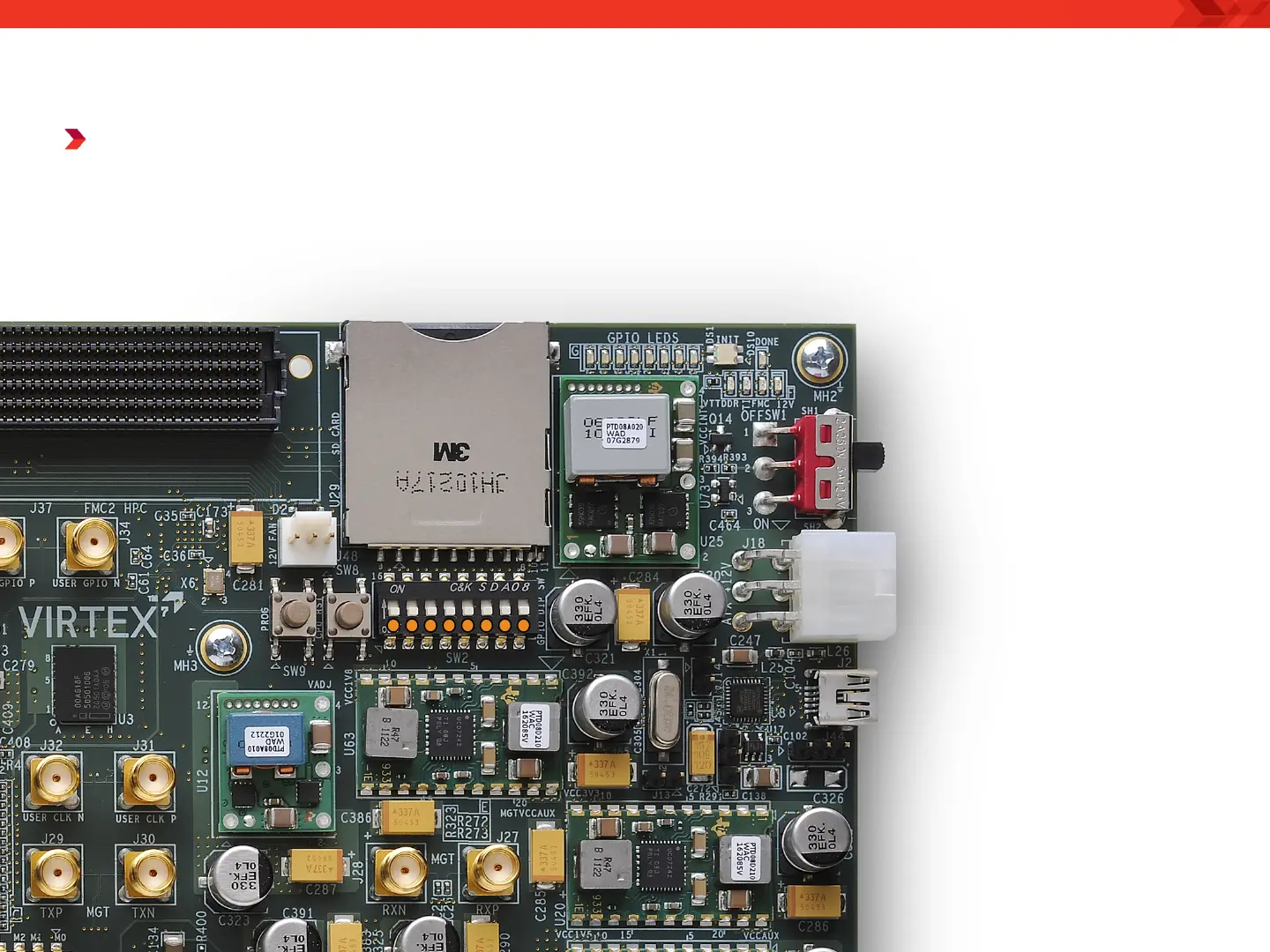

Set SW2 to 00000000 (1 = on, Position 1 → Position 8)

– Some SW2 settings can cause the MultiBoot design to interfere with iMPACT
