Xinje DS5F Series User Manual

32
W
R
380V
D
P+
C
U
V
T
S

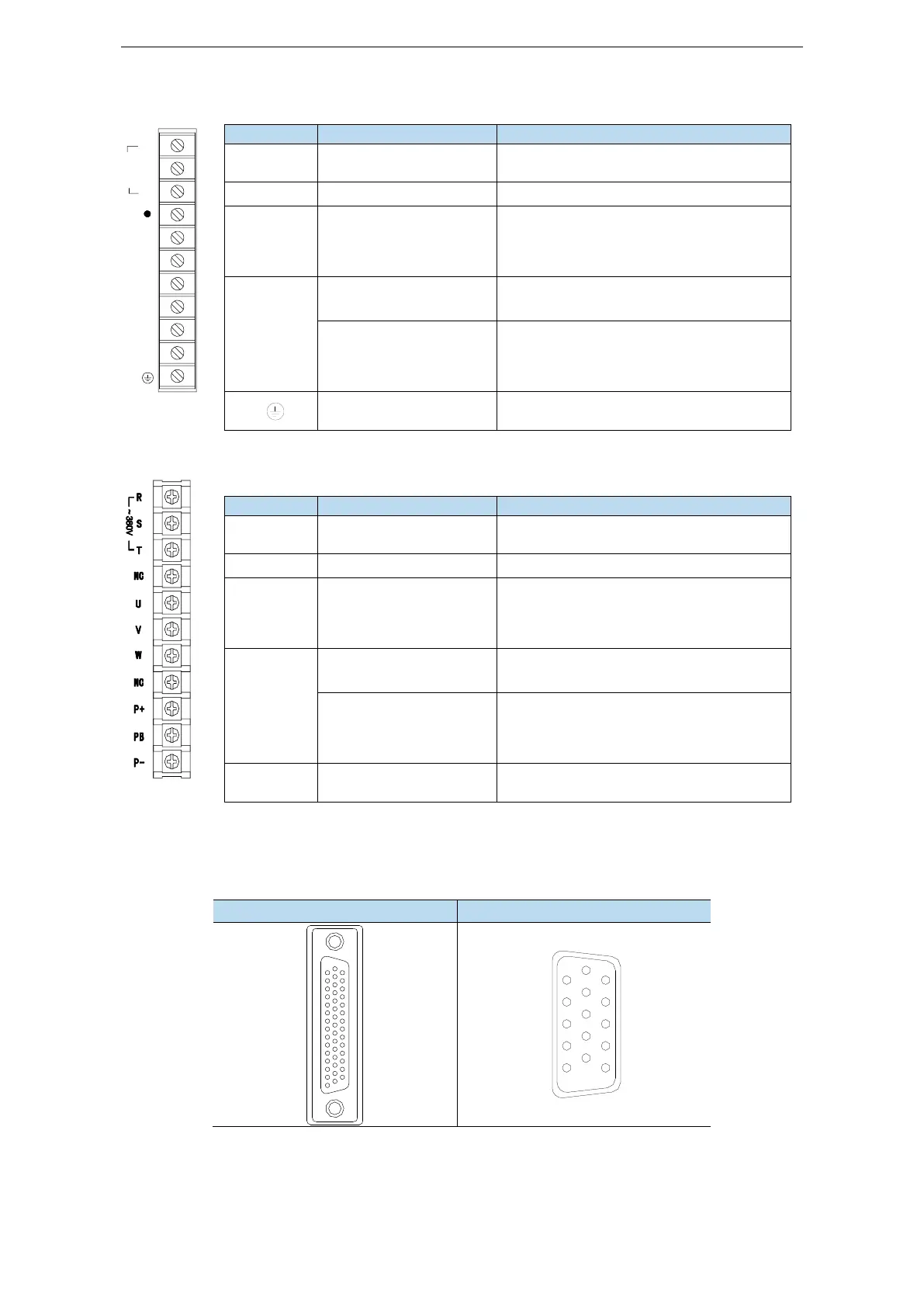

 DS5F-43P0-PTA
Terminal
Function
Explanation
R/S/T
Power supply input of
main circuit
3-phase AC 200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W
Motor terminals
Connect the motor
Note: the ground wire is on the cooling
fin, please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, P0-25=
power value, P0-26= resistor value
Ground terminal
Connect to ground terminal of motor, then
connect to the ground
 DS5F-45P5/47P5-PTA
Terminal
Function
Explanation
R/S/T
Power supply input of
main circuit
3-phase AC 340~420V, 50/60Hz
●
Vacant terminal
-
U, V, W
Motor terminals
Connect the motor
Note: the ground wire is on the cooling
fin, please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, P0-25=
power value, P0-26= resistor value
P+, P-
Bus terminal
Real-time bus voltage can be measured.
Please pay attention to the danger.
3.1.3 CN0, CN1, CN2 terminal
3.1.3.1 CN0 terminal
CN0
CN1
 CN0 terminal explanation (hardware version V3.1.31 and early)
