XO FLEX – Installation instructions Installation
30
3. Turn the nut clockwise without turning the light arm post – the nut will cause the light arm post
and the bridge arm post to engage. Rotate the light arm post with the stop screw at the top of
the post, pointing towards the chairside.
4. When the nut begins to tighten, turn the light arm post slowly until the two posts engage. Then
tighten the nut even further by hand, approx. 1 turn. Finally, fasten the nut with the supplied
special wrench (MG-416). See Figure 38.

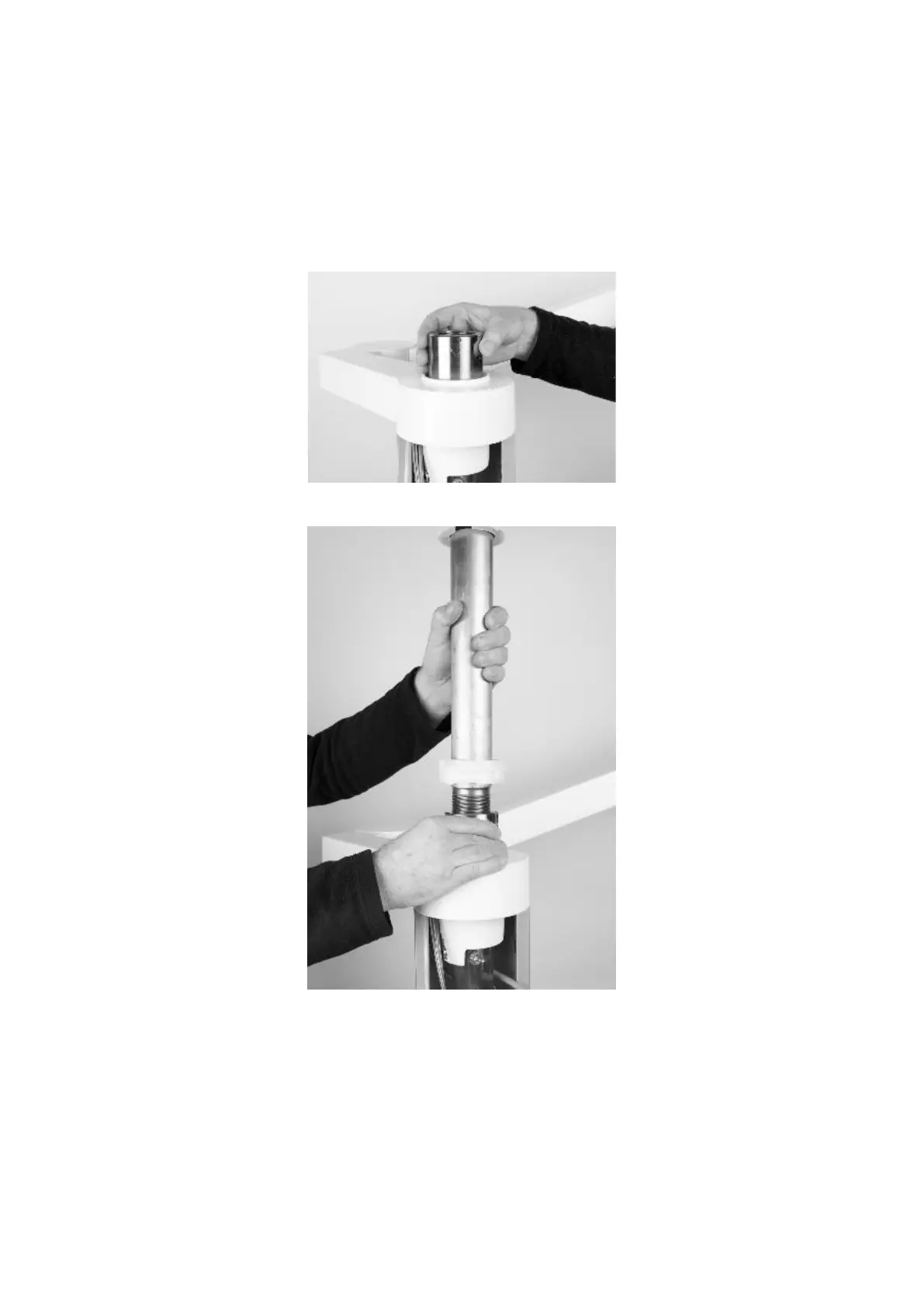

Figure 36 – Fitting the nut onto the bridge arm post
Figure 37 – Light arm post fitted into the nut
