XO FLEX – Installation instructions Installation
28

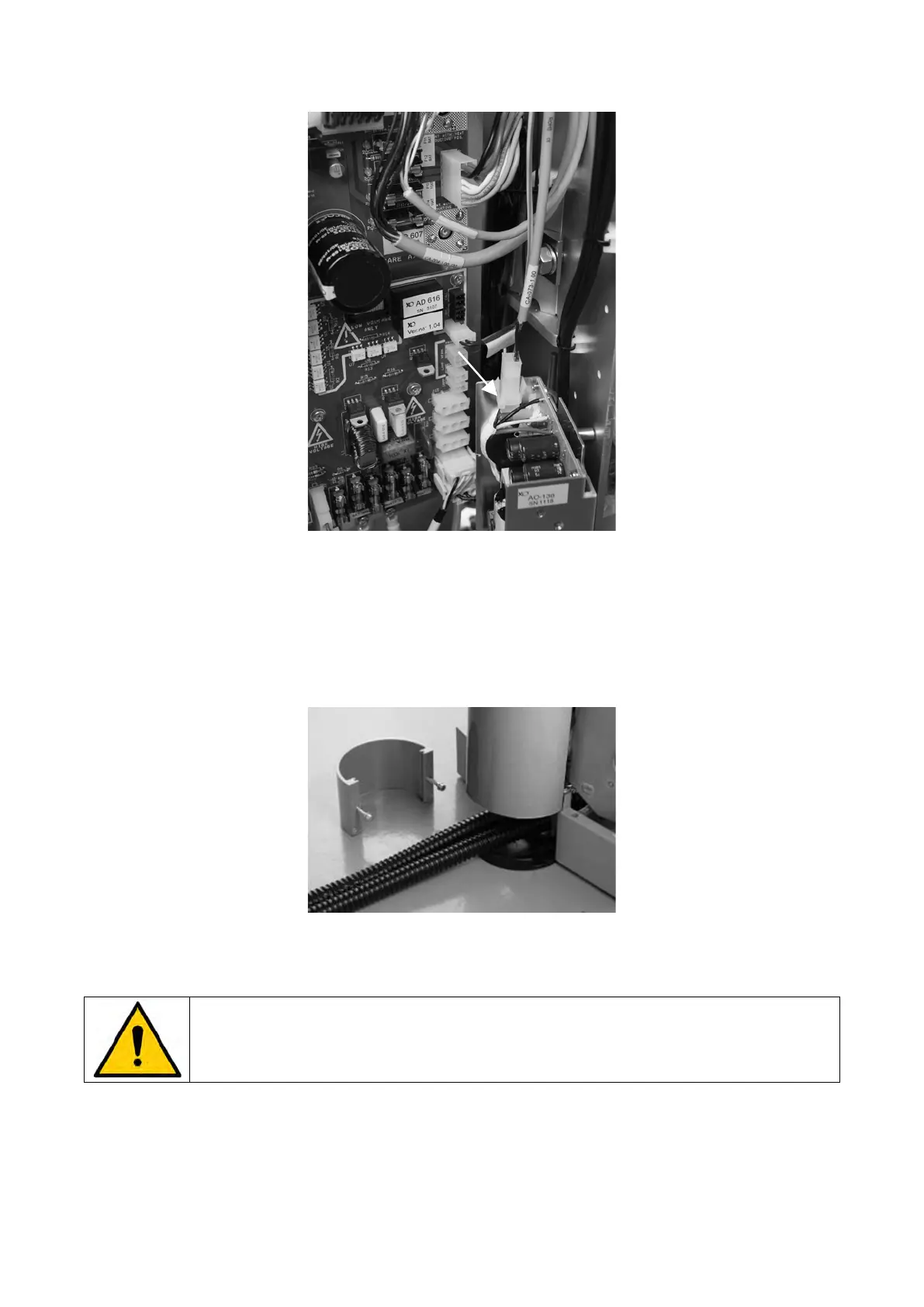

Figure 32 – Connection of cable CA-073 to MX power supply
5.4 OVER-THE-FLOOR INSTALLATION
If the installations cannot be fitted under the floor, they may run along the floor and into the unit as
shown in Figure 33.
Remove the cylindric cover by loosening the two screws from within the unit stand.
Figure 33 – Over-the-floor installation
5.5 X-RAY ADAPTOR
The weight of the X-ray unit head may not exceed 8 kg, and the weight of the arm
system may not exceed 17 kg.
The arm reach of the X-ray unit may not exceed 220 cm. See Figure 34.
