XO FLEX – Installation instructions Installation
42
CONNECTING SUCTION MOTOR CONTROL CABLE
Connect suction motor control cable to the screw terminals marked J21, “SUC” on the Mains
Board:
Figure 56 – Connection of suction motor control cable

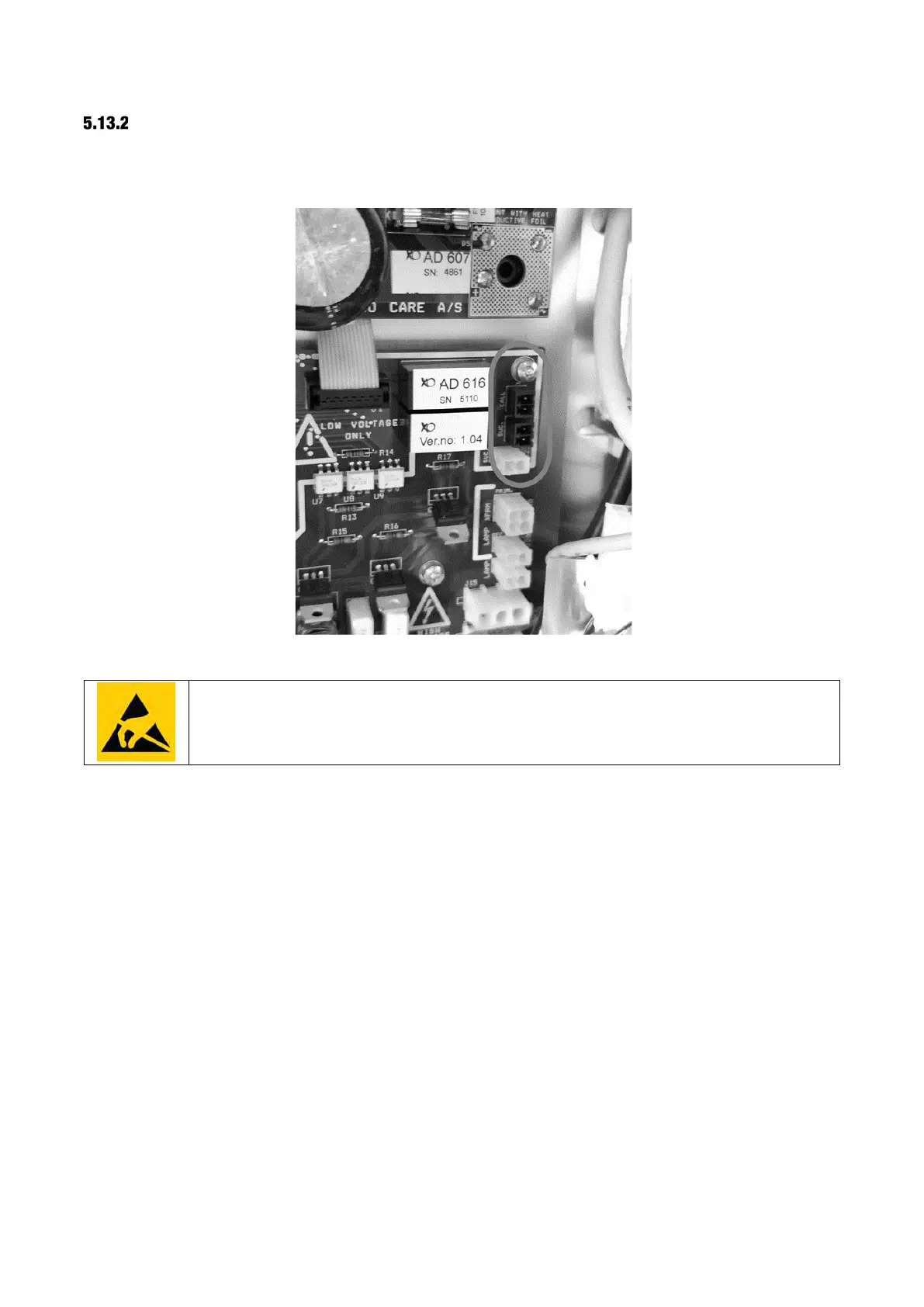

Connect suction motor control cable to the connector marked J21, “SUC” on the
Mains Board.
5.14 FITTING THE PATIENT CHAIR
Remove the cover under the patient chair support.
Lift the patient chair onto the four rods of the chair support. See Figure 57.
Attach M12 nuts and washers to the four rods.
