XO FLEX – Installation instructions Installation
45

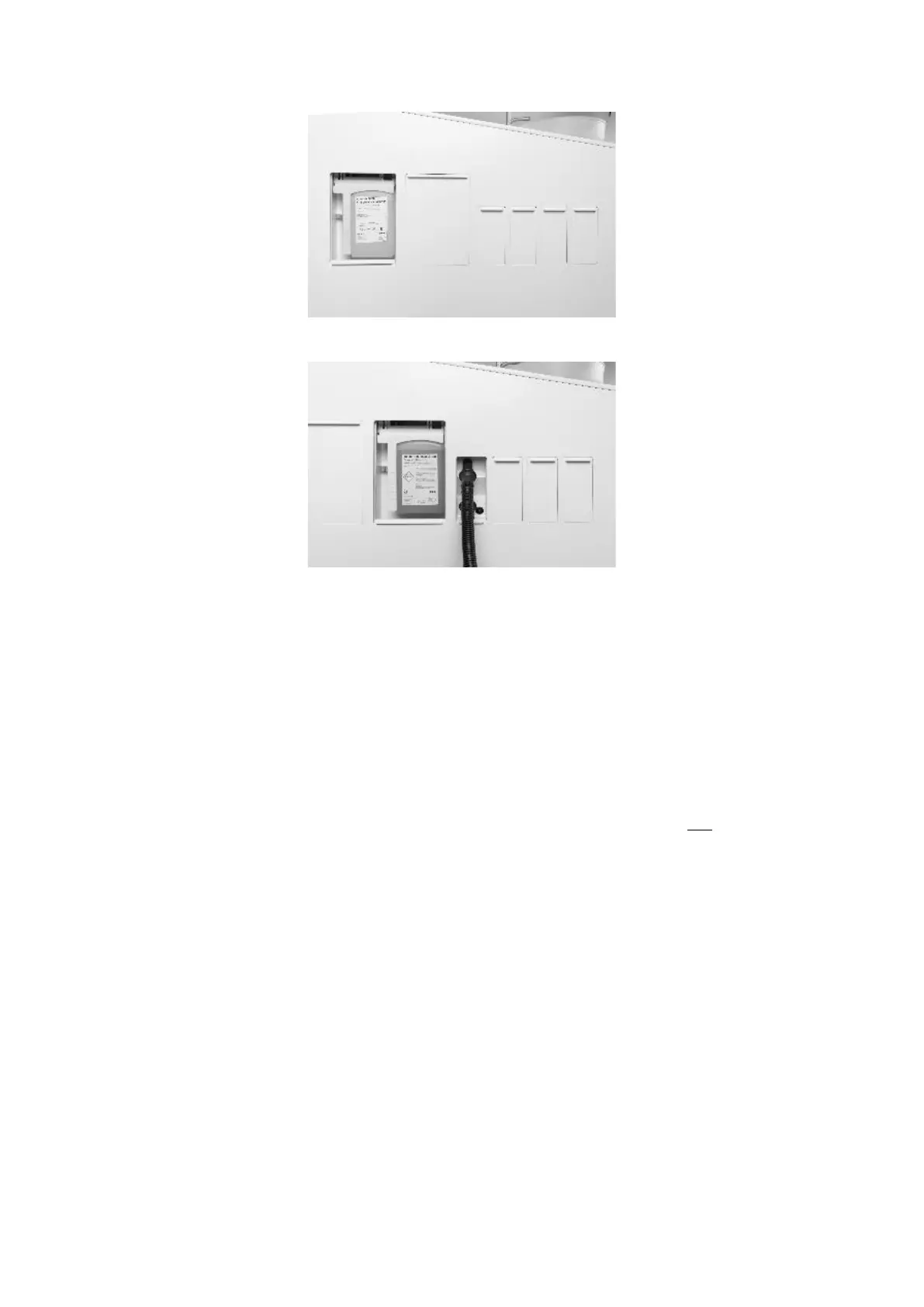

Figure 61 – XO Water disinfection cartridge. Note that the receiving handle is white.
Figure 62 – XO Suction Disinfection cartridge. Note that the receiving handle is yellow.
5.16 CONNECTION OF EXTERNAL EQUIPMENT
The XO FLEX dental unit may be connected to an external PC for the following purposes:
a) use with XO SMART LINK
b) display of images from the intraoral camera
c) display of other information from the external PC on the unit display
The dental unit may also be installed furthest away third-party x-ray equipment and external
imaging system. Note that when the external x-ray system is installed, the wires between the x-ray
equipment and the x-ray imaging system are pulled through the dental unit but not electrically
connected to the dental unit.
When an external PC or x-ray equipment is installed, this forms a medical electrical system
according to IEC 60601-1, Clause 16, and the installation shall comply with the requirements of the
standard.
The system consists of the following items:
• XO FLEX dental unit
• External PC
• External monitor
• Medical grade isolating transformed
• Third-party x-ray equipment and imaging system
The system is illustrated in Figure 63.
