XO FLEX Installation instructions Installation
27

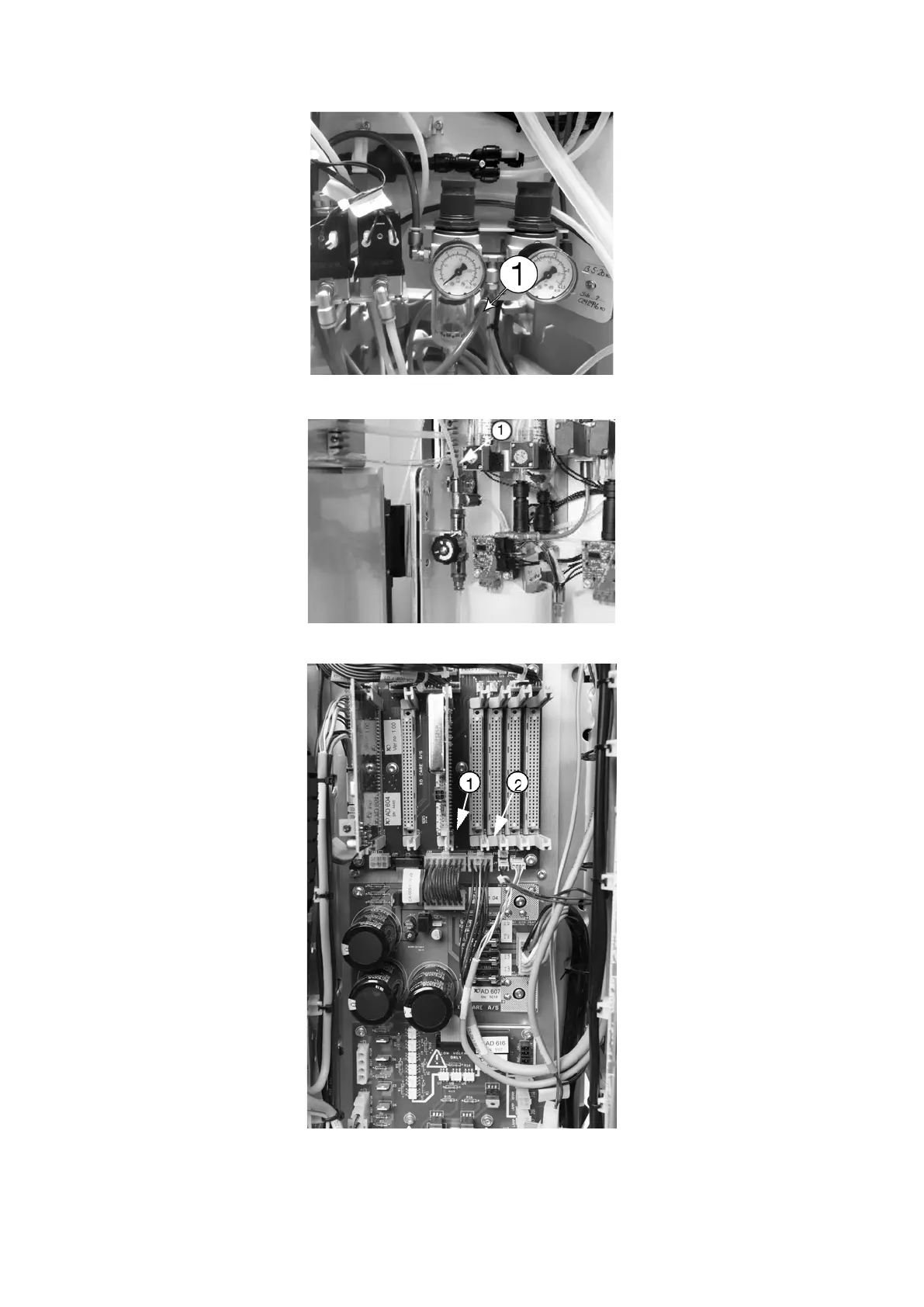

Figure 29 Connecting the blue 6 mm air tubing (1) from the instrument bridge between the two manometers
Figure 30 Connecting the white 4 mm water tubing (1) from the instrument bridge to the T-fitting
Figure 31 Connecting cables from the instrument bridge: (1) connection of Bridge Pwr” to J31 and (2)
connection of “Bridge Com“ to J32
