3. Installation
3.1. Adjustment
3.1.1. Adjustment of the Lenses

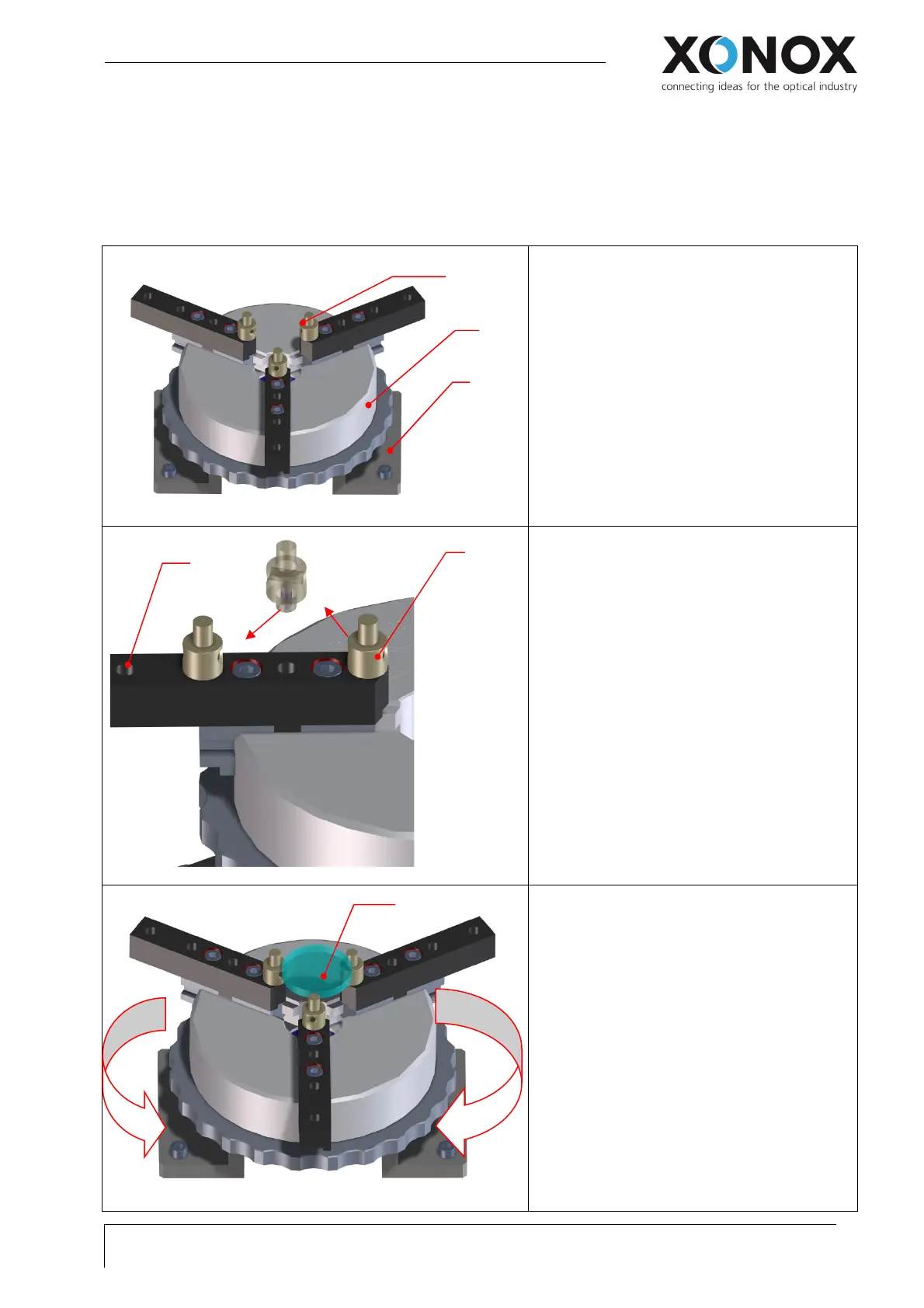

Illustration 2: Centering device without lens
1. Holding adapter for lenses
2. Manual chuck
3. Adapter for manual chuck
Illustration 3: Change position of holding adapter for lenses
1. Front position oft he holding Adapter for
lenses
2. Change position, depending on lens
diameter
3. Thread for holding adapter for lenses
Illustration 4:Holding oft he lens
1. Open the manual chuck
2. attaching the lens
3. Clamp the lens by softly closing the
manual chucks
1
3
2
1
3
2
2a
2b
1
3
