3.2. Alignment

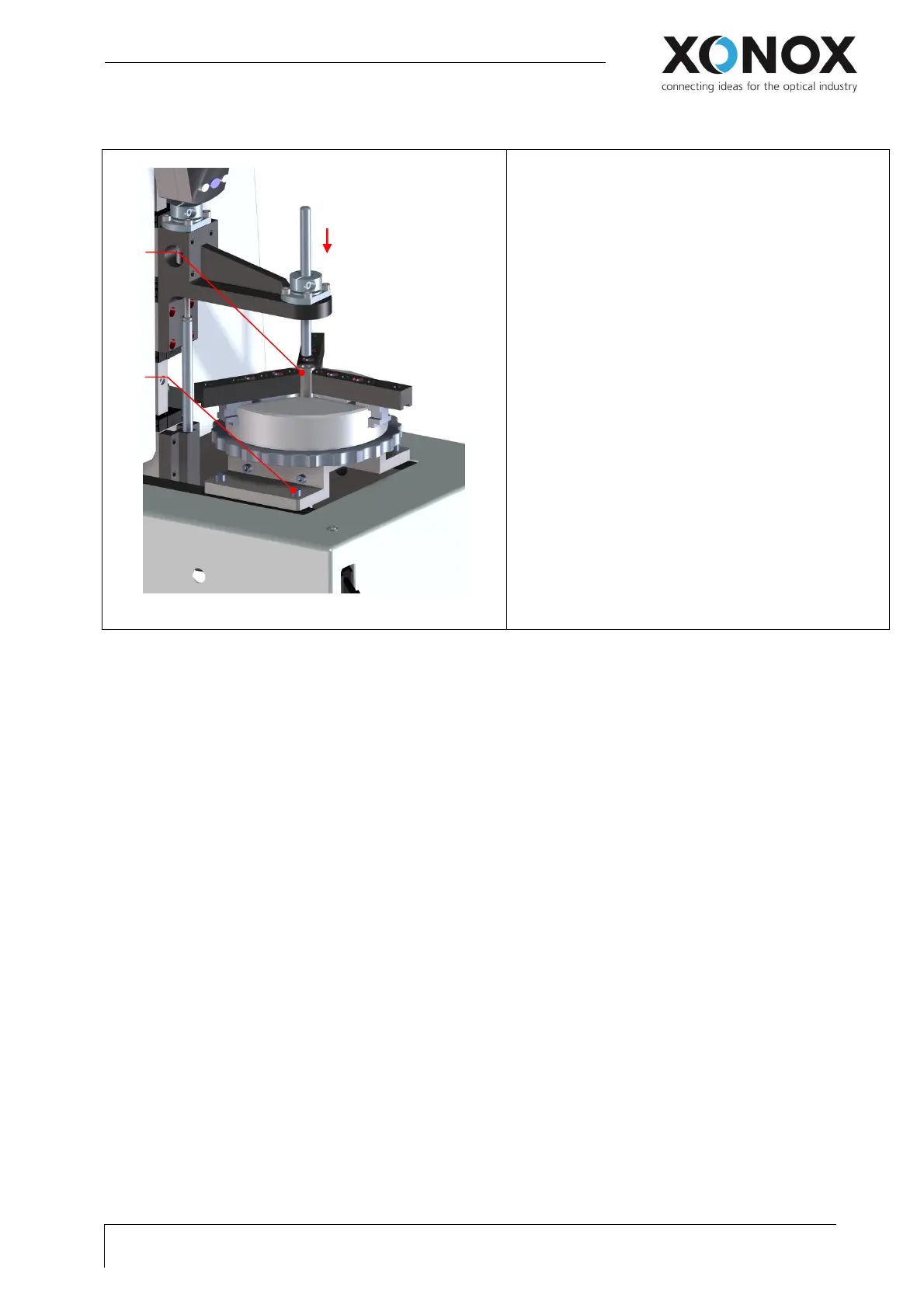

Illustration 7: Centering by using the alignment bushing
1. loose the 4 screws of the adapter for the manual
chuck.
2. Insert the alignment bushing
3. Putting down the upper probe
4. Adjust the manual chuck until upper probe fits
easily through the alignment bushing..
5. tighten the screws of the adapter fort he manual
chuck
2
3
1
