981210
P 2x10
941015
BB 10X15
967100
C 10

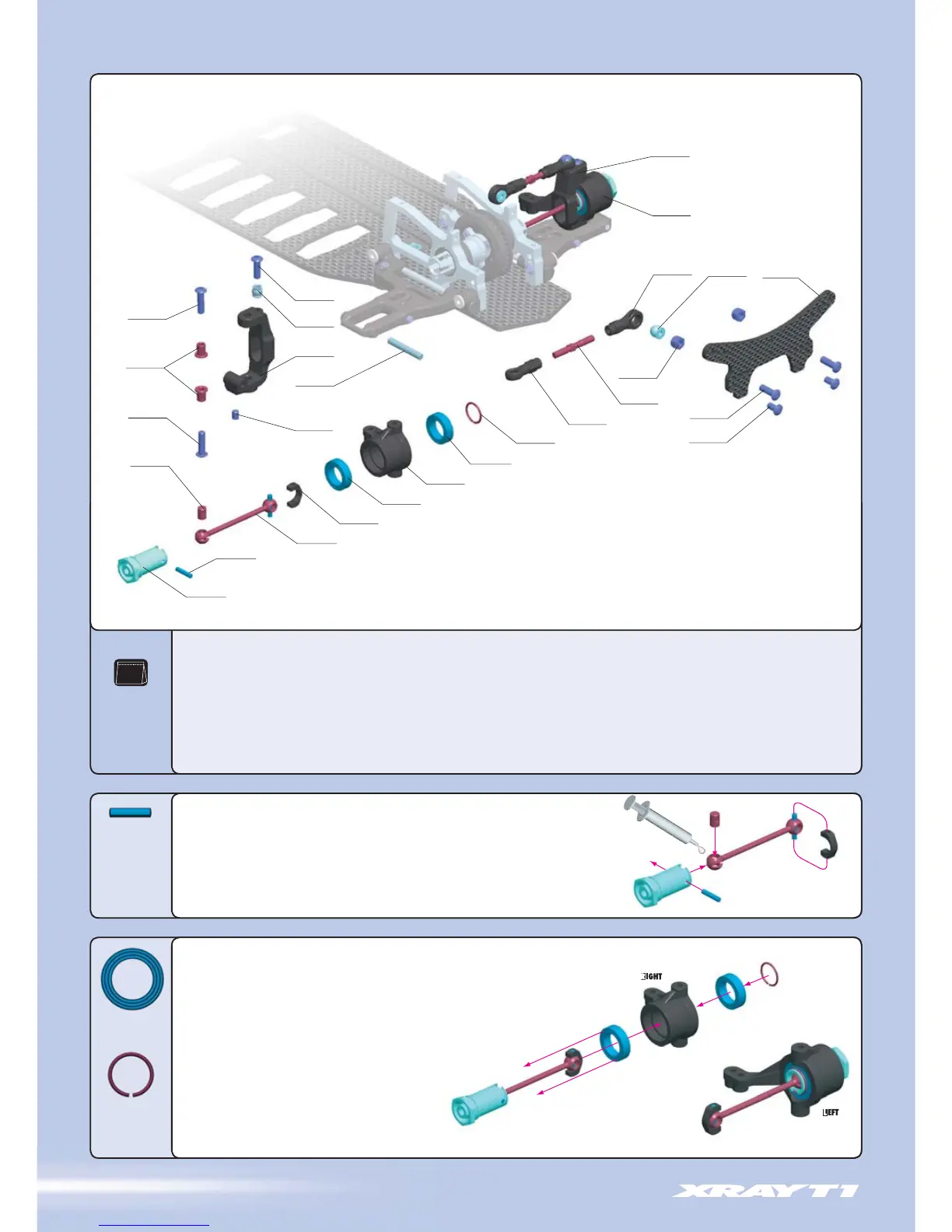

Build TWO front steering blocks by performing the following steps.
1. Slide a #941015 (BB 10x15) ball-bearing onto the wheel axle.
2. Insert the wheel axle through the steering block until the bearing seats in
the steering block. Note the orientation of the parts in the image.
3. Slide another #941015 (BB 10x15) ball-bearing onto the wheel axle. Press
the bearing into the steering block, making sure it seats properly.
4. Secure the wheel axle in the steering block by installing a #967100
snap ring in the groove of the wheel axle.
Build TWO axles by performing the following steps.
1. Lightly grease a #305230 coupling and insert it into the drive shaft joint.
2. Lightly grease the drive shaft end and slide it into the #305311 wheel axle. Align the holes
in the coupling with the holes in the wheel axle.
3. Insert a #981210 (P 2x10) pin through the aligned holes in the coupling and wheel axle.
Make sure the pin is evenly spaced on both sides of the wheel axle.
4. Install the #305240 plastic cap onto the drive shaft pins.
G
R
E
A
S
E
30 2096 SHOCK TOWER FRONT - FACTORY KIT
30 2250 COMPOSITE STEERING BLOCK RIGHT FOR C-HUB SUSP.
30 2260 COMPOSITE STEERING BLOCK LEFT FOR C-HUB SUSP.
30 2282 COMPOSITE C-HUB FRONT BLOCK, RIGHT - MEDIUM - CASTER 3°
30 2284 COMPOSITE C-HUB FRONT BLOCK, LEFT - MEDIUM - CASTER 3°
30 2290 C-HUB BUSHING (4)
30 2630 ADJ. TURNBUCKLE L/R 20 MM - SPRING STEEL (2)
30 2662 BALL JOINT 5 MM - OPEN (6)
30 3220 BALL JOINT 5.8 MM (4)
30 3240 BALL UNIVERSAL 5.8 MM HEX (4+4)
30 5230 DRIVE SHAFT COUPLING - SPRING STEEL (2)
30 5240 DRIVE SHAFT REPLACEMENT PLASTIC CAP 3 MM (4)
30 5311 WHEEL AXLE - 22 MM - INTEGR. HEX HUB - (FACTORY KIT) (2)
30 5321 DRIVE SHAFT - 51 MM - SPRING STEEL - (FACTORY KIT) (2)
30 7220 FRONT PIVOT PIN FOR C-HUB (2)
30 7454 PIVOT BALL 5.0 MM DOUBLE BEVEL SHOULDERS (10)
90 1304 HEX SCREW SB M3x4 (10)
90 2306 HEX SCREW SH M3x6 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 2312 HEX SCREW SH M3x12 (10)
94 1015 HIGH-SPEED BALL-BEARING 10 x 15 x 4 RUBBER SEALED (2)
96 0030 NUT M3 (10)
96 7100 O-CLIP 10 (10)
98 1210 PIN 2x10 (10)
05
BAG
