28

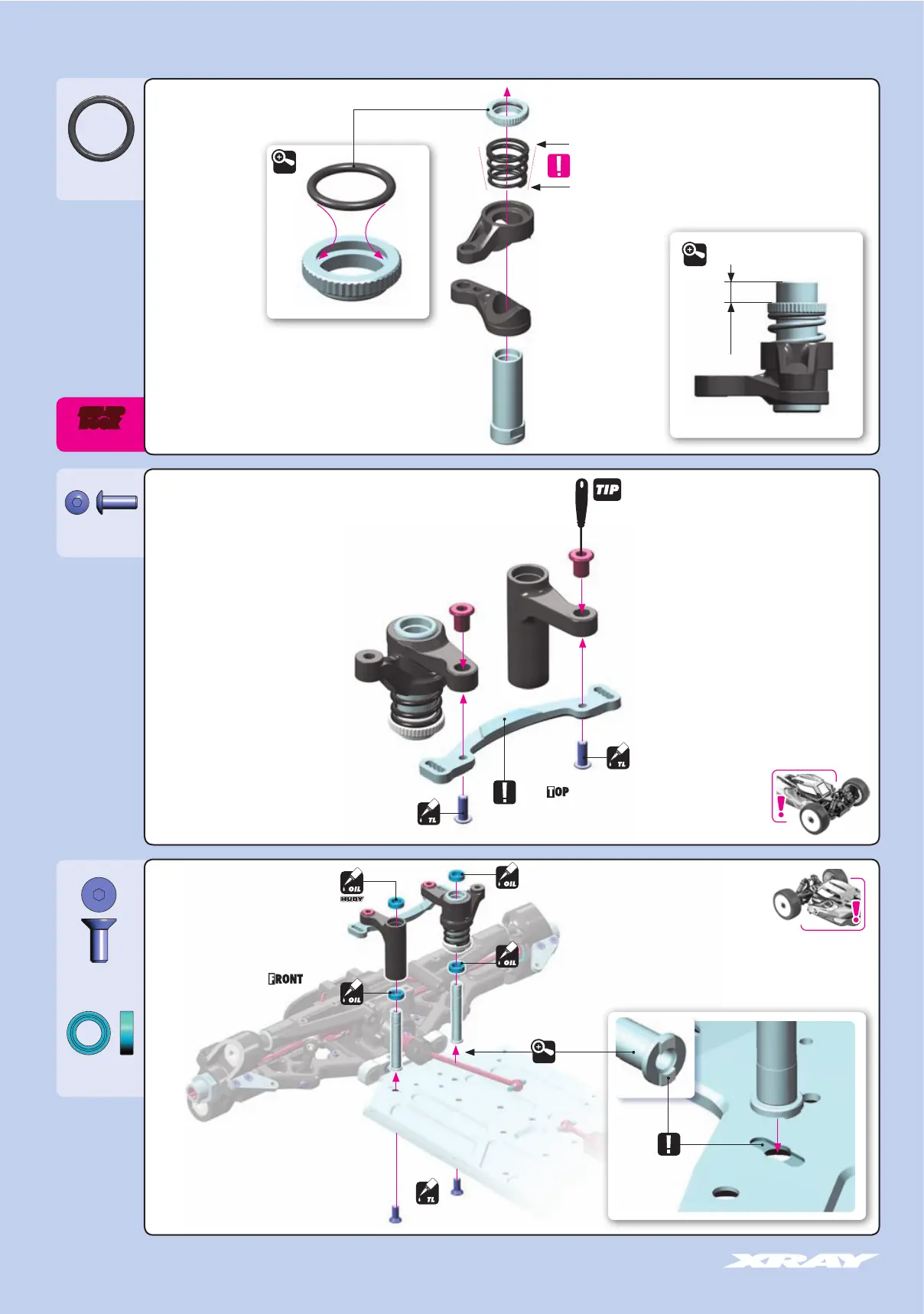

SERVO SAVER
7. STEERING
902308
SH M3x8
940610
BB 6x10x3
903410
SFH M4x10
970121
O 12.1x1.6
For servicing use
Bearing Oil (HUDY #106230)
4x10mm
3~4mm
INITIAL PRELOAD SETTING
DETAIL
DETAIL
3.0mm
HUDY Tool Allen 3.0mm
BOOK
SET-UP
NOTE
ORIENTATION
DETAIL
NOTE ORIENTATION
1x
2x
2x
4x
NOTE SPRING ORIENTATION
LARGER diameter on TOP
SMALLER diameter on BOTTOM
