29
ROLL CENTER
903308
SFH M3x8
903312
SFH M3x12
4x12mm
3x12mm
3x10mm
3x12mm
3x12mm
NOTE
ORIENTATION
M3
M4
USE ONLY HOLE
3x8mm
3x10mm

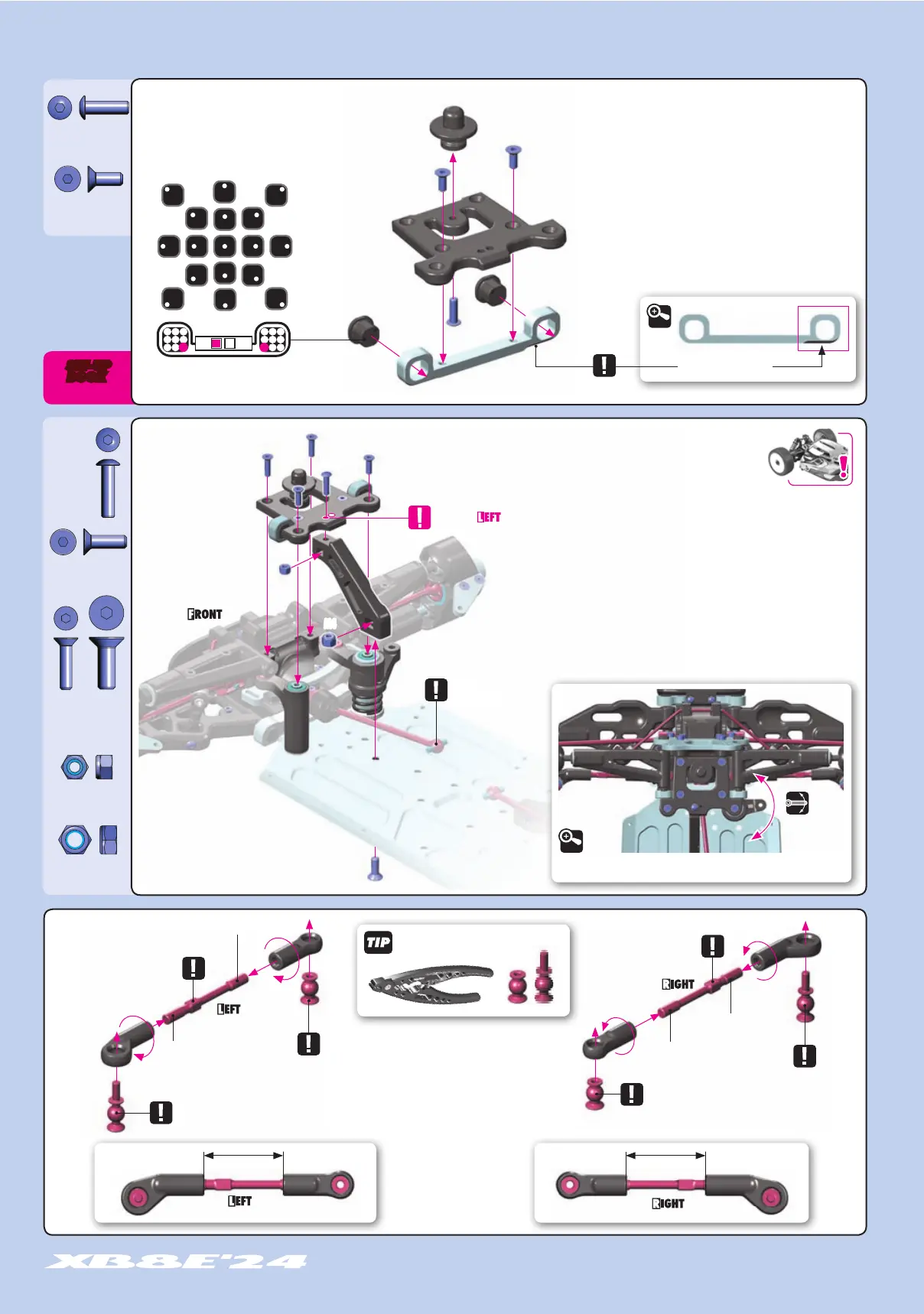

7. STEERING
902312
SH M3x12
902310
SH M3x10
960030
N M3
All possible mounting
alternatives of eccentric bushings.
RIGHT THREAD
RIGHT THREAD
LEFT THREAD
LEFT THREAD
27.5mm
27.5mm
LEFT THREAD LEFT THREAD
RIGHT THREAD RIGHT THREAD
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
Check for free
movement.
After the top deck assembly check for free movement of steering system.
DETAIL
DETAIL
INITIAL SETTING
903412
SFH M4x12
960040
N M4
BOOK
SET-UP
903310
SFH M3x10
Install the pivot balls with Professional
Multi-Tool (HUDY #183011).
0.5º1º
2x
1x
2x
2x
1x
1x
1x
1x
NOTE ORIENTATION
