Xray XB8E User Manual

30
ROLL CENTER
CASTER
ACKERMANN
BUMP STEER
TOE-IN
L=R
2x
NOTE ORIENTATION
Adjustment block towards outside.
NOTE ORIENTATION
Adjustment block towards outside.
3x10mm
Check for free
movement.
Check for free
movement.
INITIAL SETTING

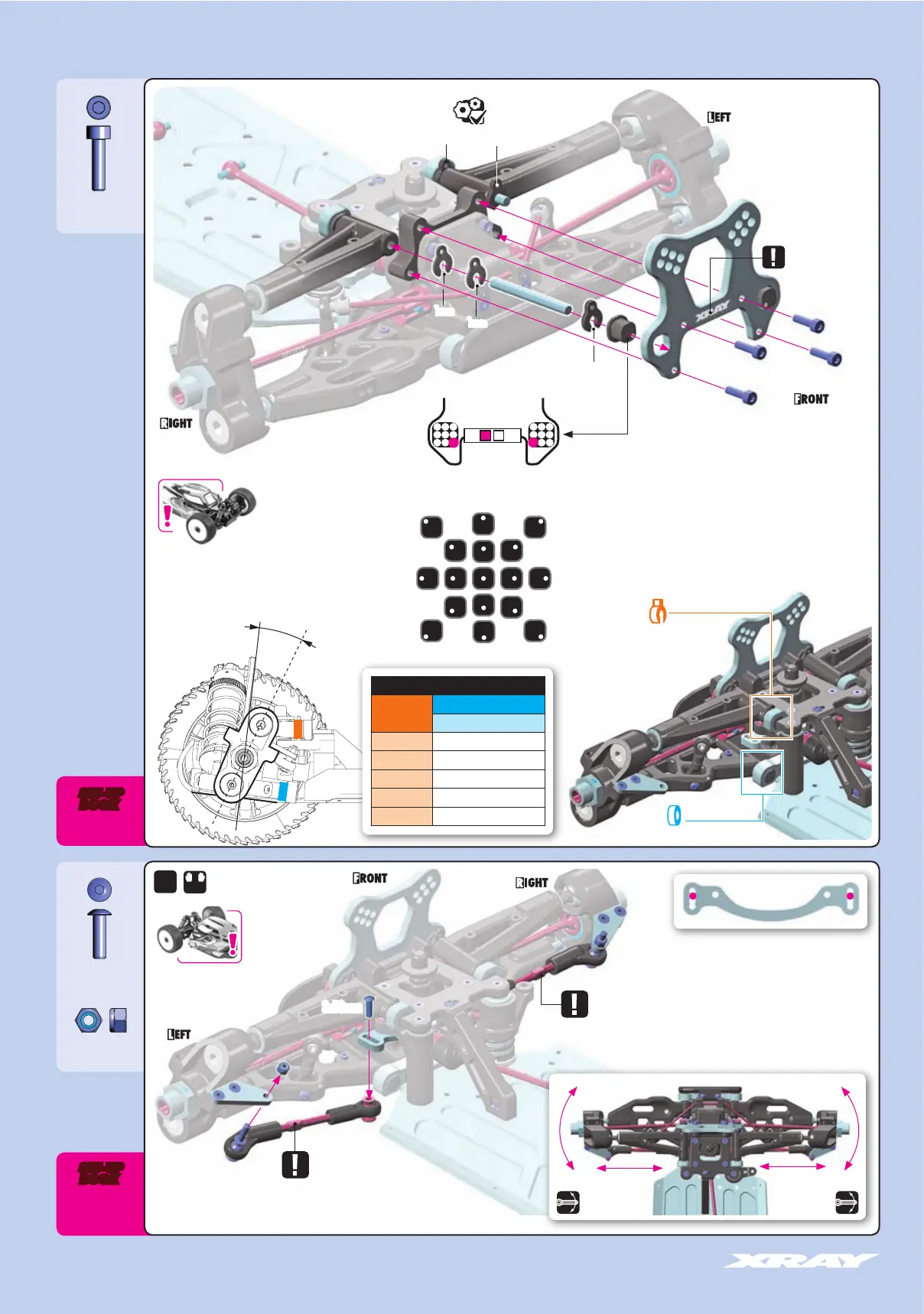

7. STEERING
All possible mounting
alternatives of eccentric bushings.
2mm
3x12mm
1+1mm
2mm
1mm
1mm
UPPER CLIP
LOWER SHIM
Behind arm
Behind arm
960030
N M3
902310
SH M3x10
CASTER
CASTER
UPPER CLIP
(Behind arm)
LOWER SHIM (Behind arm)
2mm
4mm 21º
3mm 22.5º
2mm 24º
1mm 25.5º
0 27º
XRAY logo
towards the
front.
BOOK
SET-UP
BOOK
SET-UP
908312
SCH M3x12
INITIAL SETTING
0.5º1º
4x
2x
2x

Xray XB8E Specifications

General

Chassis	7075 T6 Aluminum
Drivetrain	4WD
Shock Type	Big Bore
Motor	Not included
Battery	Not included
