Xray XB8E User Manual

32
902330
SH M3x30
903308
SFH M3x8
NOTE ORIENTATION
NOTE ORIENTATION
NOTE ORIENTATION

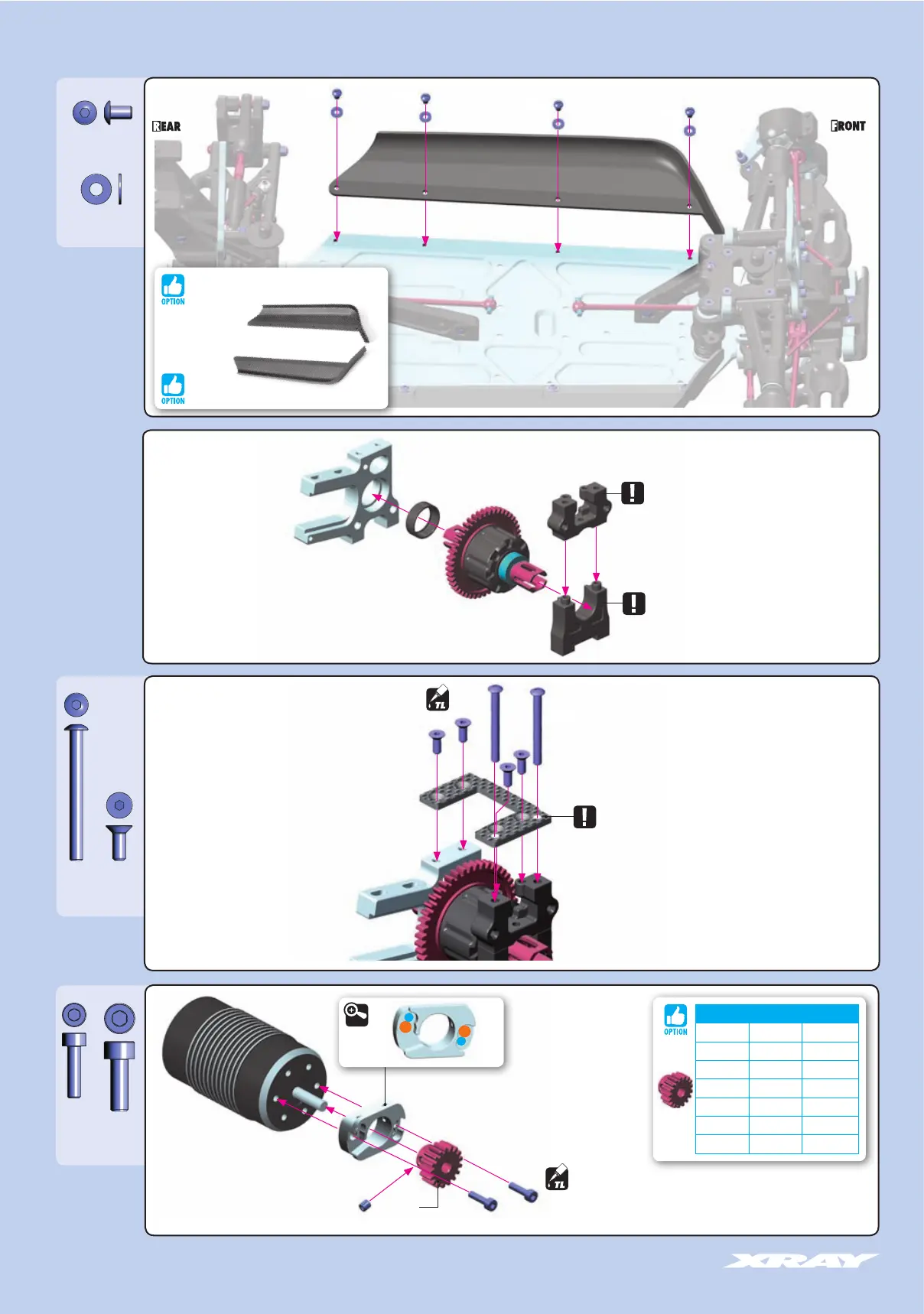

8. CENTER DIFF & BRAKE
902305
SH M3x5
961032
S 3.2
908312
SCH M3x12
Pinion
355712 ~ 18 (NOT INCLUDED)
DETAIL
M4
M4
M3
M3
Use M3 or M4 screws which fit your motor.
(M4 INITIAL SETTING)
908412
SCH M4x12
#351159-S
COMPOSITE CHASSIS SIDE GUARD L+R - SOFT
#351160
CARBON FIBER CHASSIS SIDE GUARD L+R
XRAY PINION GEAR (MODUL 1)
#355712 12T OPTION
#355713 13T OPTION
#355714 14T OPTION
#355715 15T OPTION
#355716 16T OPTION
#355717 17T OPTION
#355718 18T OPTION
3x5mm
3x5mm
3x5mm
3x5mm
3x8mm
3x30mm
4x
4x
2x 4x
2x
2x

Xray XB8E Specifications

General

Chassis	7075 T6 Aluminum
Drivetrain	4WD
Shock Type	Big Bore
Motor	Not included
Battery	Not included
