33
903412
SFH M4x12
908314
SCH M3x14
961032
S 3.2

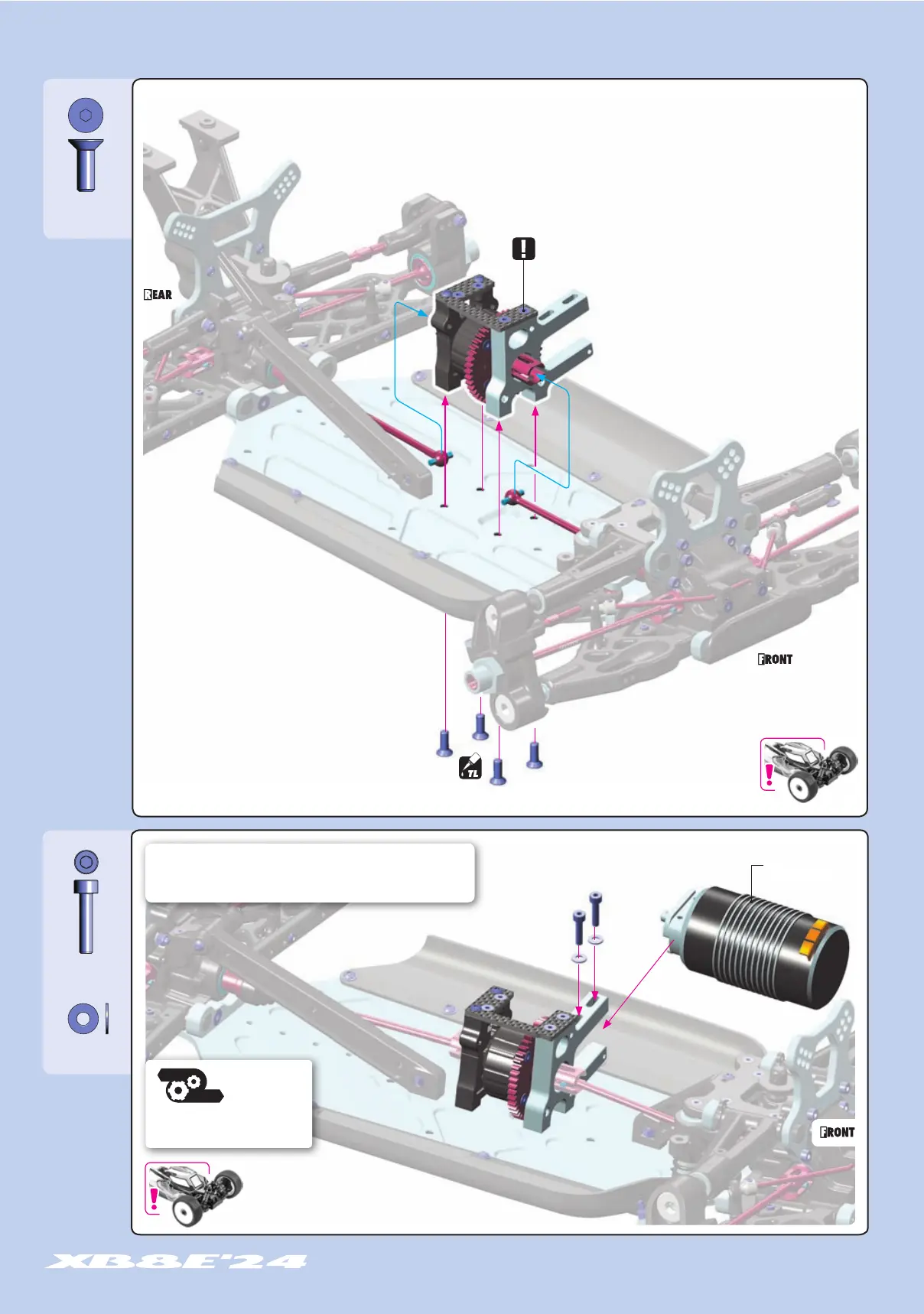

8. CENTER DIFF & BRAKE
All screws
Adjust gear mesh so there is minimal play between the gears.
TOO TIGHT gear mesh will put excessive strain on all parts and damage the parts.
TOO LOOSE gear mesh may result in stripped gears.
Motor
(NOT INCLUDED)
GEAR
RATIO
Final Drive Ratio
(Spur) (Pinion) (IGR)
( 46
:
X )
x
3.54
= FDR
4x12mm
4x
2x
2x
NOTE ORIENTATION
