39

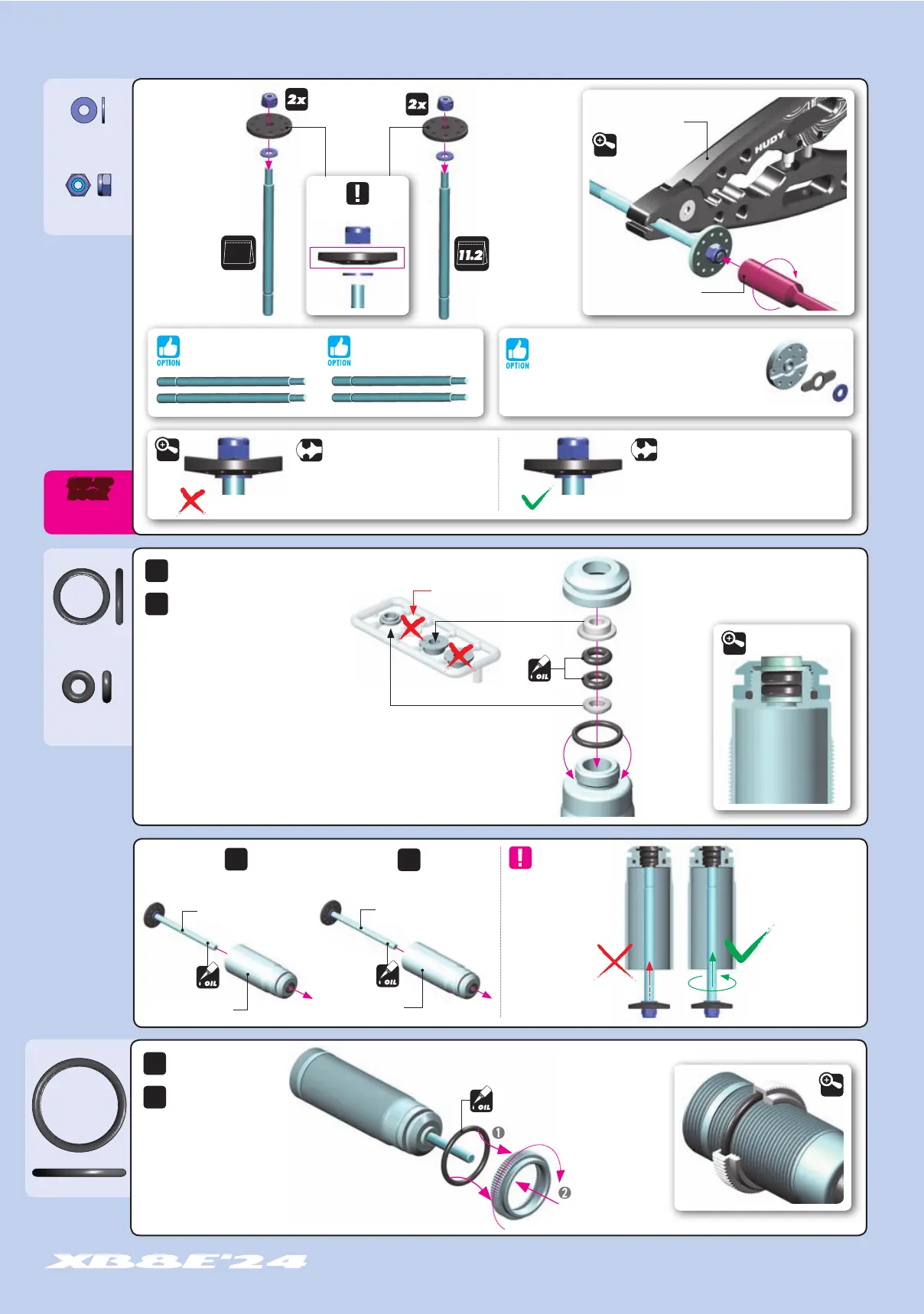

SHOCK DAMPING
SHOCK PISTONS
960026
N M2.5
358040
S 2.5x6x0.5
970180
O 18x1.8
FRONT SHOCKS (SHORT)
2x
There are two different thickness shims, use
them as shown. Use the same procedure
when building both front and rear shocks.
REAR SHOCKS (LONG)
2x
11. SHOCK ABSORBERS
FRONT SHOCKS
REAR SHOCKS
2x
SHORT shock body
SHORT shock rod
2x
LONG shock body
LONG shock rod
Twist the shock rod through the
lower shock body assembly.
INCORRECT
CORRECT
EXTREMELY
IMPORTANT
FRONT
SHOCK
11.1
BAG
BAG
REAR
SHOCK
8 holes
ø1.3mm pistons
8 holes
ø1.2mm pistons
LONG rodSHORT rod
NOTE ORIENTATION
971034
O 3.4x2
970100
O 10x1.5
BOOK
SET-UP
INCORRECT
DO NOT OVERTIGHTEN
The self-locking nut is overtightened, causing
distortion of the piston. This will negatively affect
the free movement of the piston in the shock body.
DETAIL
CORRECT
TIGHTEN GENTLY
The self-locking nut is gently tightened. The piston
remains undistorted and fits inside the shock body
perfectly, ensuring smooth movement of the piston.
DETAIL
Install the piston with Professional Multi
Tool (HUDY #183011).
#358027 PISTON 5-HOLE (1.5mm) & 2-HOLE (1.0mm) (4)
#358028 PISTON 6-HOLE (1.3mm) & 2-HOLE (1.1mm) (4)
#308029 PISTON 6-HOLE (1.4mm) & 2-HOLE (1.1mm) (4)
#358030 PISTON 8-HOLE (1.2mm) & 2-HOLE (1.2mm) (4)
#358031 PISTON 8-HOLE (1.3mm) & 2-HOLE (1.2mm) (4)
O-ring
Thin Shim
O-ring
Thick Shim
DO NOT USE
(INITIAL SETTING)
(INITIAL SETTING)
4x
4x
4x
8x
#358265
REAR SHOCK SHAFT 71.5mm (2)
#358164
FRONT SHOCK SHAFT 59mm (2)
DETAIL
FRONT SHOCKS
2x
REAR SHOCKS
2x
4x
DO NOT push the shock
rod straight through the
lower shock body assembly;
O-ring damage may result.
DETAIL
#175035 Socket 5.0mm
HUDY EXCLUSIVE Limited Edition
