Xray XB8E User Manual

40
While still holding the shock
shaft in position, fully tighten
the shock cap.
➊ Fully tighten the shock cap. ➋ Loosen the
cap screw. ➌ Extend the shock shaft. ➍ Slowly
compress shock shaft completely into shock body,
forcing air from the cap. ➎ While still holding the
shock shaft in compressed position, re-tighten screw
to seal cap.
SHOCK CAP
HALF 50% TIGHTEN
SHOCK CAP
HALF 50% TIGHTEN
SHOCK CAP
100% TIGHTEN FULLY
SHOCK CAP
100% TIGHTEN FULLY
Follow the steps below to set the shock rebound to the default setting of 0%.

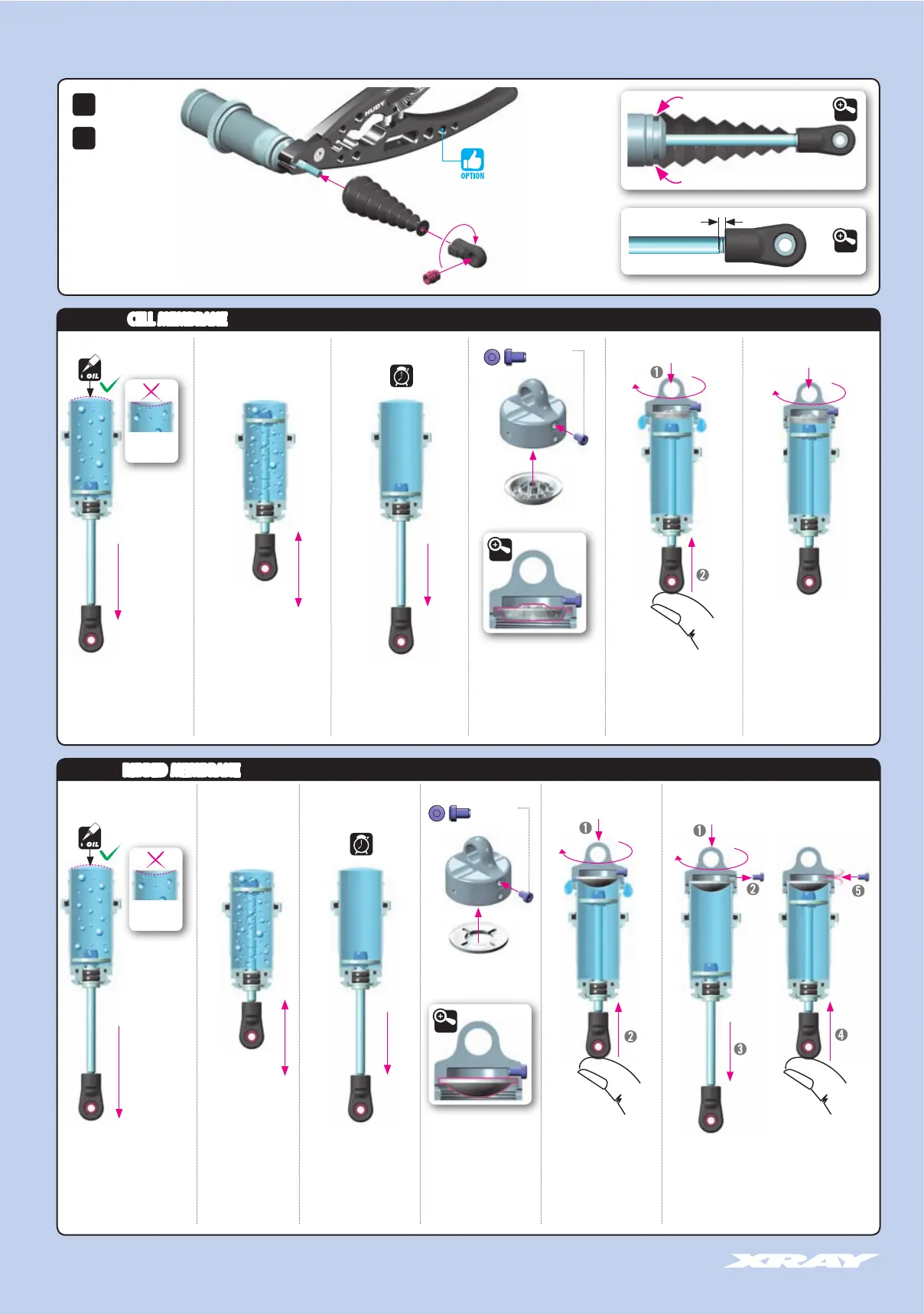

11. SHOCK ABSORBERS
FRONT (SHORT)
Oil 600cSt
FRONT (SHORT)
Oil 600cSt
REAR (LONG)
Oil 550cSt
REAR (LONG)
Oil 550cSt
Extend the shock shaft
completely. Fill the shock body
with the shock oil.
Extend the shock shaft completely.
Fill the shock body with the shock
oil.
Move the shock shaft up and
down a few times to release the
air bubbles trapped beneath
the piston.
Move the shock shaft
up and down a few
times to release the
air bubbles trapped
beneath the piston.
Orient the filled shock vertically
for several minutes with the
shock shaft fully extended.
The remaining air bubbles will
release.
Orient the filled shock
vertically for several
minutes with the shock
shaft fully extended. The
remaining air bubbles will
release.
Install the CELL shock membrane
and screw into the groove in the
upper shock cap.
Install the RIBBED shock
membrane and screw into
the groove in the upper
shock cap.
➊ Gently place the shock cap
assembly onto the filled shock
body. ➋ Slowly compress the
shock shaft towards the top
of the shock body and hold in
this position. Excess oil will be
expelled from the shock.
➊ Gently place the shock
cap assembly onto the filled
shock body. ➋ Slowly
compress the shock shaft
towards the top of the
shock body and hold in this
position. Excess oil will be
expelled from the shock.
➊
➊
➋
➋
➌
➌
➍
➍
➎
➎
➏
➏
3~5x
UP & DOWN
3~5x
UP & DOWN
for LOW GRIP
for BUMPY - HIGH GRIP
SHOCK TYPE:
CELL MEMBRANE
SHOCK TYPE: RIBBED MEMBRANE
FRONT SHOCKS
2x
REAR SHOCKS
2x
DETAIL
DETAIL
1 mm
DETAIL
DETAIL
4x
4x
CORRECT FILING
CORRECT FILING
INCORRECT
FILLING
INCORRECT
FILLING
Oil level after filling
Oil level after filling
Ribbed Membrane
Cell Membrane
908203
SCH M2x3
908203
SCH M2x3
Professional Multi-Tool
(HUDY #183011).
Follow the steps below to set the shock rebound to the default setting of 0%.
