DS800 Page 9

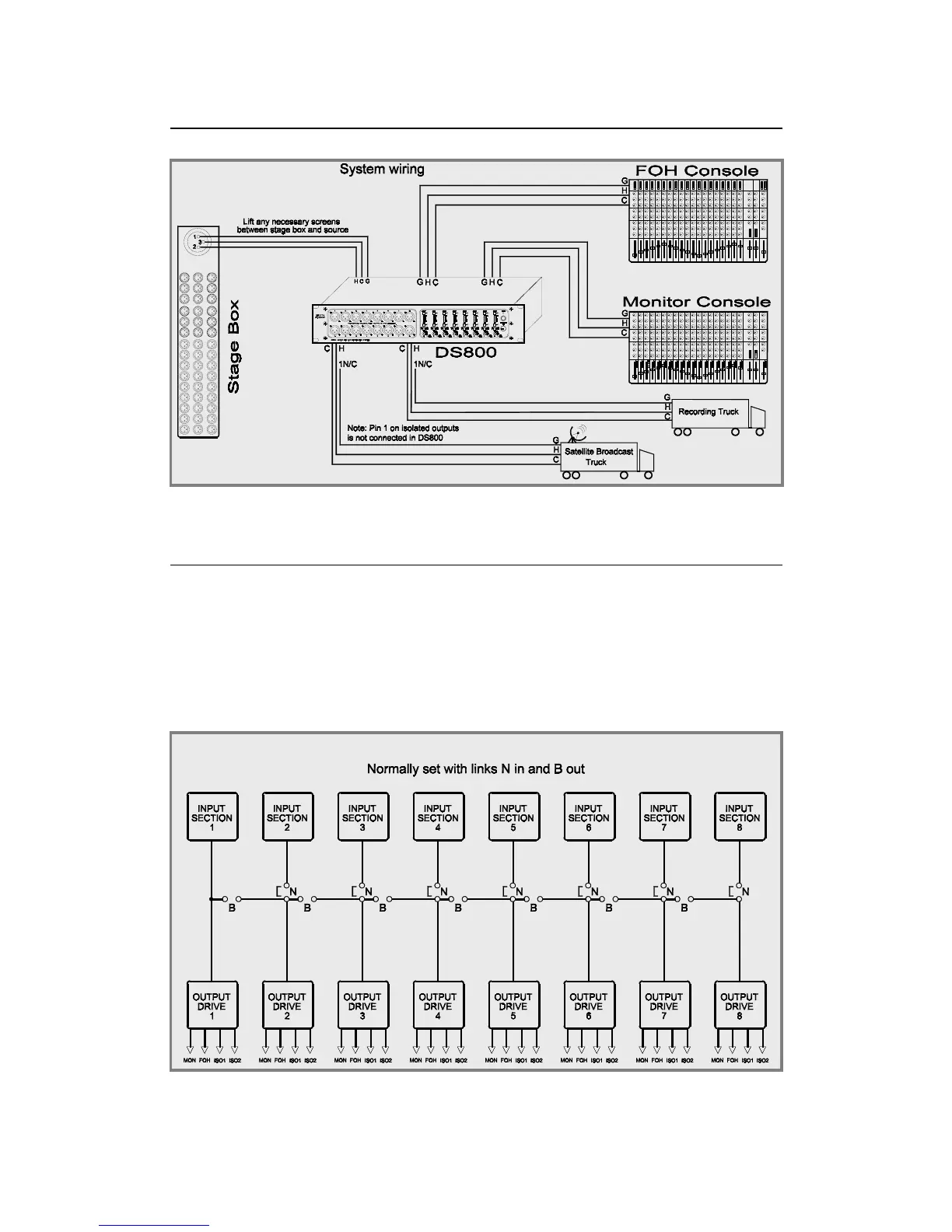

System Wiring
Bussing Option
In a standard factory supplied form the DS800 is set-up so that each of it’s 8 Inputs
is connected to it’s corresponding output drive section, which effectively has 4
outputs (two isolateds, FOH and MON). Jumper links that are assessable internally
are provided, that enable this configuration to be changed. For example the DS800
could be configured as a 2 Input device, where each input is effectively driving 16
outputs.
