DS800 Page 6

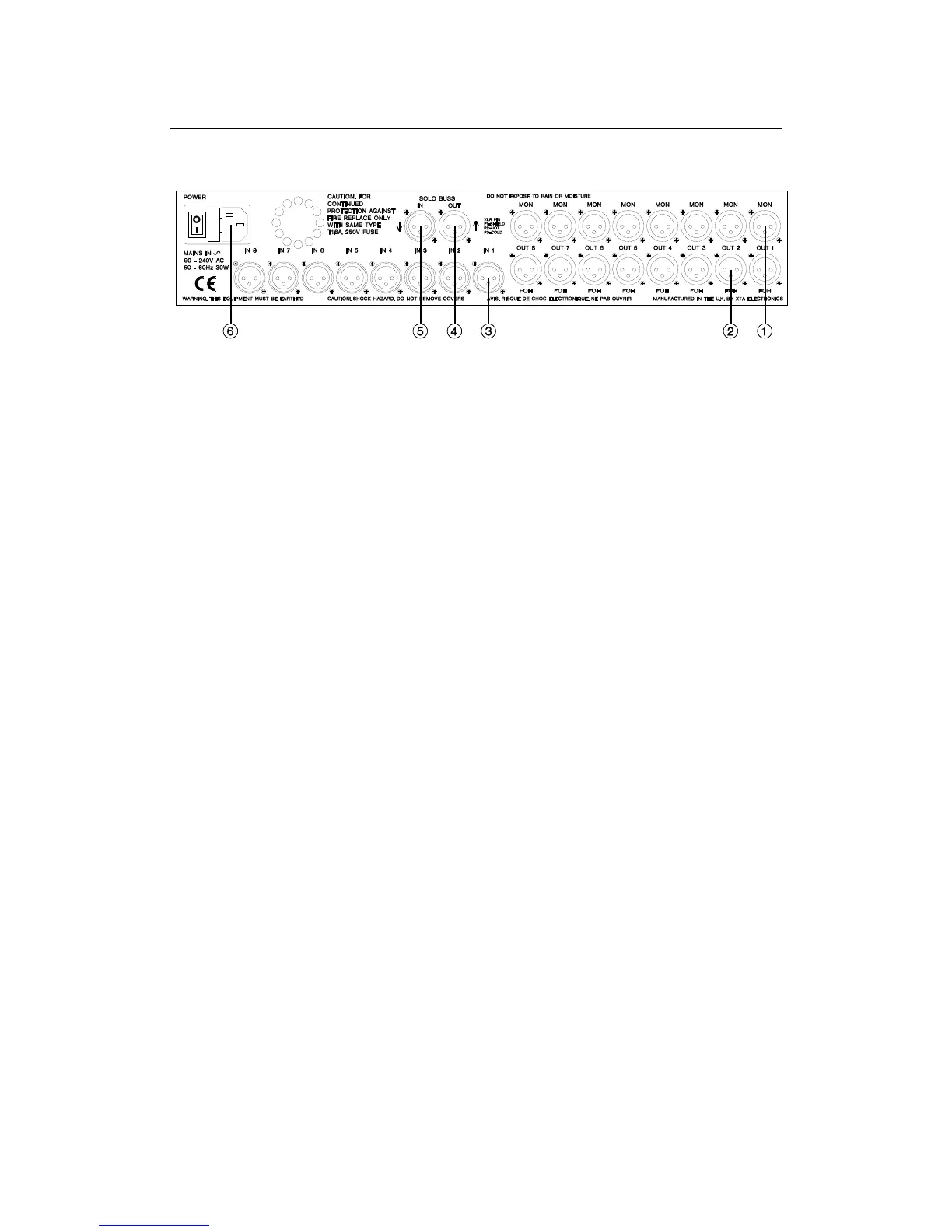

Rear Panel Functions
1. MON XLR – monitor output normally connected to the monitor desk. The
remote controlled pad is controlled from this output by sensing 48V phantom
power.
2. FOH XLR – Front Of House output normally connected to the front of house
desk.
3. Input XLR – multifunction input accepts dynamic and condenser microphones
and line level inputs.
4. Solo Bus Out XLR – used for multiple unit applications, normally connected to
the Solo Bus In XLR of the unit above in the rack. When configured in this way
the headphones can be inserted into the top unit giving the ability to listen to
any channel in the system.
5. Solo Bus In XLR – used for multiple unit applications, normally connected to
the Solo Bus Out XLR of the unit below in the rack. See 4 above.
6. Mains Inlet – combined IEC inlet, fuse and power switch.
