Page 17 DS8000 Operator’s Manual
Lifting grounds on pin 1 connections on inputs
By default, the inputs have their pin connections grounded, but this can be lifted on an
individual input basis, by
removing
the zero Ohm links on the
rear panel PCB
.

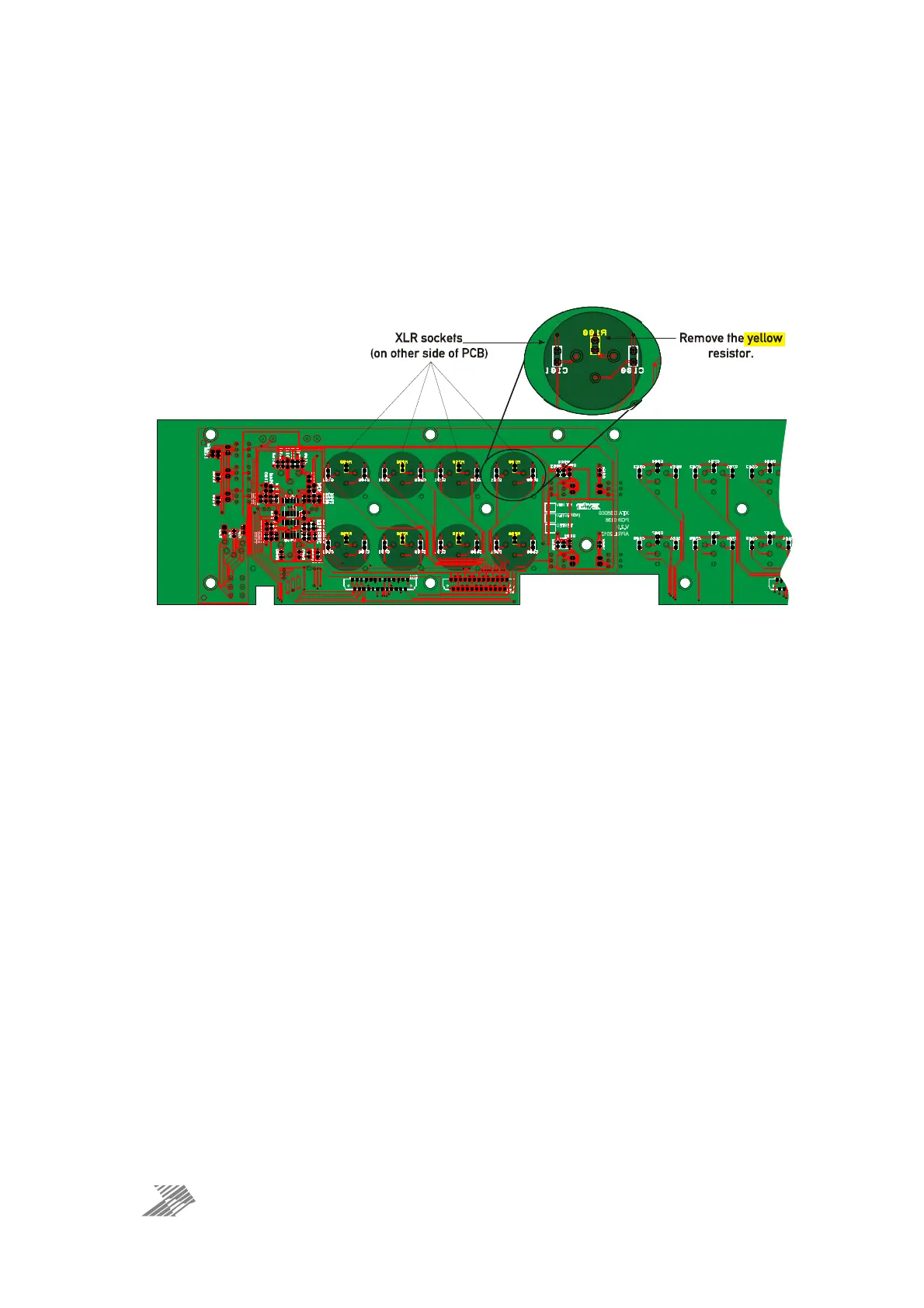

The diagram below shows the rear of the board, when viewed from behind
(front panel
facing
you) with the link positions by each input highlighted.
To Next Page
