MAXI
FUSE
50 AMP
REMOTE
GROUND
12 V
GREEN LED
NOISE GATE
YELLOW LED
LOW IMPEDANCE
ORANGE LED
THERMAL PROTECT
RED LED
POWER ON
SPEAKER OUTPUTS
LEFT RIGHT
LEFT RIGHT
INPUTS
LEFT RIGHT
OUTPUTS
–20
–10
0
+10
+20
+
+ POSITIVE
+ –
– NEGATIVE
–
BALANCED LINE
FAN
CROSSOVER
MODE JUMPERS:
CROSSOVER SIP SOCKETS
2 HP
3 LP
1 BYP
1 BYP
RCA OUTPUT AMPLIFIER
2 HP
3 LP
4 BNP
REMOTE SWITCHED 12 VOLTS
16 GAUGE OR LARGER
NOTE: ADD 50 AMP FUSE
AT POSITIVE TERMINAL OF
THE BATTERY
.
NOISE GATE THRESHOLD ADJUST: TURN CLOCKWISE TO INCREASE SENSITIVITY (GATE WILL OPEN WITH LESS INPUT SIGNAL)
NOISE GATE SWITCH: LEFT POSITION = ON; RIGHT POSITION = OFF
GROUND
– 8 GAUGE OR LARGER
SPEAKER WIRE – 14 GAUGE OR LARGER
POWER – 8 GAUGE OR LARGER
BRIDGED OUTPUT CONNECTION
ACCESSORY MODULE PORT: REMOVE JUMPERS (2) PRIOR TO INSTALLATION OF ACCESSORY MODULE.
JUMPERS MUST BE IN-PLACE WHEN MODULE IS NOT INSTALLED.
INPUT SENSITIVITY:TO ADJUST INPUT GAIN, MOVE JUMPER (IF NEEDED) – AND INSTALL IT IN THE LOCATION WHICH
MATCHES YOUR INPUT SIGNAL LEVEL
. REFER TO THE ILLUSTRATION BELOW FOR PROPER JUMPER LOCATION / LEVEL SETTING.
NOTE: –20 dB = 10V – 17V IS ONLY TO BE USED WITH BALANCED INPUT FROM A BALANCED SOURCE.
–20 dB = 10V– 17V
–10 dB = 3V – 8V 0 dB = 1V – 3V +10 dB = 300mV–1V +20dB= 100 – 300mV
CROSSOVER
FREQUENCY SELECTION:
TO CHANGE THE FREQUENCY
OF EITHER THE HIGH AND/OR
LOW PASS FILTERS, REMOVE
AND REPLACE THE FRE-
QUENCY MODULE (SIP)
LOCATED ON THE CIRCUIT
BOARD NEXT TO THE
CROSSOVER MODE JUMPERS.
NOTE THAT THE IDENTITY OF
THE HIGH & LOW PASS
SOCKETS ARE NOT MARKED
ON THE BOARD. REFER TO
THIS DRAWING FOR LOCA-
TION & THE CHART ON THE
BACK FOR THE AVAILABLE
SELECTION OF SIP / FRE-
QUENCY VALUES.
RCA OUTPUTS:
3 – LOW PASS
2 – HIGH PASS
1 – BYPASS
AMPLIFIER:
4 – BAND PASS
3 – LOW PASS
2 – HIGH PASS
1 – BYPASS
LOWPASSSIP
INDEPENDENT LEFT AND RIGHT AMPLIFIER GAIN
CONTROLS – ROTATE CLOCKWISE TO INCREASE SENSITIVITY.
XTANT TECHNOLOGIES 7676 SOUTH 46TH STREET PHOENIX, ARIZONA 85040 PHONE: 888.449.8268 FAX 602.431.8600
HIGH PASS SIP
BONDED FIN
HEATSINK

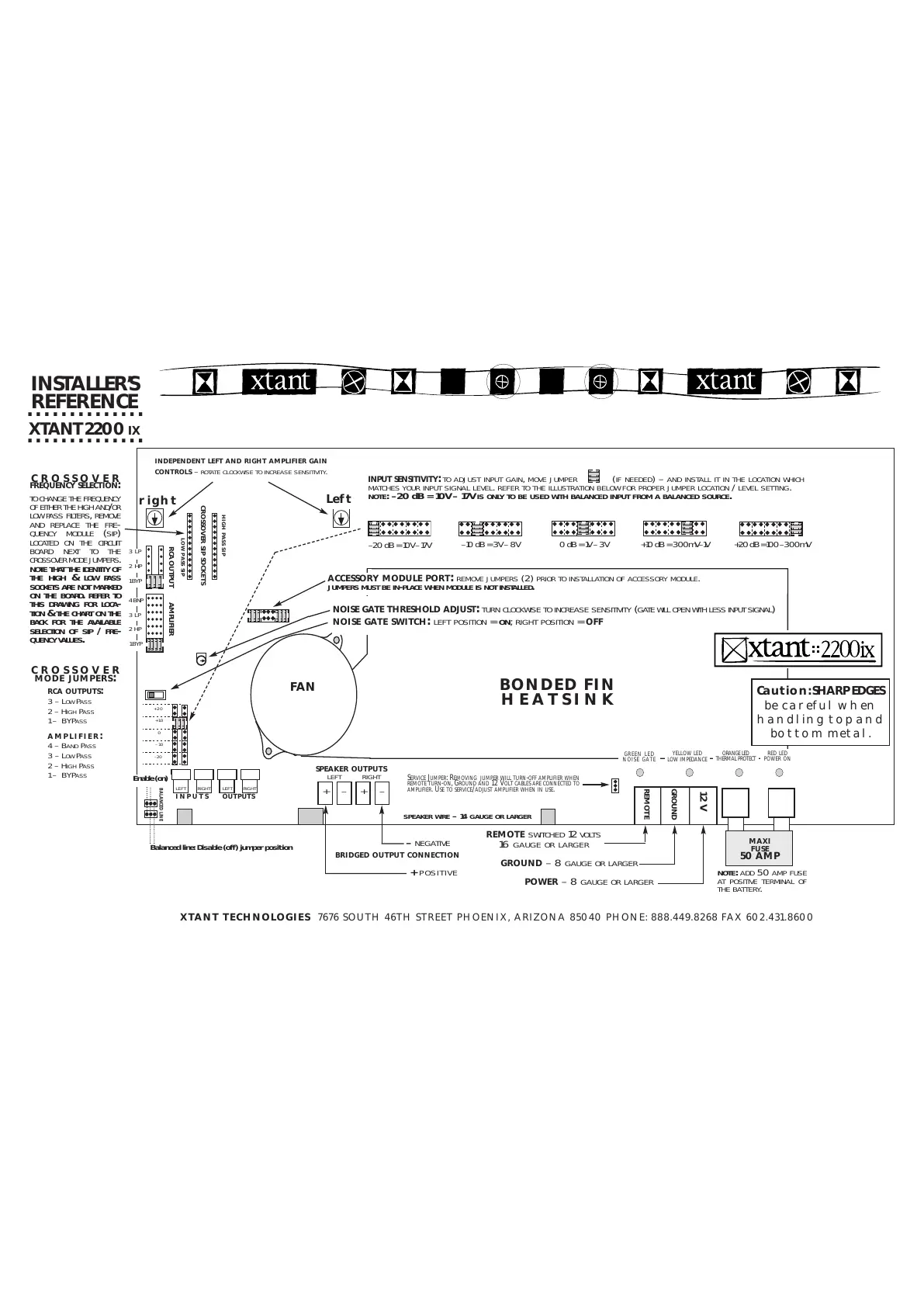

INSTALLER’S
REFERENCE
..............
XTANT 2200 IX
..............
Caution: SHARP EDGES
be careful when
handling top and
bottom metal.
Left
right
Balanced line: Disable (off) jumper position
Enable (on)
SERVICE JUMPER: REMOVING JUMPER WILL TURN-OFF AMPLIFIER WHEN
REMOTE TURN-ON, GROUND AND 12 VOLT CABLES ARE CONNECTED TO
AMPLIFIER. USE TO SERVICE/ADJUST AMPLIFIER WHEN IN USE.
