17
If you can feel the pedals slip while you are pedaling, even when the resistance is adjusted to the
highest level, the drive belt may need to be adjusted.

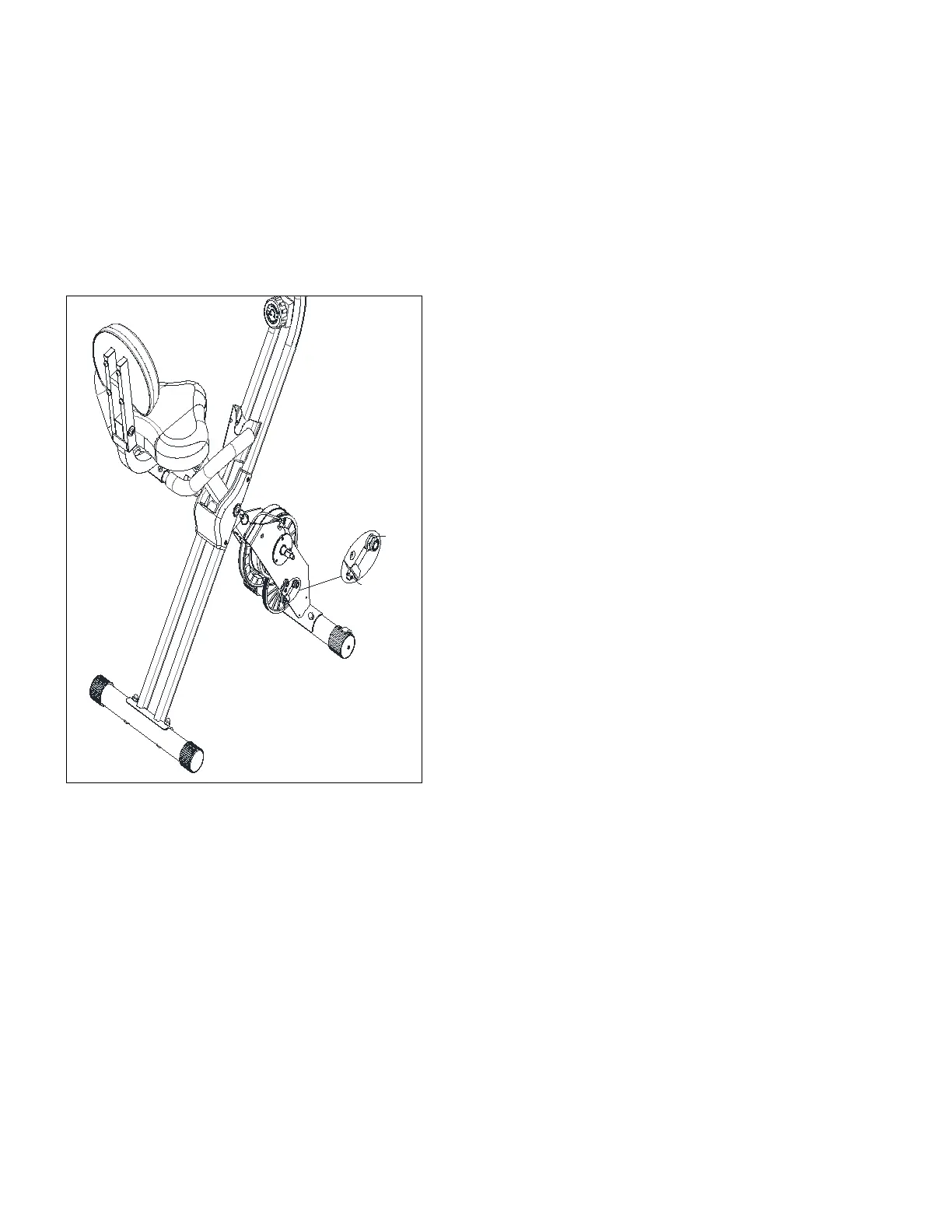

The first step to remove the end cap ( 57) and flange nut (49 ), then use the special tools remove the right /
left crank.
The second step to remove all self-tapping screws ( 32) on the left and right chain cover and then take off
the left and right chain cover ( 69&70) from main frame ( 1).
The third step is to loose or tighten the screw (53) to adjust the belt tension.
The last step is attach the left and right chain cover (69&70 ) & crank (15 ) on main frame.
