Xterra FB360 - FB360 Assembly Instructions

6

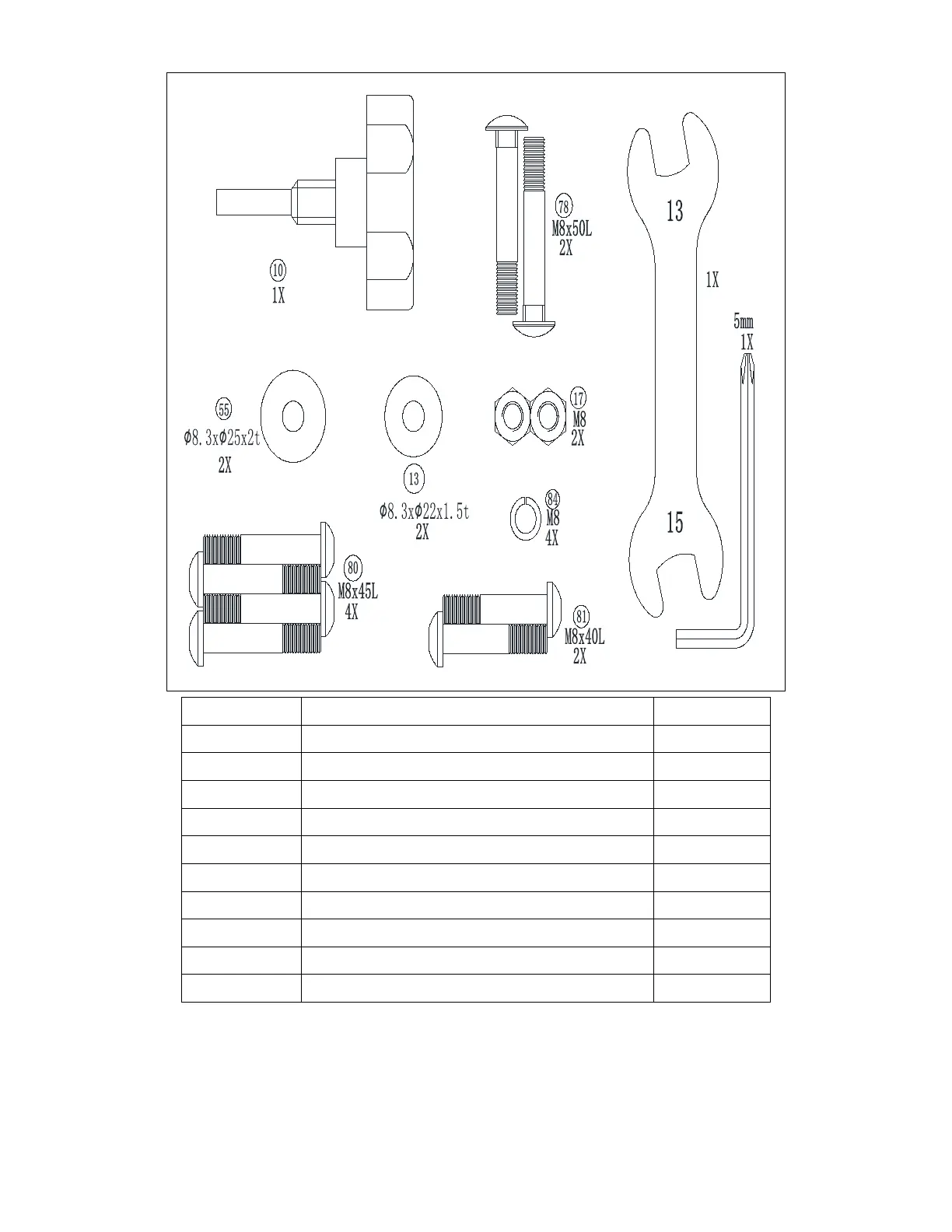

Part No.
Description
Q’ty
10
Adjustment Knob
1
17
Nylon Nut M8
2
13
Curved Washer φ8.3xφ22
2
78
Carriage Bolt M8x50L
2
81
Allen Screw M8x40L
2
55
Flat Washer φ8.3xφ25
2
84
Spring Washer
4
80
Allen Screw M8x45L
4
72
Allen Key
1
73
Hex head wrench
1
Note: Above parts are all the parts needed to assemble this machine. Before you start to assemble, please
check the hardware packing to make sure they are included.
FB360 ASSEMBLY INSTRUCTIONS
