10

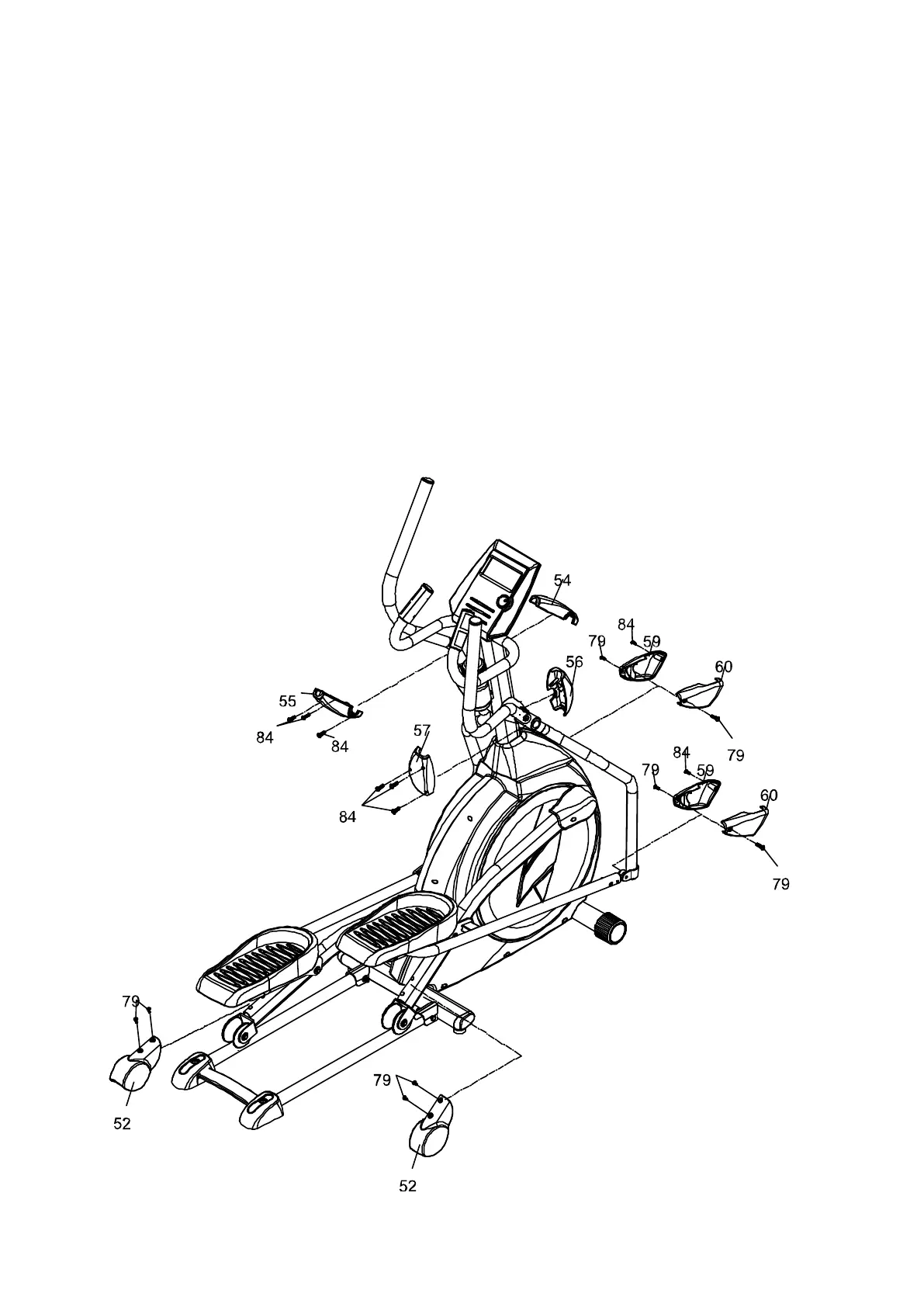

4 PLASTICS ASSEMBLY
1. Install the Connecting Arm Covers (L & R) (59 & 60) over the connection of the rod end
and Lower Handle Bars (L & R) (4 & 5) with 4pcs of M5 x 15m/m Phillips Head
Screws(79) and 2pcs of Ø 3.5 × 12m/m Sheet Metal Screws (84) by using the
Combination M5 Allen Wrench & Phillips Head Screw Driver (108).
2. Install the 2pcs of Slide Wheel Covers(52) using the 4pcs of M5x15m/m Phillips Head
Screws (79) by using the Combination M5 Allen Wrench & Phillips Head Screw Driver
(108).
3. Install the Front Handle Bar Covers (L & R) (54 & 56) and Rear Handle Bar Covers (L &
R) (55 & 57) over the Handle Bars axle connections with the 6pcs of Ø 3.5 × 12m/m
Sheet Metal Screws (84) by using the Combination M5 Allen Wrench & Phillips Head
Screw Driver (108).
PLEASE ENSURE ALL FASTENERS ARE TIGHT AFTER THE COMPONENTS HAVE
BEEN ASSEMBLED.
