Xterra FS5.25e Elliptical
11

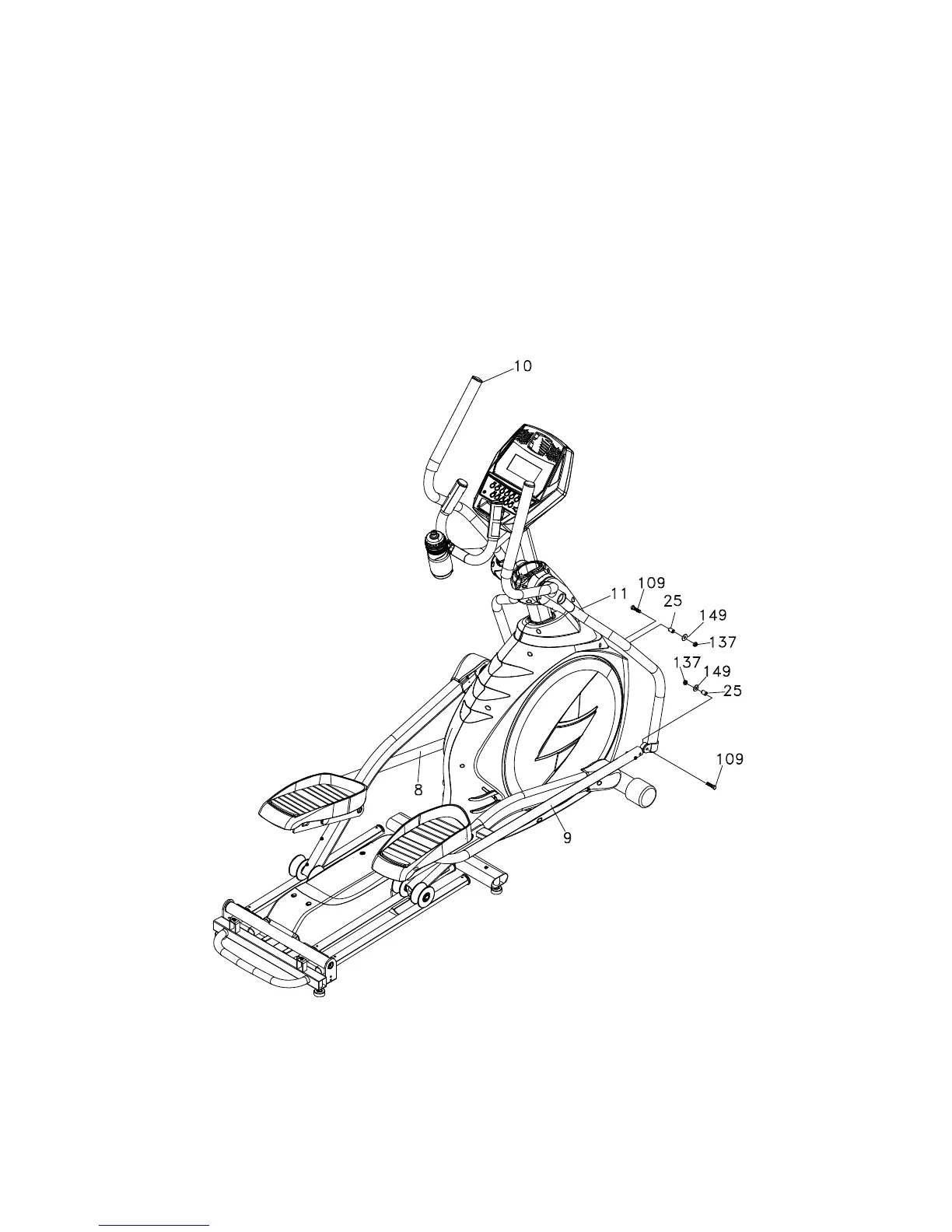

STEP 3: Connecting Arms
1. Remove the tie that holds the spacer (25) in the rod end located at the end of the right
connecting arm (9) and line up the rod end with the bracket at the bottom of the right swing arm
(11). Install the 5/16” X 1-1/4” bolt (109) through the bracket of the swing arm and then through
the rod end. Install the 5/16” flat washer (149) and 5/16” nut (137) on the bolt and tighten as
much as possible. Repeat this step for the left side.
