Xterra FS5.25e Elliptical
10

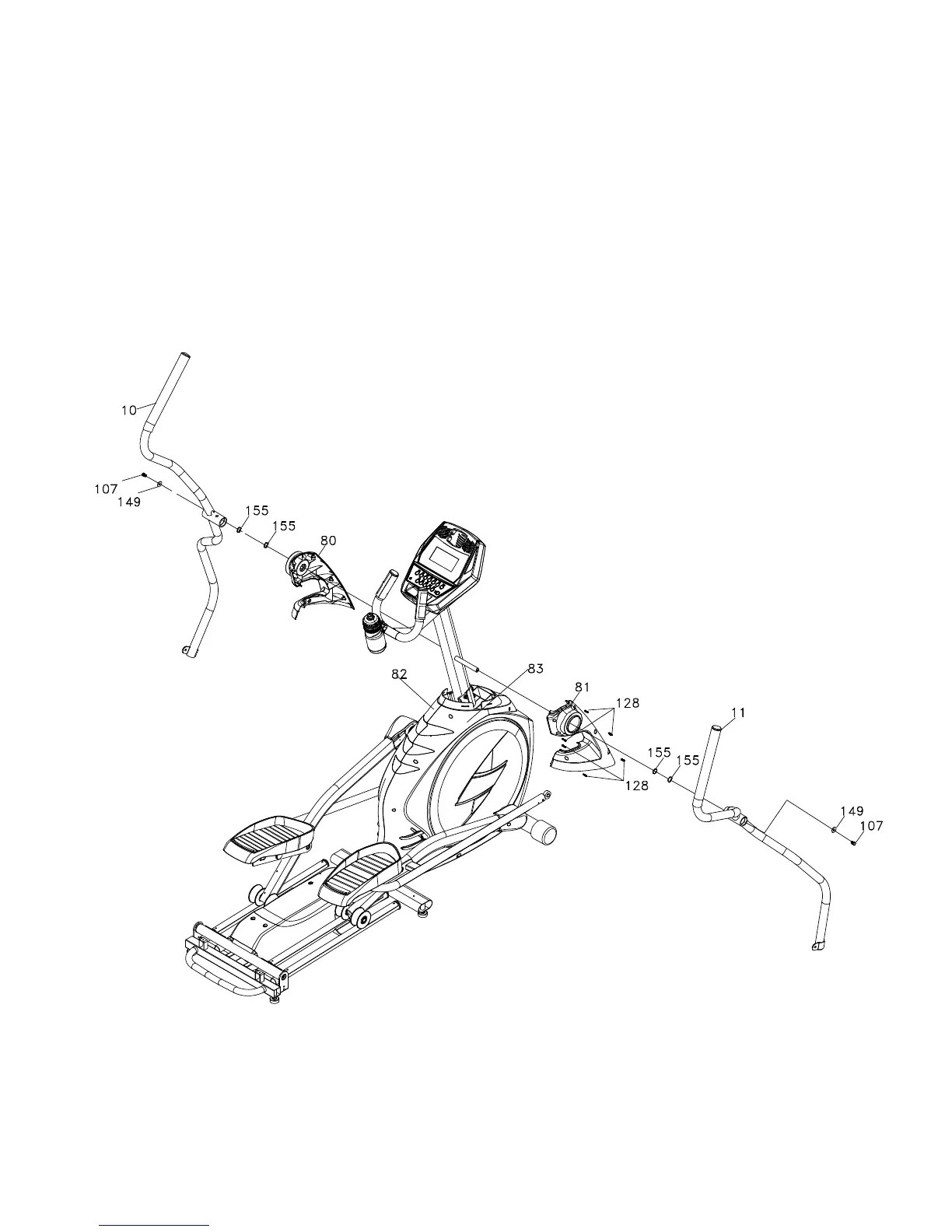

STEP 2: Swing Arms
1. Install the two halves of the console mast cover (80 & 81) with the six 3.5 X 12mm sheet metal
screws (128).
2. Install the wave washers (155) onto the swing arm axles. Slide the swing arms (4 Left, 5 Right)
onto the axles and secure with the two 5/16” X 15mm bolts (107) and 5/16” flat washers (149).
Do not force the swing arms onto the axle. They should slide on, but you may need to
jiggle them to get them lined up properly. The swing arms have been previously
installed at the factory so they do fit properly.
