Xterra FS5.5e / 5.7e Elliptical
10

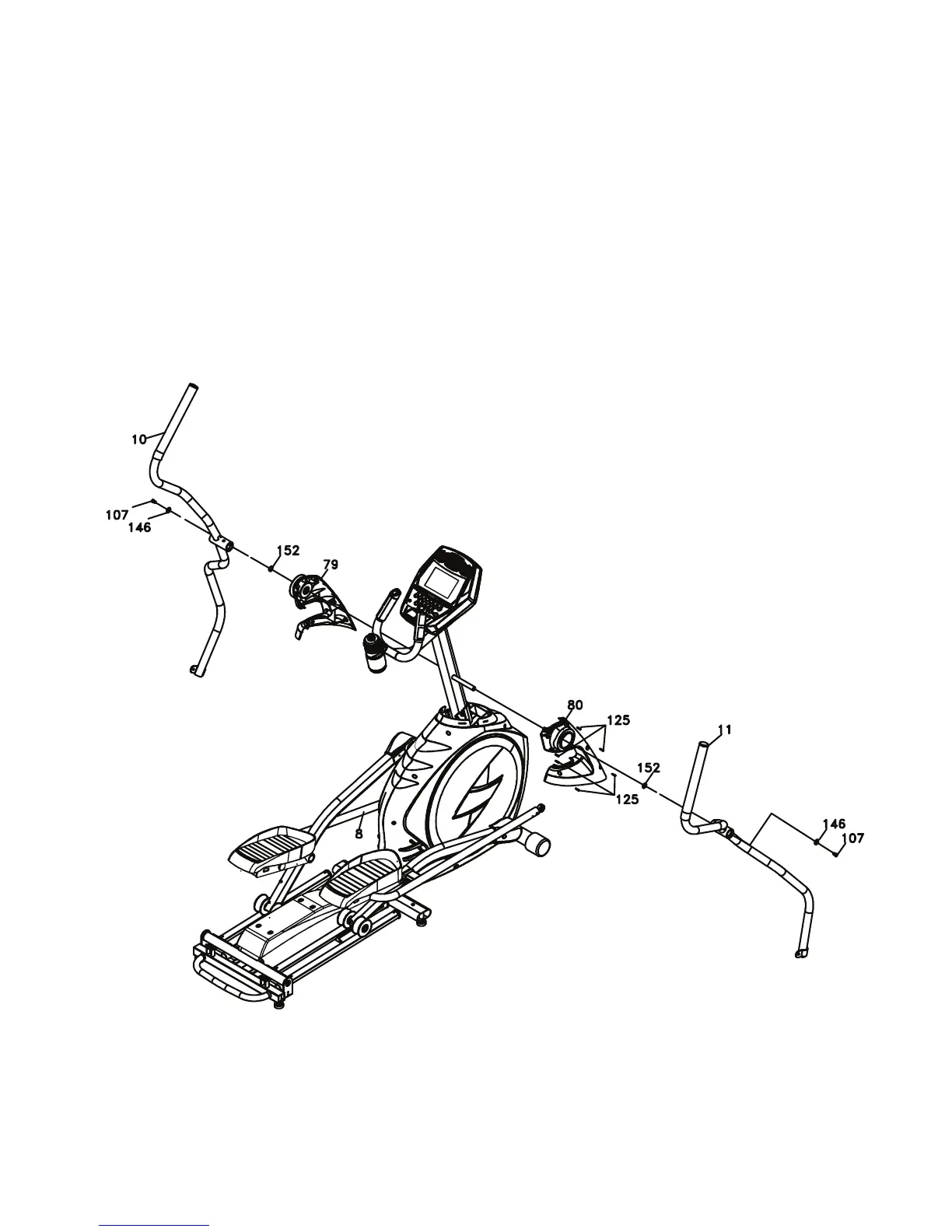

STEP 2: SWING ARM ASSEMBLY
1. Slide the left (79) and right (80) plastic covers over the shaft on each side of the console
mast (12). Then connect the left (79) and right (80) plastic covers together with six 3.5 x
12mm Sheet Metal Screws (125). Tighten with the Phillips Head Screw Driver (162).
2. Place one of Ø17 Wave Washer (152) onto the left and right Console Mast shafts. Slide
the left swing arm (10) onto the shaft all the way. Secure the arm with a 5/16” ×15mm
Hex Head Bolt (107) and one 5/16” ×23×1.5T Flat Washer (146); tighten with the 12mm
Wrench (163). Repeat this process on the right side with the right swing arm (11). Note:
make sure the arms are placed on their respective shafts as shown in the illustra-
tion.
