11 Xterra FS5.5e / 5.7e Elliptical

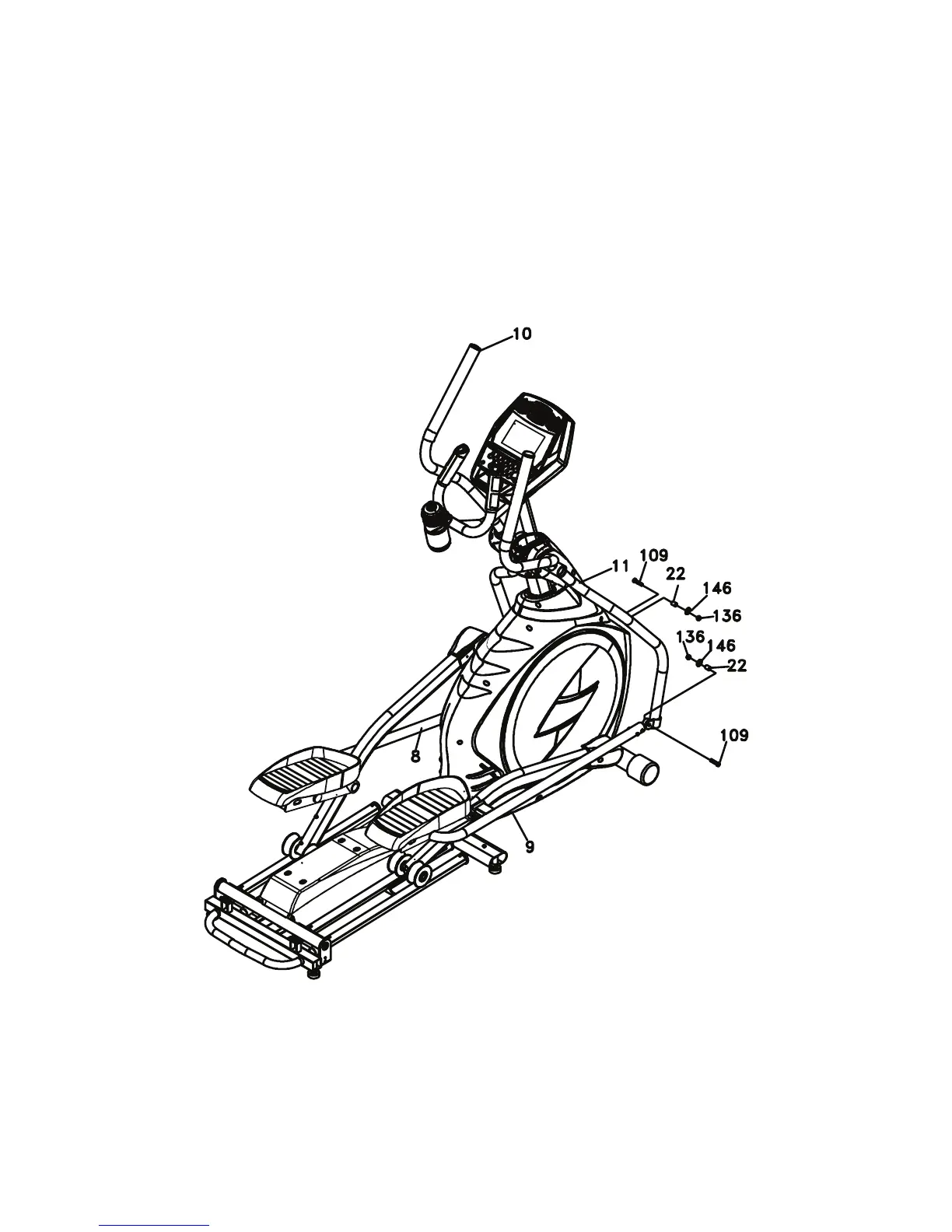

STEP 3: CONNECTING ARM ASSEMBLY
1. Untie the wire on the Rod End Bearing at the bottom of each swing arm; connect the left
Swing Arm (10) with the left Connecting Arm (8) and secure with a 5/16” ×1-1/4” Hex Head
Bolt (109), Rod End Sleeve (22), a 5/16” ×23x 1.5T Flat Washer (146), and a 5/16” ×7T
Nyloc Nut (136). Tighten using 13/14 mm (160) and 12mm (163) Wrenches. Repeat the
process for the Right Connecting Arm (9) and Right Swing Arm (11).
